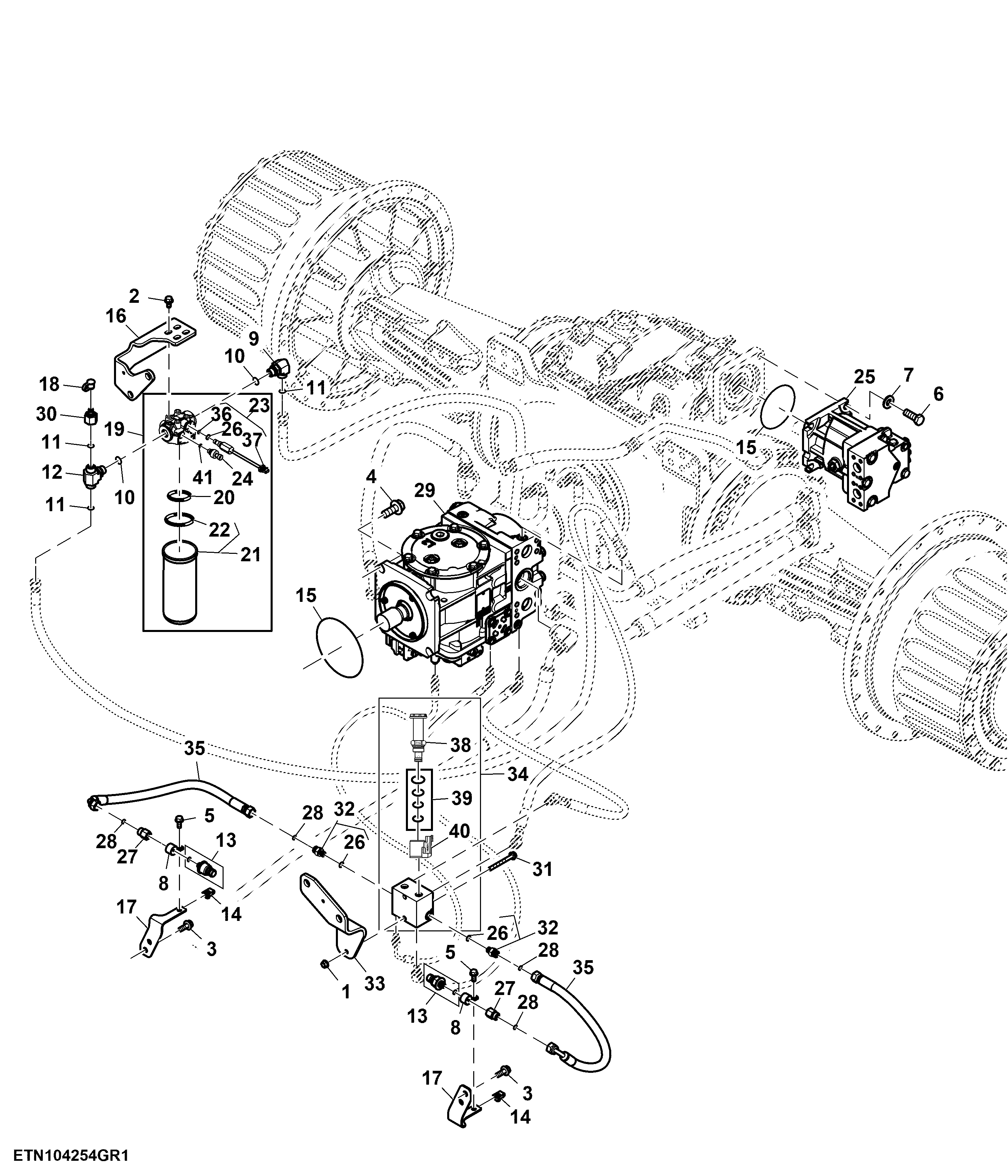

Hydraulic Pump, Steering Components, 130 cc ( - 917100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	2	Flange Nut	M8
2	19M7784	4	Screw	M10 X 20
3	19M7785	4	Screw	M10 X 25
4	19M7793	4	Screw	M16 X 40
5	19M7866	2	Screw	M8 X 20
6	19M8002	4	Cap Screw	M20 X 55
7	24M7242	4	Washer	21.400 X 42 X 5 mm
8	57M9856	2	Clamp	-
9	38H5018	1	Elbow Fitting	-
10	51M7045	2	O-Ring	19.300 X 2.200 mm
11	T77932	3	O-Ring	-
12	38H5124	1	Tee Fitting	-
13	AT355361	2	Pressure Sensor	-
14	M84971	2	Nut	-
15	R136314	2	O-Ring	-
16	R296949	1	Support	-
17	R340753	2	Bracket	-
18	R77175	1	Cover	-
19	RE577251	1	Filter Head	SUB FOR RE298963
20	R319585	1	Wear Ring	ORDER R567277
20	R567277	1	Ring	-
21	RE577250	1	Hydraulic Filter	SUB FOR RE310851
22	R319582	1	O-Ring	ORDER TR119745
22	TR119745	1	O-Ring	-
23	RE573828	1	Pressure Switch	SUB FOR RE70608
24	RE217077	1	Trans Oil Pressure Sensor	INCLUDES T77857
25	RE343426	1	Seal Kit	SUB FOR RE3220442
25	RE343426	1	Seal Kit	-
26	51M7041	3	O-Ring	11.300 X 2.200 mm
27	R340744	2	Adapter Fitting	-
28	T77613	4	O-Ring	-
29	RE578076	1	Hydraulic Pump	SUB FOR RE558169
30	RE60702	1	Diagnostic Coupling	-
31	19M8874	2	Screw	M8 X 75
32	38H5002	2	Adapter Fitting	-
33	R553064	1	Support	SUB FOR R543025
34	RE560498	1	Elec-Hyd Proportional Valve	INCLUDES (2) RE341385, (2) RE341386 AND (2) RE341387
35	RE565530	2	Hydraulic Hose	-
36	R27976	1	O-Ring	-
37	57M7254	1	Elec. Connector Housing	USE WITH (2) R104846 AND (2) 57M7258_Seals
37	57M7289	1	Elec.Connect Locking Device	-
38	RE341385	2	Elec-Hyd Proportional Valve	-
39	RE341387	2	Seal Kit	-
40	RE341386	2	Solenoid Valve Coil	-
41	T77857	1	O-Ring	-

Hydraulic Pump, Steering Components, 130 cc ( - 917100)
