Hydraulic Pump 100 cc, Steering Components ( - 917100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT355361	2	Pressure Sensor	-
2	M84971	2	Nut	-
3	RE577251	1	Filter Head	SUB FOR RE298963
4	R319585	1	Wear Ring	ORDER R567277
4	R567277	1	Ring	-
5	RE577250	1	Hydraulic Filter	SUB FOR RE310851
6	R319582	1	O-Ring	ORDER TR119745
6	TR119745	1	O-Ring	-
7	RE573828	1	Pressure Switch	SUB FOR RE70608
8	51M7041	3	O-Ring	11.300 X 2.200 mm
9	RE217077	1	Trans Oil Pressure Sensor	INCLUDES T77857
10	R340744	2	Adapter Fitting	-
11	RE60702	1	Diagnostic Coupling	-
12	R296949	1	Support	-
13	R340753	2	Bracket	-
14	R77175	1	Cover	-
15	T34448	2	O-Ring	-
16	14M7298	2	Flange Nut	M8
17	19M6332	8	Cap Screw	M14 X 35
18	19M7784	4	Screw	M10 X 20
19	19M7785	4	Screw	M10 X 25
20	19M7866	2	Screw	M8 X 20
21	24M7456	8	Washer	15 X 28 X 2.500 mm
22	57M9856	2	Clamp	-
23	38H5018	1	Elbow Fitting	-
24	RE566401	1	Hydraulic Motor	-
25	19M8874	2	Screw	M8 X 75
26	38H5124	1	Tee Fitting	-
27	51M7045	2	O-Ring	19.300 X 2.200 mm
28	T77932	3	O-Ring	-
29	R553064	1	Support	SUB FOR R543025
30	RE560498	1	Elec-Hyd Proportional Valve	INCLUDES (2) RE341385, (2) RE341386 AND (2) RE341387
31	RE341385	2	Elec-Hyd Proportional Valve	-
32	RE341386	2	Solenoid Valve Coil	-
33	RE565530	2	Hydraulic Hose	-
34	RE578075	1	Hydraulic Pump	SUB FOR RE320443
35	38H5002	2	Adapter Fitting	-
36	T77613	4	O-Ring	-
37	R27976	1	O-Ring	-
38	57M7254	1	Elec. Connector Housing	USE WITH (2) R104846 AND (2) 57M7258_Seals
38	57M7289	1	Elec.Connect Locking Device	-
39	RE341387	2	Seal Kit	-
40	T77857	1	O-Ring	-

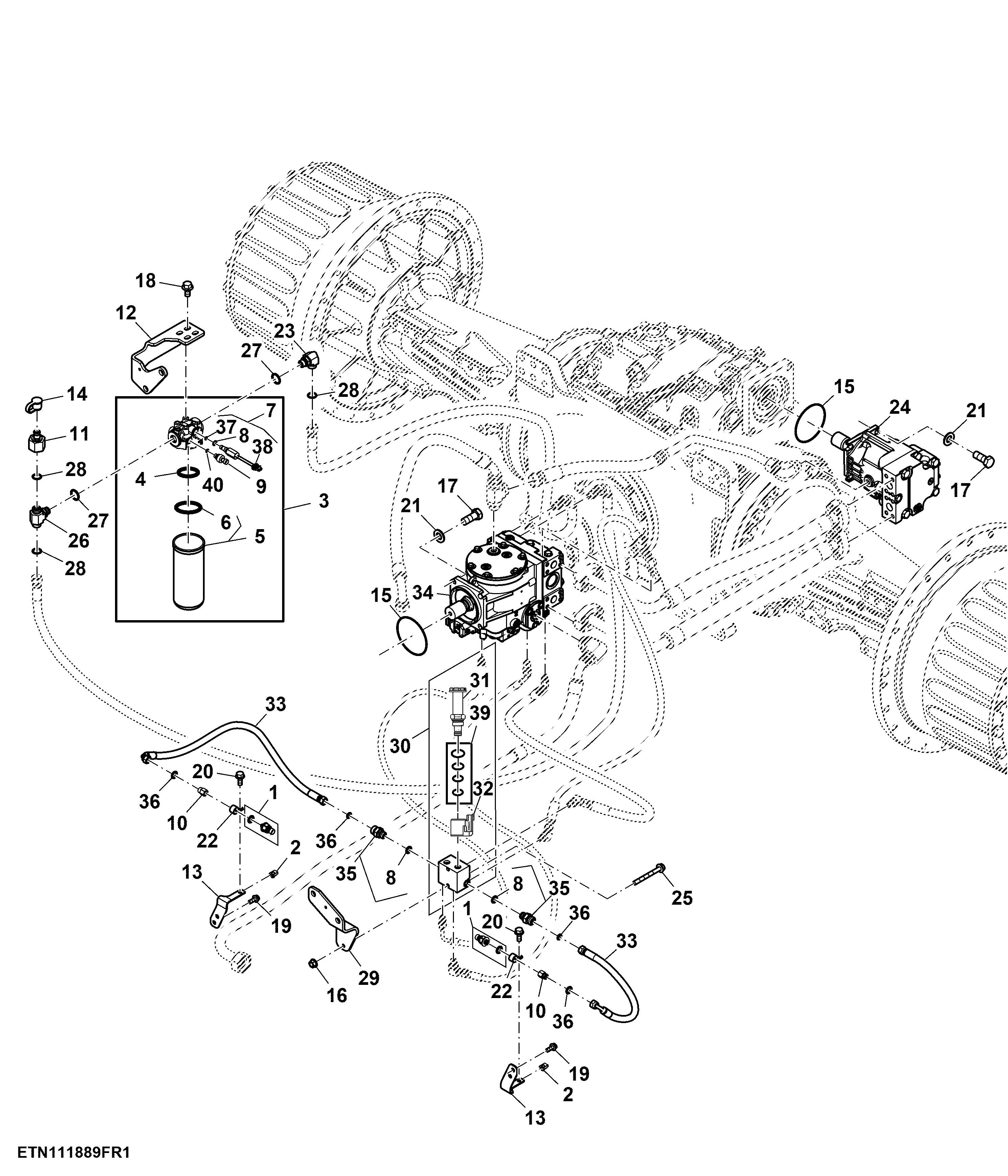

Hydraulic Pump 100 cc, Steering Components ( - 917100)
