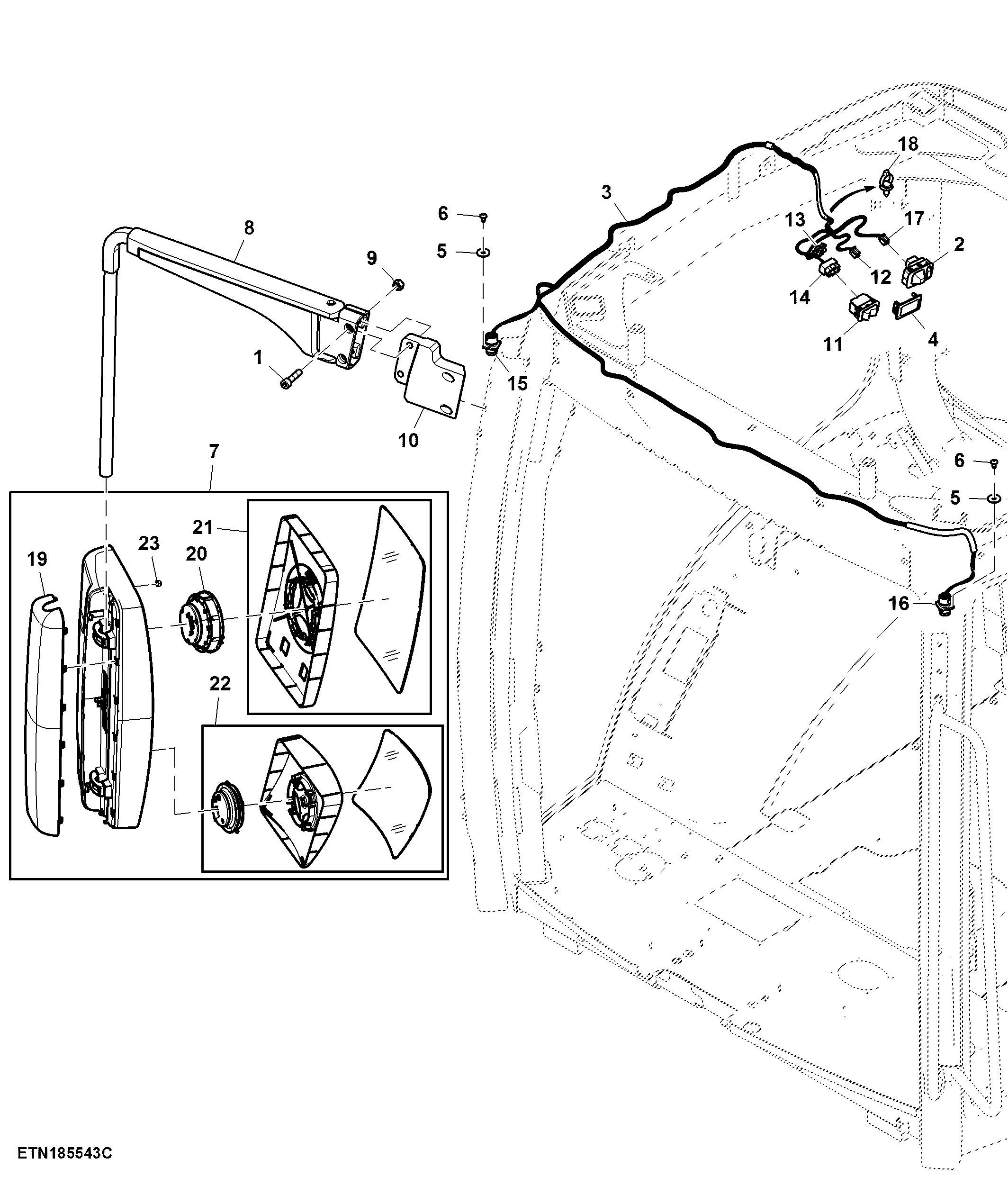

Fixed External Mirror, Power, RH (917101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9803	2	Socket Head Screw	M10 X 40
2	RE236245	1	Switch	-
3	RE307735	1	Roof Wiring Harness	-
4	R271566	1	Plug	-
5	24M7100	4	Washer	6.600 X 22 X 2 mm
6	37M7382	4	Screw	-
7	RE574883	1	Rear View Mirror	-
8	RE579365	1	Support	-
9	14M7274	2	Nut	M10
10	R564642	1	Bracket	SUB FOR R563544
11	AL181124	1	Toggle/Rocker Switch	-
12	57M9078	1	Elec. Connector Housing	S308, Mirror Extend Switch
12	RWA11110	1	Repair Wire Assembly	-
13	RWA11083	1	Repair Wire Assembly	-
13	57M7289	1	Elec.Connect Locking Device	-
13	57M7254	1	Elec. Connector Housing	M103, Automatic Temperature Control Circulation Blower Motor Cavity A, B
14	57M7896	1	Electrical Connector Assy	S306, Mirror heater Switch Cavity U, Y, Z
14	RWA10602	1	Repair Wire Assembly	-
15	57M8205	1	Elec. Connector Housing	X950, Right Power Mirror Interconnect
15	RWA11178	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
16	57M8205	1	Elec. Connector Housing	X951, Left Power Mirror Interconnect
16	RWA11178	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
17	57M9078	1	Elec. Connector Housing	S307, Mirror Adjustment Switch
17	RWA11110	1	Repair Wire Assembly	-
18	RE258807	1	Tie Band	-
19	L214622	1	Cover	-
20	AL225537	1	Actuator	-
21	AL225535	1	Rear View Mirror	-
22	AL225536	1	Rear View Mirror	-
23	14M7165	8	Lock Nut	M6

Fixed External Mirror, Power, RH (917101 - )
