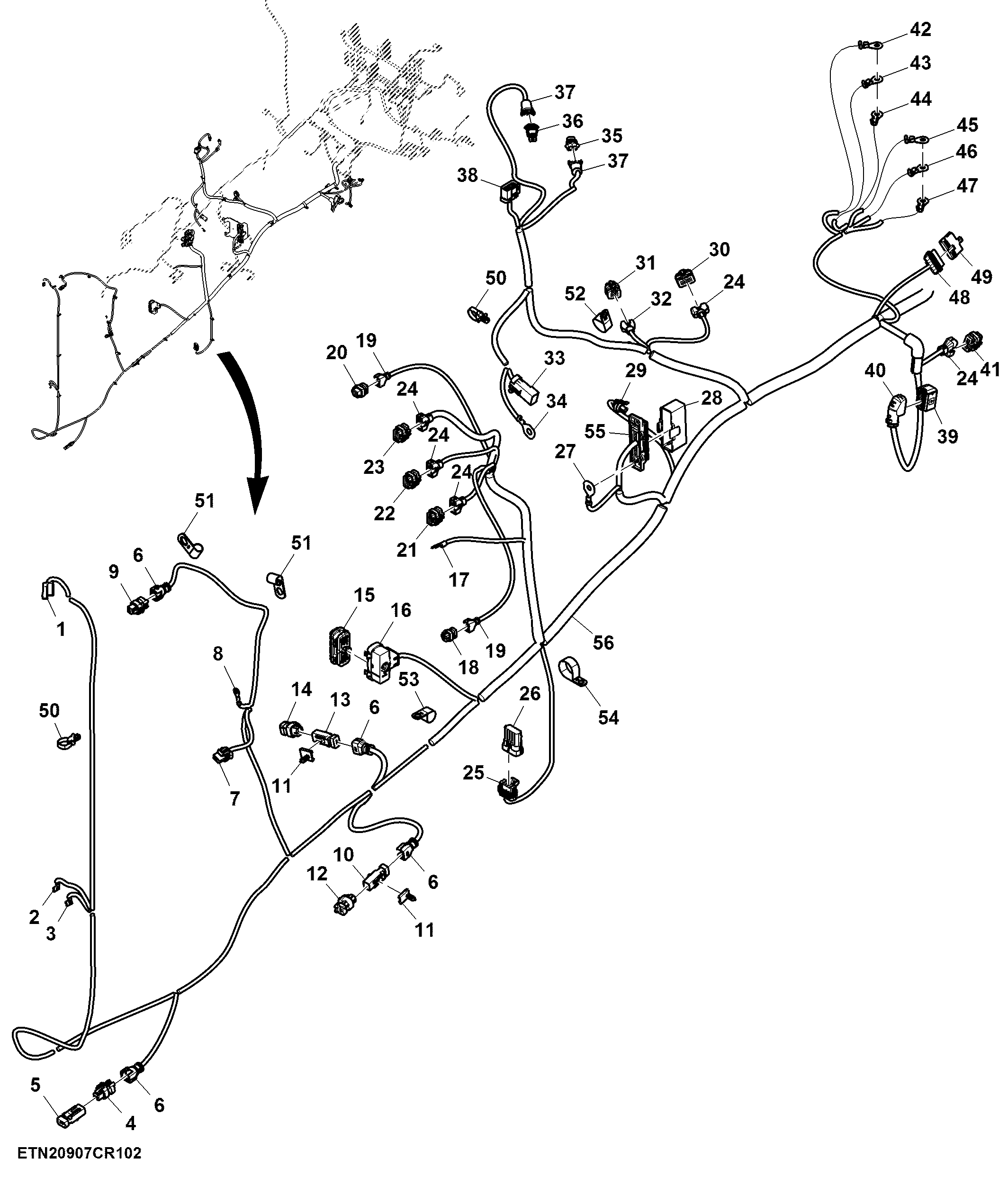

Chassis Wiring Harness, 13.5 L, FT4 Engine (2/4) ( - 917100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RWA11076	2	Repair Wire Assembly	Cavity B, A
1	57M8812	1	Elec. Connector Housing	Y101_13.5L
2	57M9238	1	Elec. Connector Terminal	-
3	57M9238	1	Elec. Connector Terminal	-
4	RWA11026	2	Repair Wire Assembly	Cavity 2, 1
4	57M9726	1	Elec. Connector Housing	X040A
5	57M9730	1	Elec. Connector Housing	-
6	57M9837	4	Elec. Connector Accessory	-
7	57M7309	1	Elec. Connector Housing	S501-13-5L
7	57M7306	1	Elec.Connect Locking Device	-
7	RWA11089	2	Repair Wire Assembly	Cavity B, A
8	57M8873	1	Elec. Connector Terminal	-
9	57M9729	1	Elec. Connector Housing	B5303
9	RWA11026	2	Repair Wire Assembly	Cavity 1, 2
10	57M9776	1	Elec. Connector Housing	A912
11	57M9939	2	Elec. Connector Accessory	-
12	57M11134	1	Elec. Connector Housing	-
13	57M9779	1	Elec. Connector Housing	E502_13.L, USE WITH RE577029
13	RWA11025	2	Repair Wire Assembly	Cavity 2, 1
14	57M9775	1	Elec. Connector Housing	USE WITH RE577029
15	RE538505	1	Elec. Connector Accessory	A5505-J3-13-5L_FT4
15	RWA11027	21	Repair Wire Assembly	Cavity 1, 2, 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 30, 32, 36, 43, 44, 45, 50, 52, 53
16	R528123	1	Elec. Connector Accessory	-
17	57M8937	1	Elec. Connector Terminal	-
18	RWA11029	4	Repair Wire Assembly	Cavity 1, 2, 3, 4
18	57M9819	1	Elec. Connector Housing	X5046_13.5L
19	57M9839	1	Elec. Connector Accessory	-
20	57M9786	1	Elec. Connector Housing	X5073_13-5L
20	RWA11029	6	Repair Wire Assembly	Cavity 3, 2, 4, 5, 1, 6
21	57M9800	1	Elec. Connector Housing	X5039A
21	RWA11027	11	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 11, 12
22	57M9801	1	Elec. Connector Housing	X5037_13.5L
22	RWA11027	9	Repair Wire Assembly	Cavity 2, 3, 5, 6, 8, 9, 10, 11, 12
23	RWA10614	1	Repair Wire Assembly	Cavity 1
23	RWA11029	2	Repair Wire Assembly	Cavity 3, 4
23	RWA11026	6	Repair Wire Assembly	Cavity 5, 9, 10, 11, 12, 6
23	RWA11027	2	Repair Wire Assembly	Cavity 7, 2
23	57M9802	1	Elec. Connector Housing	X5038_13.5L
24	57M9844	5	Elec. Connector Accessory	-
25	57M7262	1	Elec. Connector Housing	B921
25	RWA11083	3	Repair Wire Assembly	Cavity C, E, F
26	57M9213	1	Elec. Connector Housing	-
27	57M11530	1	Elec. Connector Terminal	-
28	RE554428	1	Cover	FEXX-1
28	RWA11045	7	Repair Wire Assembly	Cavity B3, B4, B5, B6, B7, B9, B10
29	57M8625	1	Elec. Connector Housing	B717
29	RWA10703	3	Repair Wire Assembly	Cavity 1, 2, 3
29	57M8624	1	Elec.Connect Locking Device	-
30	57M9800	1	Elec. Connector Housing	X982A
30	RWA11029	12	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
31	57M9792	1	Elec. Connector Housing	B249
32	57M9842	1	Elec. Connector Accessory	-
32	RWA11029	5	Repair Wire Assembly	Cavity 1, 2, 5, 7, 8
33	57M10302	1	Elec. Connector Housing	X570_X1
33	RWA11136	5	Repair Wire Assembly	Cavity 1, 2, 3, 4, 6
33	RWA11136	1	Repair Wire Assembly	Cavity 5
34	-	1	Part 57	-
35	57M7254	1	Elec. Connector Housing	B5009_13-5L
35	RWA11083	2	Repair Wire Assembly	Cavity A, B
36	57M7254	1	Elec. Connector Housing	B5010_13.5L
36	RWA11083	2	Repair Wire Assembly	Cavity B, A
37	57M9556	2	Elec. Connector Accessory	-
38	57M10297	1	Elec. Connector Housing	X180A
38	RWA11137	12	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 9, 10, 11, 12, 13, 14
39	RWA10718	10	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
39	57M10958	1	Elec. Connector Housing	B5501
40	57M11439	1	Elec. Connector Accessory	-
41	57M9800	1	Elec. Connector Housing	X340A_13.5L
41	RWA11029	11	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
42	-	1	Part 70	-
43	-	1	Part 71	-
44	-	1	Part 72	-
45	-	1	Part 73	-
46	-	1	Part 74	-
47	-	1	Part 75	-
48	57M9406	1	Elec. Connector Accessory	SPK01
48	RWA11089	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
49	57M8611	1	Electrical Connector Assy	-
50	57M10233	18	Tie Band	-
51	T102934	5	Clamp	-
52	57M9857	1	Clamp	-
53	57M9856	1	Clamp	-
54	57M9859	1	Clamp	-
55	RE554429	1	Fuse Holder	-
56	RE577029	1	Chassis Wiring Harness	SUB FOR RE573992 OR RE566799
56	RE580164	1	Chassis Wiring Harness	-

Chassis Wiring Harness, 13.5 L, FT4 Engine (2/4) ( - 917100)
