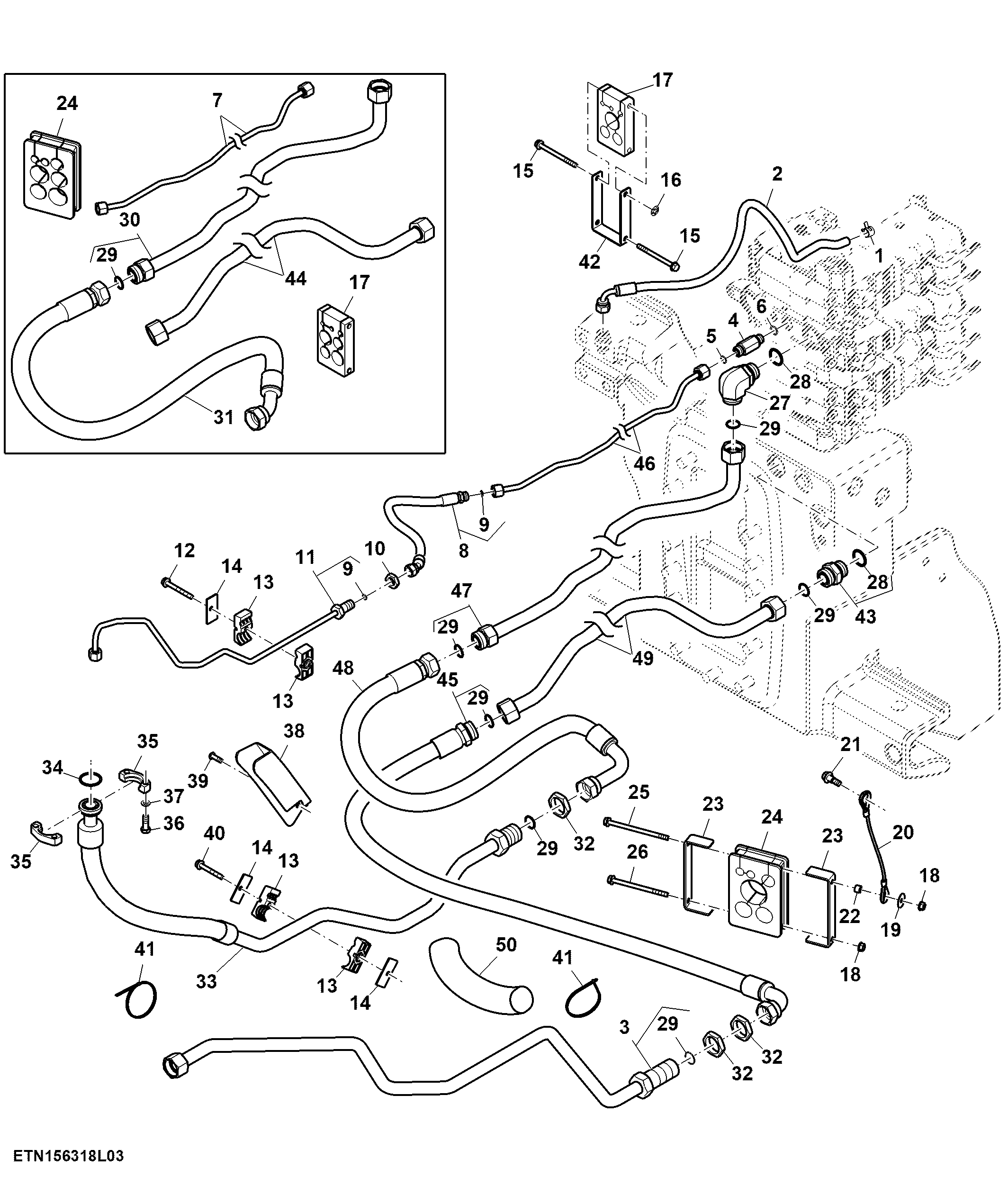

SCV Lines, High Flow, PST, Double Reduction Axle, Hitch W/ Quick Coupler (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R202160	1	Clamp	-
2	RE342577	1	Hydraulic Hose	Hitch Zero Pressure Drain
3	RE577785	1	Oil Line	SCV Pressure Use Fitting RE258123 or 38H5256 to Connect Priority Valve SUB FOR RE567480
4	38H5153	1	Adapter Fitting	-
5	T77857	1	O-Ring	-
6	51M7043	1	O-Ring	15.300 X 2.200 mm
7	RE342123	1	Oil Line	Rear SCV Load Sense, Mid Inlet ORDER RE574744
8	RE597299	1	Hydraulic Hose	Load Sense Through Gudgeon SUB FOR APPL RE567489
9	T77613	2	O-Ring	-
10	38H5091	1	Nut	11/16"
11	RE580039	1	Oil Line	Pump Load Sense SUB FOR RE567483
12	19M7803	1	Screw	M8 X 70
13	R129325	4	Clamp	-
14	H112567	3	Plate	-
15	19M7970	2	Screw	M8 X 100
16	M84309	1	Nut	-
17	R544994	1	Block Clamp	USE WITH RE566035
17	R552359	1	Block Clamp	USE WITH RE574740
18	14M7573	2	Flange Nut	M8
19	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"
20	RE570861	1	Cable	-
21	R519426	1	Screw	-
22	H159104	1	Washer	9.250 X 13.720 X 9.520 mm (0.364" X 0.540" X 3/8")
23	R544978	2	Cover	-
24	R548827	1	Clamp	USE WITH RE566040
24	R552360	1	Clamp	USE WITH RE574610 OR RE574740
25	19M9915	1	Screw	M8 X 130
26	19M8006	1	Screw	M8 X 120
27	38H5020	1	Elbow Fitting	-
28	51M7048	2	O-Ring	29.600 X 2.900 mm
29	T76938	6	O-Ring	-
30	RE566040	1	Line	Rear SCV Pressure ORDER RE574743
31	RE566030	1	Hydraulic Hose	Pressure High Flow SCV ORDER RE574610
32	38H5095	3	Nut	1-7/16"
33	RE576775	1	Hydraulic Hose	Piston Pump, SCV Pressure INCLUDES T76938 AND T78313; SUB FOR RE567138
34	T78313	1	O-Ring	-
35	H61354	2	Flange Fitting	-
36	19M7662	4	Cap Screw	M10 X 30
37	24M7106	4	Washer	10 X 18 X 2.500 mm
38	R543914	1	Guide	-
39	21M7580	2	Socket Head Screw	M8 X 25
40	19M7801	1	Screw	M8 X 60
41	R76477	2	Tie Band	-
42	R344704	1	Cover	-
43	38H5006	1	Adapter Fitting	-
44	RE566035	1	Line	Rear Pressure ORDER RE574740
45	RE587405	1	Hydraulic Hose	SCV Supply SUB FOR RE566028
46	RE574744	1	Oil Line	Rear SCV Load Sense, Mid Inlet
47	RE574743	1	Line	Rear SCV Pressure
48	RE587428	1	Hydraulic Hose	Pressure High Flow SCV SUB FOR RE574610
49	RE574740	1	Line	Rear Pressure
50	R551064	1	Hose Guard	-
