Manifold, Front Suspension Leveling Control Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE576798	1	Manifold	SUB FOR RE573496
2	AT333814	1	Solenoid Valve Coil	-
3	AH228044	2	Solenoid Valve Coil	12 V
4	N305926	1	Orifice	-
5	R26448	8	O-Ring	-
6	R321850	1	Orifice	-
7	AH230746	2	Solenoid Valve Coil	-
8	AN207183	2	Check Valve	-
9	AN207184	2	Seal Kit	-
10	AT333808	1	Solenoid Valve Coil	-
11	AN206491	1	Check Valve	-
12	AT224862	5	Seal Kit	-
13	RE576788	1	Pressure Relief Valve	3190 PSI
14	AT224864	1	Seal Kit	-
15	AT316532	1	Lock Kit	-
15	RE308229	1	Screen	-
16	N304196	1	Plug	-
17	AT307315	1	Solenoid Valve	Y506, Front Suspension Raise Solenoid
17	AT307304	1	Lock	-
18	R321853	2	Orifice	-
19	RE283605	1	Solenoid Valve	Y511, Front Suspension Dampening Solenoid B
20	AN279606	2	Seal Kit	Seal Kit for Flow Regulating Valve
21	RE314587	1	Valve	Y507, Front Suspension Lower Solenoid
22	A73182	8	Pipe Plug	-
23	RE576789	1	Check Valve	-
24	RE576790	1	Seal Kit	-
25	AN221257	1	Seal Kit	-
26	RE283605	1	Solenoid Valve	Y510, Front Suspension Dampening Solenoid A
27	AT307315	1	Solenoid Valve	Y508, Front Suspension Spring Rate Increase Solenoid
27	AT307304	1	Lock	-
28	RE314587	1	Valve	Y509, Front Suspension Spring Rate Decrease Solenoid

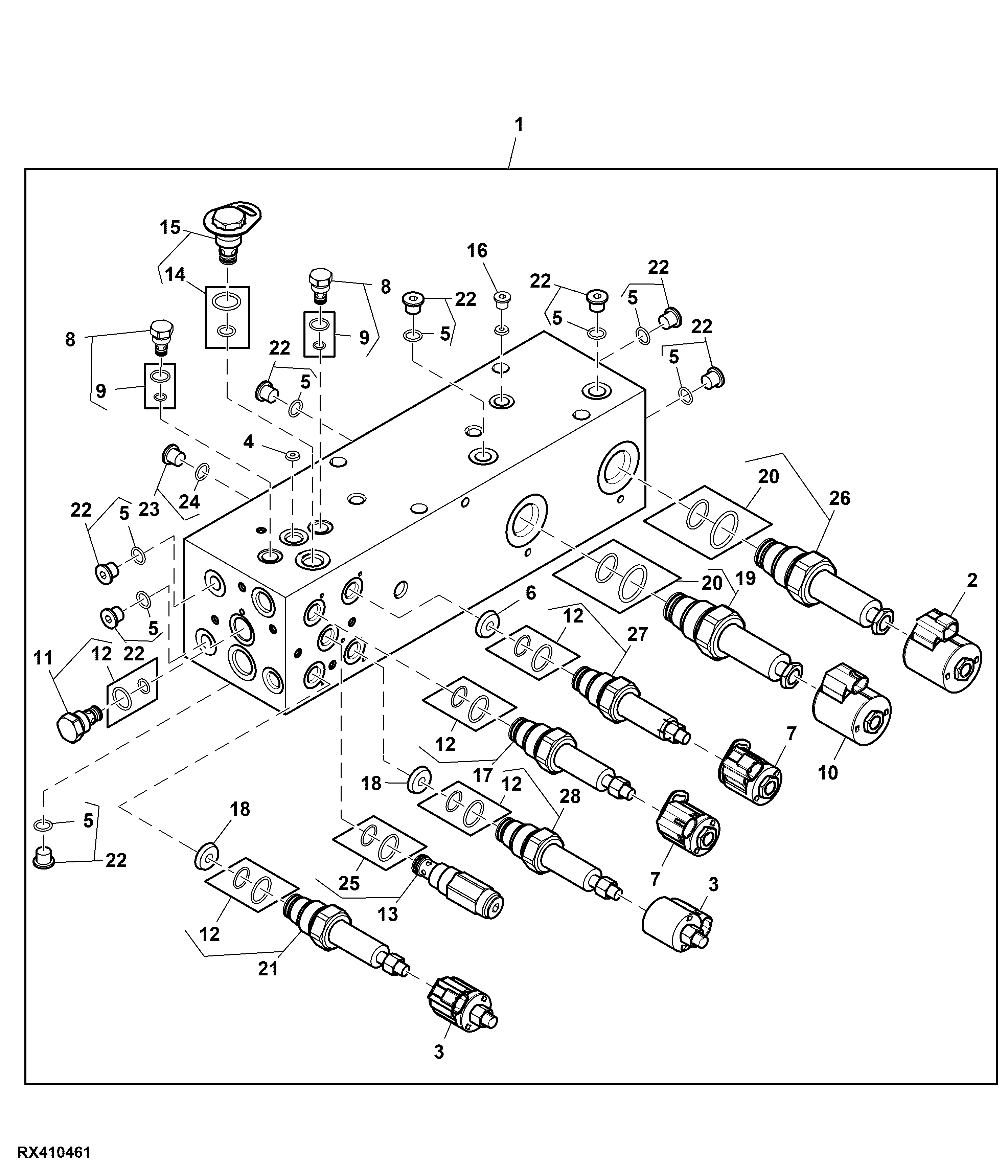

Manifold, Front Suspension Leveling Control Valve
