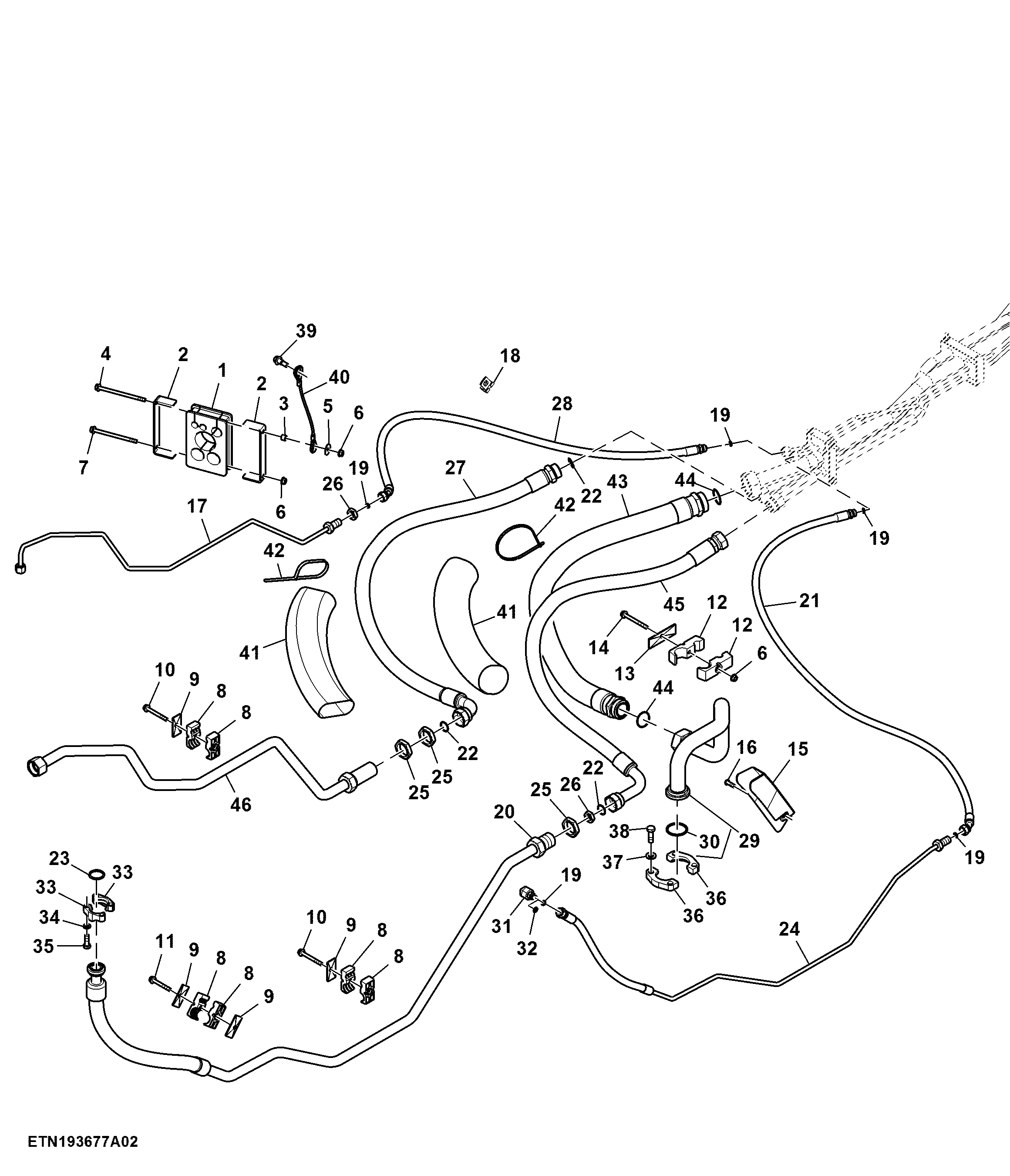

Hydraulic Lines, High Flow, 8 SCV, Double Reduction (2/2) (062001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R552360	1	Clamp	-
2	R544978	2	Cover	-
3	28H1513	1	Washer	0.364" X 0.540" X 3/8"
4	19M9915	1	Screw	M8 X 130
5	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"
6	14M7298	3	Flange Nut	M8
7	19M8006	1	Screw	M8 X 120
8	R129325	6	Clamp	-
9	H112567	4	Plate	-
10	19M7803	2	Screw	M8 X 70
11	19M7801	1	Screw	M8 X 60
12	R342142	2	Block Clamp	-
13	H114901	1	Plate	-
14	19M8039	1	Screw	M8 X 80
15	R543914	1	Guide	-
16	21M7580	2	Socket Head Screw	M8 X 25
17	RE580039	1	Oil Line	SCV Load Sense INCLUDES T77613
18	T269643	1	Clamp	-
19	T77613	5	O-Ring	-
20	RE576775	1	Hydraulic Hose	Fan Supply INCLUDES T78313 AND T76938
21	RE575169	1	Hydraulic Hose	Power Beyond Load Sense INCLUDES T77613
22	T76938	3	O-Ring	-
23	T78313	1	O-Ring	-
24	RE591439	1	Oil Line	SCV Load Sense INCLUDES T77613
25	38H5095	3	Nut	1-7/16"
26	38H5091	2	Nut	11/16"
27	RE587405	1	Hydraulic Hose	Standard Flow SCV Supply INCLUDES T76938
28	RE567489	1	Hydraulic Hose	SCV Load Sense Hose Through Gudgeon INCLUDES T77613
29	RE567130	1	Oil Line	Standard SCV Return
30	T34248	1	O-Ring	-
31	38H5022	1	Elbow Fitting	INCLUDES 51M7040
32	51M7040	1	O-Ring	9.300 X 2.200 mm
33	H61354	2	Flange Fitting	-
34	24M7106	4	Washer	10 X 18 X 2.500 mm
35	19M7662	4	Cap Screw	M10 X 30
36	X51H-24	2	Flange Fitting	-
37	24M7240	4	Washer	13 X 25 X 3 mm
38	19M7403	4	Cap Screw	M12 X 35
39	R519426	1	Screw	-
40	RE570861	1	Cable	-
41	R551064	2	Hose Guard	Sleeve For Gudgeon Hoses
42	R76477	4	Tie Band	-
43	RE574609	1	Hydraulic Hose	SCV Return INCLUDES (2) T78784
44	T78784	2	O-Ring	-
45	RE587428	1	Hydraulic Hose	Pressure High Flow SCV
46	RE577785	1	Oil Line	Standard Flow SCV Pressure Use Fitting RE258123 or 38H5256 to Connect Priority Valve INCLUDES T76938

Hydraulic Lines, High Flow, 8 SCV, Double Reduction (2/2) (062001 - )
