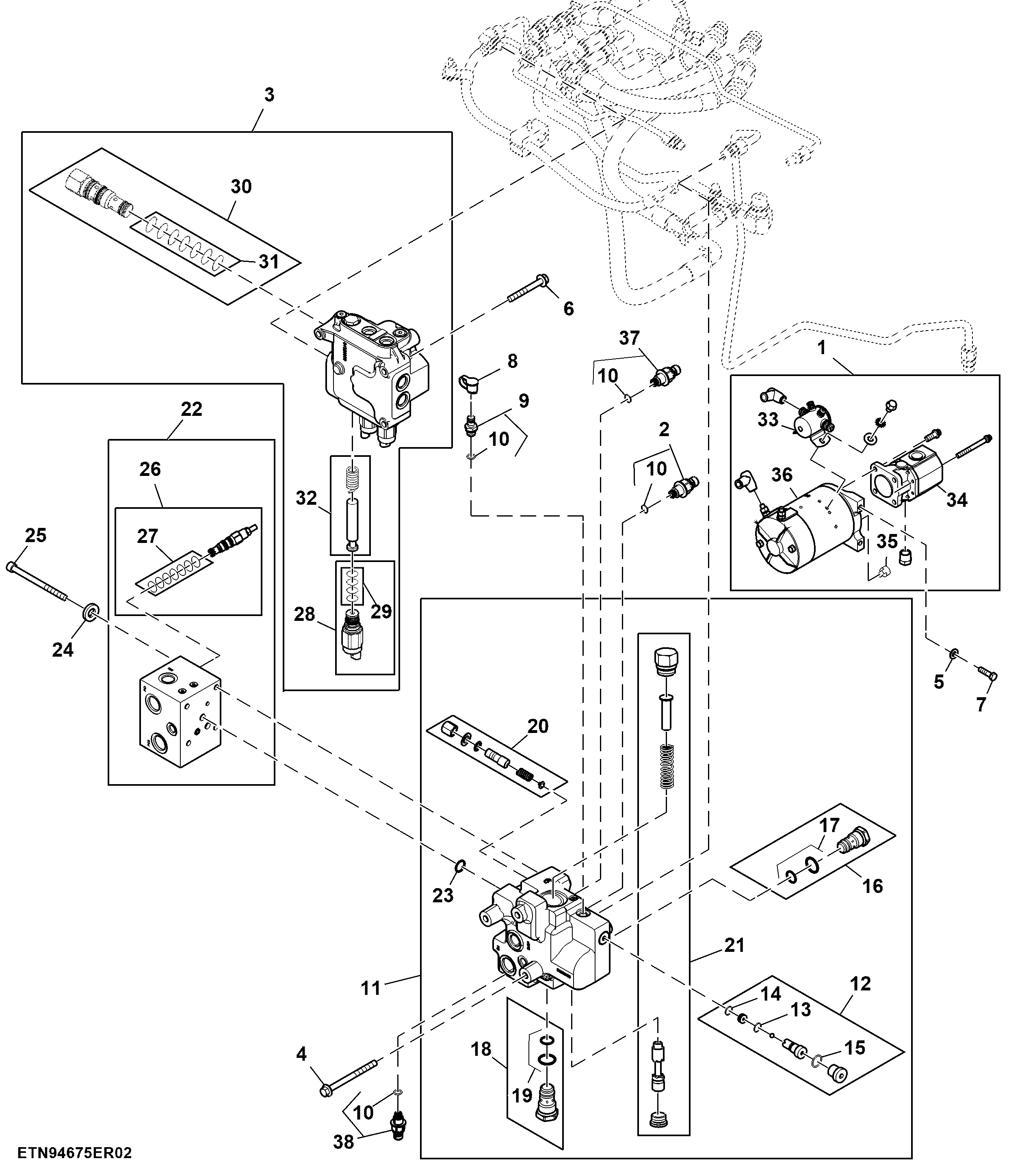

Control Valve, AutoTrac™ W/ Back Up Pump ( - 056100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT305428	1	Pump	-
2	RE581544	1	Pressure Sensor	Main Hydraulic Pump Pressure 2 B262; SUB FOR RE272647
3	RE297023	1	Elec-Hyd Proportional Valve	-
4	19M7944	3	Screw	M10 X 120
5	24M7239	2	Washer	10.700 X 21 X 2.500 mm
6	19M7810	3	Screw	M10 X 80
7	19H2676	2	Cap Screw	3/8" X 1"
8	R77175	3	Cover	-
9	RE190805	3	Diagnostic Coupling	-
10	51M7041	3	O-Ring	11.300 X 2.200 mm, USE WITH RE190805
10	51M7041	3	O-Ring	11.300 X 2.200 mm, USE WITH RE272647 AND RE581544
11	RE574543	1	Valve	Deluxe Priority Valve
12	RE274550	1	Check Valve	-
13	R274578	1	O-Ring	-
14	T77613	1	O-Ring	-
15	51M7043	1	O-Ring	15.300 X 2.200 mm
16	RE317767	1	Check Valve	-
17	TCA18017	1	O-Ring Kit	-
18	RE317768	1	Check Valve	-
19	TCA18021	1	Seal Kit	-
20	RE568582	1	Hydraulic Pressure Valve	-
21	RE568583	1	Hydraulic Pressure Valve	-
22	RE575091	1	Valve	Delux Priority Manifold SUB FOR RE568545
23	R550890	1	O-Ring	-
24	24M7466	4	Washer	10.500 X 20 X 2 mm
25	19M8544	4	Screw	M10 X 125
26	RE272940	1	Hydraulic Pressure Valve	-
27	RE276479	1	Repair Kit	-
28	RE244397	1	Solenoid Valve	Steer Enable Solenoid Y747
29	RE276475	1	Repair Kit	-
30	AL203414	1	Valve Kit	Load Sense Blocking Valve ORDER AL229995
30	AL229995	1	Valve Kit	Load Sense Blocking Valve
31	AL203413	1	O-Ring Kit	-
32	RE276485	1	Repair Kit	-
33	RE27161	1	Switch	-
34	RE27159	1	Pump	-
35	R87565	1	Coupling	-
36	AT186663	1	Hydraulic Motor	-
37	RE581544	1	Pressure Sensor	Main Hydraulic Pump Pressure Sensor 1 B261
38	RE581544	1	Pressure Sensor	Backup Hydraulic Pump Pressure Sensor B263

Control Valve, AutoTrac™ W/ Back Up Pump ( - 056100)
