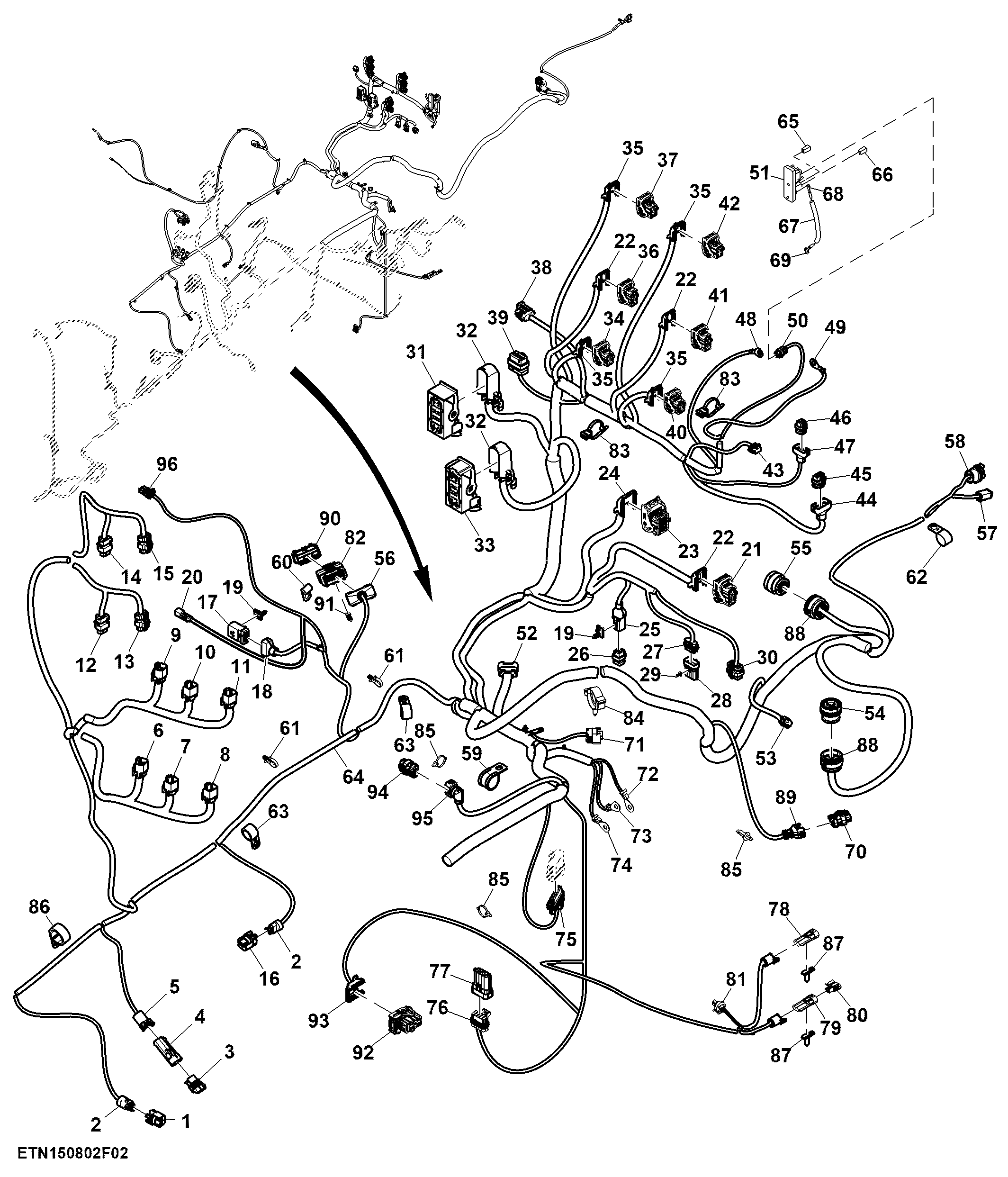

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 13.5 L, FT4 Engine (2/4) (056000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RWA11097	1	Repair Wire Assembly	Cavity B, A
1	57M8924	1	Elec. Connector Housing	Y683_13-5L, Front Differential Lock Solenoid
2	57M11380	2	Elec. Connector Accessory	-
3	57M7254	1	Elec. Connector Housing	S553A, Axle Supply Pressure Switch
3	57M9712	1	Elec. Connector Accessory	-
4	57M7256	1	Elec. Connector Housing	S553, Single Reduction Axle Lube Pressure Switch
4	RWA11082	1	Repair Wire Assembly	Cavity B, A
5	57M9556	3	Elec. Connector Accessory	-
6	57M8924	1	Elec. Connector Housing	Y750, Steer Enable Solenoid 1 (ACS™)
6	57M8633	1	Elec. Connector Accessory	-
6	RWA11097	1	Repair Wire Assembly	Cavity A, B
7	57M9210	1	Elec. Connector Housing	Y751, Steer Left Solenoid 1 (ACS™)
7	57M8633	1	Elec. Connector Accessory	-
7	RWA11097	1	Repair Wire Assembly	Cavity A, B
8	RWA11097	1	Repair Wire Assembly	Cavity A, B
8	57M8633	1	Elec. Connector Accessory	-
8	57M9210	1	Elec. Connector Housing	Y752, Steer Right Solenoid 1 (ACS™)
9	57M8924	1	Elec. Connector Housing	Y753, Steer Enable Solenoid 2 (ACS™)
9	57M8633	1	Elec. Connector Accessory	-
9	RWA11097	1	Repair Wire Assembly	Cavity B, A
10	57M9210	1	Elec. Connector Housing	Y754, Steer Left Solenoid 2 (ACS™)
10	57M8633	1	Elec. Connector Accessory	-
10	RWA11097	1	Repair Wire Assembly	Cavity A, B
11	57M9210	1	Elec. Connector Housing	Y755, Steer Right Solenoid 2 (ACS™)
11	57M8633	1	Elec. Connector Accessory	-
11	RWA11097	1	Repair Wire Assembly	Cavity A, B
12	57M9780	1	Elec. Connector Housing	B760, Steer Left Valve 1 Position Sensor (ACS™)
12	RWA11029	1	Repair Wire Assembly	Cavity 2, 3, 1
13	57M9780	1	Elec. Connector Housing	B761, Steer Right Valve 1 Position Sensor (ACS™)
13	RWA11029	1	Repair Wire Assembly	Cavity 2, 3, 1
14	57M9780	1	Elec. Connector Housing	B762, Steer Left Valve 2 Position Sensor (ACS™)
14	RWA11029	1	Repair Wire Assembly	Cavity 2, 3, 1
15	57M9780	1	Elec. Connector Housing	B763, Steer Right Valve 2 Position Sensor (ACS™)
15	RWA11029	1	Repair Wire Assembly	Cavity 2, 3, 1
16	57M8924	1	Elec. Connector Housing	B694, Hydraulic Oil Temperature Sensor
16	57M8633	1	Elec. Connector Accessory	-
16	RWA11097	1	Repair Wire Assembly	Cavity B, A
17	57M9804	1	Elec. Connector Housing	X342A, ATD Interconnect
17	RWA11025	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 12, 1, 10, 8, 2, 11, 7
18	57M9844	1	Elec. Connector Accessory	-
19	57M9940	2	Elec. Connector Accessory	-
20	57M7784	1	Electrical Connector Assy	X133A, Right Extremity Light
20	57M7723	1	Electrical Connector Assy	-
20	RWA11085	1	Repair Wire Assembly	Cavity B, A
21	57M10614	1	Elec. Connector Housing	A570-J1, Vehicle Control Unit J1
21	RWA11030	1	Repair Wire Assembly	Cavity A1, F1, A3, A2, J1, D1, B2, B1, G1, G2, J3, A4, F4, C1, B4, H1, K2, E4, H2, B3, E1, K1
21	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
22	57M10613	3	Elec. Connector Housing	-
23	RWA11032	1	Repair Wire Assembly	Cavity 6, 18, 29, 41, 42, 53
23	57M10367	1	Elec. Connector Housing	A570-J2, Vehicle Control Unit J2
23	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 31, 43, 19, 22, 23, 24, 11, 12, 35, 34, 20, 21, 33, 47, 48, 46, 44, 45, 25, 13, 28, 14, 26, 37, 49, 40, 52, 51, 50, 38, 39
23	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
24	57M10401	1	Elec. Connector Accessory	-
25	57M9789	1	Elec. Connector Housing	X563A, Rear PTO Extension
25	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
26	57M9786	1	Elec. Connector Housing	X563AA, Rear PTO Extension
27	57M7262	1	Elec. Connector Housing	X116A, Hitch Following
27	57M7281	1	Elec.Connect Locking Device	-
27	RWA11083	1	Repair Wire Assembly	Cavity G, E, D, F, A, B, C, J, K, H
28	57M7265	1	Elec. Connector Housing	X116AA, Hitch Following
28	57M7281	1	Elec.Connect Locking Device	-
29	57M9555	1	Clip	-
30	57M9800	1	Elec. Connector Housing	X330A, Transmission Interconnect
30	57M12116	1	Elec. Connector Accessory	-
30	RWA11029	1	Repair Wire Assembly	Cavity 1, 3, 6, 4, 12, 7, 10, 9, 8
31	57M11524	1	Elec. Connector Housing	X500, Cab Connection 2
31	RWA11118	1	Repair Wire Assembly	Cavity 27, 28, 2, 1
31	RWA11029	1	Repair Wire Assembly	Cavity 26, 3, 6, 7, 8, 10, 12, 13, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 14, 25
32	57M11528	2	Elec. Connector Accessory	-
33	RWA10612	1	Repair Wire Assembly	Cavity 25
33	RWA11118	1	Repair Wire Assembly	Cavity 1, 27, 28
33	57M11523	1	Elec. Connector Housing	X501, Cab Connection
33	RWA11029	1	Repair Wire Assembly	Cavity 26, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 15, 16, 19, 20, 23, 24
34	57M10605	1	Elec. Connector Housing	A985-J1, ActiveCommand Steering Unit J1
34	RWA11030	1	Repair Wire Assembly	Cavity A2, A4, B2, B4, C2, C4, E2, F2, F3
34	RWA11032	1	Repair Wire Assembly	Cavity G1, H3, H4, G4
35	57M10604	4	Elec. Connector Housing	-
36	57M10614	1	Elec. Connector Housing	A985-J2, ActiveCommand Steering Unit J2
36	RWA11030	1	Repair Wire Assembly	Cavity A1, F1, H3, C3, A2, H4, J1, C4, B1, G1, J3, A4, F4, J2, H1, K2, E2, C2, K4, E1, G3, K1
36	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
37	RWA11032	1	Repair Wire Assembly	Cavity G2, G1, G4, H1, H2
37	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D1, D2, D3, E3, F1, F3, F4
37	57M10611	1	Elec. Connector Housing	A985-J3, ActiveCommand Steering Unit J3
38	57M7261	1	Elec. Connector Housing	X505A, Chassis / Cab
38	57M7296	1	Elec. Connector Accessory	-
38	RWA11083	1	Repair Wire Assembly	Cavity E, B, C, A, D
39	57M9800	1	Elec. Connector Housing	X506A, Cab Conn 6
39	RWA11029	1	Repair Wire Assembly	Cavity 2, 3
40	57M10605	1	Elec. Connector Housing	A986-J1, ActiveCommand Steering Unit J1
40	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, B1, B2, C4, D2, D4, E1, E4, F1, F3, F4
40	RWA11032	1	Repair Wire Assembly	Cavity H3, G1, H4, G4
41	RWA11030	1	Repair Wire Assembly	Cavity A1, F1, H3, C3, A3, A2, F2, J1, B1, G1, G2, J3, J4, D3, D4, A4, F4, B4, G4, H1, K2, E2, C2, K4, E1, G3, K1
41	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
41	57M10614	1	Elec. Connector Housing	A986-J2, ActiveCommand Steering Unit J2
42	57M10611	1	Elec. Connector Housing	A986-J3, ActiveCommand Steering Unit J3
42	RWA11032	1	Repair Wire Assembly	Cavity G2, H1, H2, G3
42	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D2, D3, D4, E2, E3, E4, F1, F3, F4
43	57M7261	1	Elec. Connector Housing	X504A, Chassis / Cab
43	57M7296	1	Elec. Connector Accessory	-
43	RWA11083	1	Repair Wire Assembly	Cavity E, B, A, C, D
44	57M12116	2	Elec. Connector Accessory	-
45	57M9800	1	Elec. Connector Housing	X503A, Cab 7 Interconnect
45	RWA11029	1	Repair Wire Assembly	Cavity 4, 1
46	57M9792	1	Elec. Connector Housing	X780, GYRO
46	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
47	57M9842	1	Elec. Connector Accessory	-
48	57M8872	1	Elec. Connector Terminal	A100-X3, Power Relay Module Unswitched Power Output
49	57M11530	1	Elec. Connector Terminal	A100-X2, Power Mod Switch Power Output
50	57M9772	1	Elec. Connector Housing	A100-X4, Power Relay Module
50	RWA11029	1	Repair Wire Assembly	Cavity 2, 1
51	RE336303	1	Relay Module	Implement Power Relay INCLUDES 57M10797 AND 57M12929
52	57M8919	1	Elec. Connector Housing	B264, Front Right Wheel Angle Sensor
52	RWA11097	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
53	57M8924	1	Elec. Connector Housing	Y666, Rear Differential Lock Solenoid
53	57M8633	1	Elec. Connector Accessory	-
53	RWA11097	1	Repair Wire Assembly	Cavity B, A
54	57M9514	1	Elec. Connector Housing	X321A, Front Chassis To Fender Lights
54	RWA11058	1	Repair Wire Assembly	Cavity 15, 14, 12, 11, 23, 22, 21, 31, 5, 4, 3, 2, 1, 17, 16, 28, 27, 20, 30, 29, 10, 9, 8, 7, 6
55	57M8795	1	Elec. Connector Housing	X320A, Front Chassis To Rear Chassis-2
55	RWA11053	1	Repair Wire Assembly	Cavity 18, 20, 23, 24, 27, 29
55	RWA11118	1	Repair Wire Assembly	Cavity 1, 3, 4
55	RWA11058	1	Repair Wire Assembly	Cavity 28, 26, 25, 22, 21, 19, 17, 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 5
56	57M12119	1	Elec. Connector Accessory	-
57	57M10530	1	Elec. Connector Housing	A914, Implement CAN Bus Active Terminator
57	57M8016	1	Elec.Connect Locking Device	-
57	RWA11058	1	Repair Wire Assembly	Cavity 3, 1, 2, 4
58	57M14213	1	Elec. Connector Housing	X221, Implement Connector
58	57M8884	1	Elec. Connector Accessory	-
58	RWA10820	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
59	CB11489178	2	Clamp	-
60	57M8903	2	Clip	-
61	57M10233	18	Tie Band	-
62	57M12124	1	Clamp	-
63	57M12123	2	Clamp	-
64	RE580655	1	Wiring Harness	-
64	RE587326	1	Wiring Harness	-
64	RE595018	1	Wiring Harness	-
65	57M12929	1	Fuse	30 A
66	57M10797	1	Fuse	60 A
67	RE574020	1	Wiring Harness	-
68	57M8866	1	Elec. Connector Terminal	KX-X1
69	57M8865	1	Elec. Connector Terminal	X008A, VC Ring M10 Power Stud
70	57M11334	1	Elec. Connector Accessory	-
70	57M9939	1	Elec. Connector Accessory	-
70	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
70	57M9780	1	Elec. Connector Housing	X344A
71	57M8919	1	Elec. Connector Housing	B252, Left Wheel Angle Sensor
71	RWA11097	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
72	57M12676	1	Elec. Connector Terminal	XGND4C, Chassis Ground 3
73	57M8897	1	Elec. Connector Terminal	XGND4B, Chassis Ground
74	57M8897	1	Elec. Connector Terminal	XGND4A, Chassis Ground 1
75	57M10432	1	Elec.Connect Locking Device	-
75	RWA11089	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
75	57M8611	1	Electrical Connector Assy	-
75	57M8326	1	Electrical Connector Assy	-
75	57M9406	1	Elec. Connector Accessory	SPK01, Ground Splice Pack
76	57M7262	1	Elec. Connector Housing	B921, Radar Sensor
76	RWA11083	1	Repair Wire Assembly	Cavity C, E, F
77	57M7265	1	Elec. Connector Housing	B921A, Radar Sensor
78	57M7985	1	Electrical Connector Assy	S551, Hyd Oil Filter Restriction Switch
78	RWA11082	1	Repair Wire Assembly	Cavity A, B
79	RWA11082	1	Repair Wire Assembly	Cavity A, B
79	57M7985	1	Electrical Connector Assy	S555, Axle Filter Restrict Switch
80	57M7328	1	Elec. Connector Housing	S555A, Axle Filter Restrict Switch
80	57M9712	1	Elec. Connector Accessory	-
81	57M8625	1	Elec. Connector Housing	B711, DR Axle Supply Pressure
81	57M8624	1	Elec.Connect Locking Device	-
81	57M11529	1	Elec. Connector Accessory	-
81	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
82	57M10297	1	Elec. Connector Housing	X790-1, Brake Manifold
82	RWA11137	1	Repair Wire Assembly	Cavity 7, 13, 10, 12, 11, 8, 9, 1, 4, 5, 6, 2, 3
83	57M10747	4	Elec. Connector Accessory	-
84	57M9190	1	Clip	-
85	RE258807	4	Tie Band	-
86	57M12126	2	Clamp	-
87	57M8910	2	Clip	-
88	57M9383	2	Elec. Connector Accessory	-
89	57M9838	2	Elec. Connector Accessory	-
90	57M10298	1	Elec. Connector Housing	X790-1A, Cap
91	57M11374	2	Elec. Connector Accessory	-
92	57M10615	1	Elec. Connector Housing	A401-J1, Health Sensor Controller USE WITH RE587326 OR RE595018
93	57M10613	1	Elec. Connector Housing	USE WITH RE587326 OR RE595018
94	57M9780	1	Elec. Connector Housing	XX331A, Interconnect To Transmission Harness USE WITH RE587326 OR RE595018
95	57M10156	1	Elec. Connector Accessory	USE WITH RE587326 OR RE595018
96	57M14930	1	Elec. Connector Housing	E129, RH Side Marker USE WITH RE595018

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 13.5 L, FT4 Engine (2/4) (056000 - )

Нет текстового описания
