Открытый узел

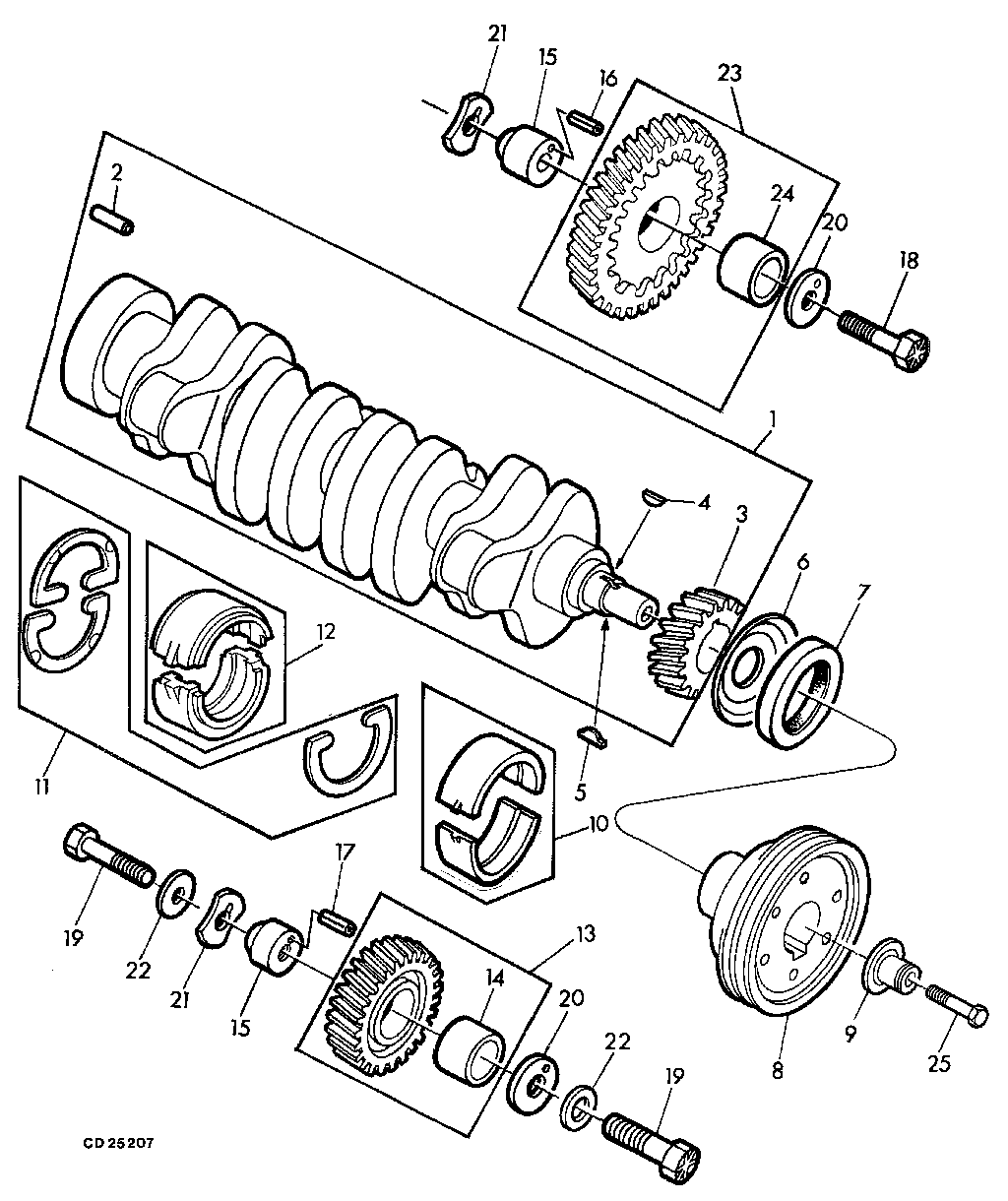

CRANKSHAFT/TIMING GEARS/MAIN BEARINGS [01A22]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT18030	1	CRANKSHAFT	ASSY, INCL KEYS 2-4
2	A120R	1	Dowel Pin	(SUB FOR T26565 APPL)
3	T20094	1	Helical Gear	Z = 24
4	26H72	1	Shaft Key	1/8" X 5/8"
5	T23604	1	SHAFT KEY	-
6	T20046	1	Oil Slinger	-
7	AR67942	1	Seal	-
8	T24440	1	PULLEY	-
9	R55872	1	PULLEY	-
10	RE27352	1	Bearing Kit	ID = STANDARD (KIT (2) R83380) (SUB FOR AT21140 KIT (2) T23214)
10	RE27353	1	Bearing Kit	ID = -0.254 MM (0.010") (KIT (2) R87750) (SUB FOR AT21108 KIT (2) T23552) (SUB FOR AT21110 KIT (2) T23554)
10	RE27360	1	Bearing	ID = -0.508 MM (0.020") (KIT (2) R87756) (SUB FOR AT21112 KIT (2) T23556)
10	RE27368	1	Bearing	ID = -0.762 MM (0.030") (KIT (2) R87759) (SUB FOR AT21114 KIT (2) T23558)
11	RE13571	1	KIT	TK = STANDARD (KIT (3) R78598)
11	AR95932	1	Thrust Washer	TK = +0.17 MM (0.007") (KIT (3) R64851)
12	RE27366	1	Bearing Kit	REAR, ID = -0.762 MM (0.030") (KIT (2) R87758) (SUB FOR AT21136 KIT (2) T23580)
12	RE27351	1	KIT	REAR, ID = -0.254 MM (0.010") (KIT (2) R87749) (SUB FOR AT21130 KIT (2) T23574 (SUB FOR AT21132 KIT (2) T23576)
12	RE27359	1	Bearing	REAR, ID = -0.508 MM (0.020") (KIT (2) R87755) (SUB FOR AT21134 KIT (2) T23578)
12	RE27350	1	KIT	REAR, ID = STANDARD (KIT (2) R83381) (SUB FOR AT21139 KIT (2) T23215)
13	AT24252	1	GEAR	LOW, Z = 45, INCL KEY 14
14	T26321	1	Bushing	-
15	R89825	2	PIN	(SUB FOR T26323)
16	34H283	1	Spring Pin	3/16" X 1-1/8"
17	34H286	1	Spring Pin	3/16" X 1-1/2"
18	T26327	1	Screw	-
19	T26325	2	SCREW	-
20	T26326	2	THRUST WASHER	-
21	T26324	2	THRUST WASHER	-
22	R76126	2	Washer	(SUB FOR R42364, 24H1890)
23	AR91660	1	Gear	UP, Z = 55, INCL KEY 24 (SUB FOR AT18009)
24	T20034	1	Bushing	-
25	T20183	1	CAP SCREW	-

CRANKSHAFT/TIMING GEARS/MAIN BEARINGS [01A22]

Нет текстового описания
