Открытый узел

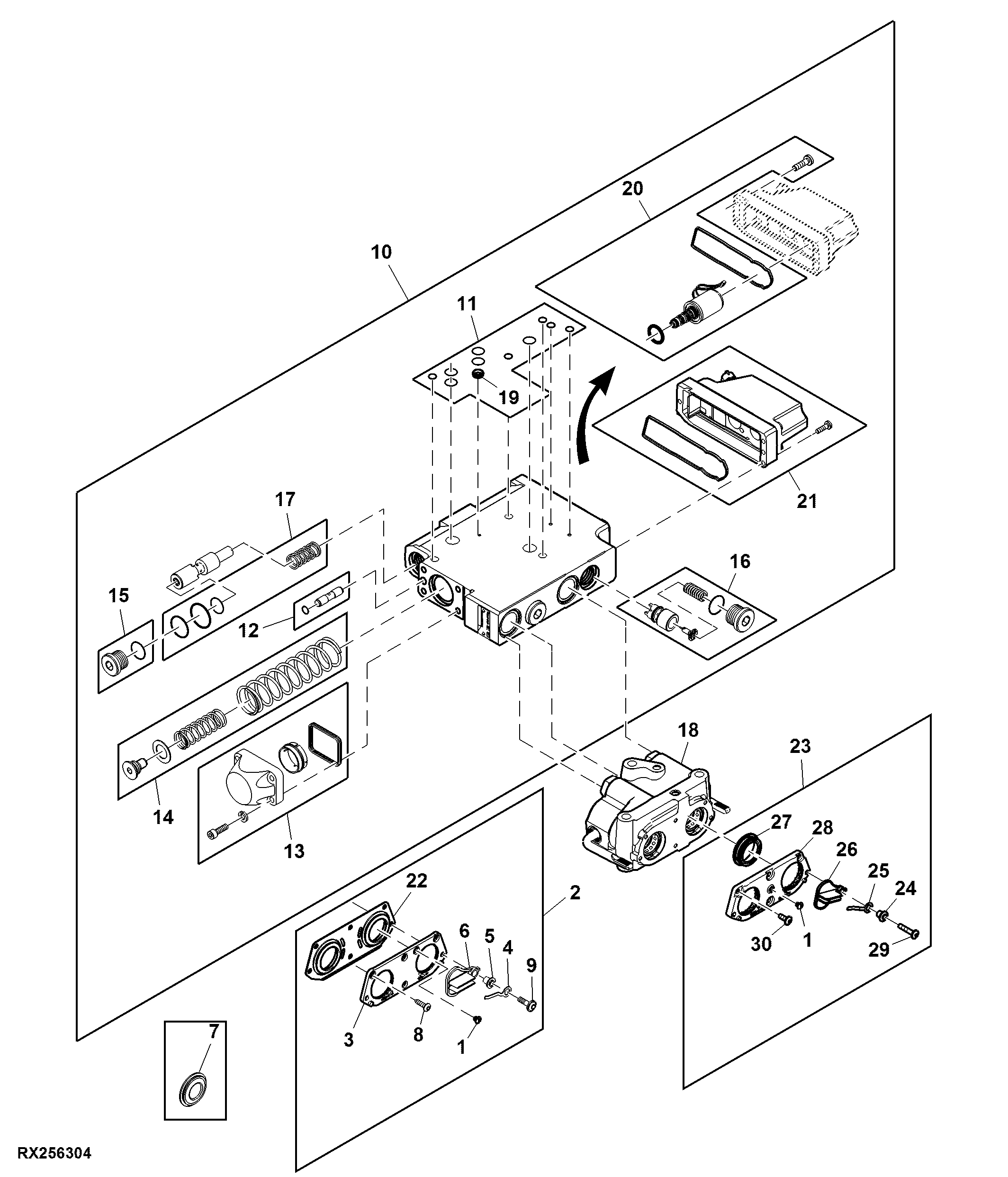

Selective Control Valve, Cover and Coupler, High Flow (For Scraper)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L200312	1	Plug	(B)
1	L200313	1	Plug	(A)
1	L170555	1	Plug	(F)
1	L170556	1	Plug	(E)
1	L102157	1	Plug	(C)
1	L170557	1	Plug	(D)
2	RE309618	1	Cover	Number I, Green, SCV Coupler ORDER RE574695
2	RE309619	1	Cover	Number II, Blue, SCV Coupler ORDER RE575267
2	RE309620	1	Cover	Number III, Brown, SCV Coupler ORDER RE575268
2	RE298959	1	Cover	Number IV, Black, SCV Coupler ORDER RE575269
2	RE309621	1	Cover	Number V, Violet, SCV Coupler
2	RE309623	1	Cover	Number VI, Gray, SCV Coupler ORDER RE575271
3	R298961	1	Cover	-
4	R124008	2	Spring	-
5	R124009	2	Bushing	-
6	R209409	2	Valve Cover	(C)
6	R289061	2	Door	(F)
6	R289062	2	Door	(E)
6	R289063	2	Door	(D)
6	R289065	2	Door	(B)
6	R289066	2	Door	(A)
7	R298960	2	Seal	ORDER R552036
8	21M7500	4	Screw	M6 X 12
9	19M8875	2	Screw	M6 X 25
10	RE307841	1	Selective Control Valve	ORDER RE588376
10	RE580229	1	Selective Control Valve	ORDER RE588376
10	RE588376	1	Selective Control Valve	-
11	RE582808	1	Seal Kit	SUB FOR RE279692
12	RE279693	1	Valve Kit	-
13	RE279694	1	Cap Kit	-
14	RE279695	1	Spring Kit	-
15	RE279696	3	Plug Kit	-
16	RE279697	2	Valve Kit	Load Check Valve
17	RE279699	1	Spring Kit	-
18	RE573038	1	Breakaway Coupler	ORDER RE593895; SUB FOR RE298944
18	RE593895	1	Breakaway Coupler	-
19	R540643	1	Valve	-
20	RE580941	1	Valve Kit	SUB FOR RE341710
21	RE567600	1	Electronic Control Unit	-
22	R552036	1	Seal	-
23	RE575270	1	Cover	Number V, Violet, SCV Coupler
23	RE575271	1	Cover	Number VI, Gray, SCV Coupler
23	RE575269	1	Cover	Number IV, Black, SCV Coupler
23	RE575268	1	Cover	Number III, Brown, SCV Coupler
23	RE575267	1	Cover	Number II, Blue, SCV Coupler
23	RE574695	1	Cover	Number I, Green, SCV Coupler
24	-	2	Part 47	-
25	-	2	Part 48	-
26	-	2	Part 49	ORDER RE574695
26	-	2	Part 50	ORDER RE575267
26	-	2	Part 51	ORDER RE575268
26	-	2	Part 52	ORDER RE575269
26	-	2	Part 53	ORDER RE575270
26	-	2	Part 54	ORDER RE575271
27	R552415	2	Grommet	-
28	R552413	1	Retainer	-
29	19M9178	2	Screw	M6 X 30
30	19M8648	4	Screw	M6 X 16

Selective Control Valve, Cover and Coupler, High Flow (For Scraper)

Нет текстового описания
