Selective Control Valve and Lines, 6 SCV, High Flow (For Scraper)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE292728	1	Manifold	-
2	RE307841	1	Selective Control Valve	-
2	RE588376	1	Selective Control Valve	SUB FOR RE580229
3	RE573038	6	Breakaway Coupler	SUB FOR RE298944
4	RE294397	1	Manifold	ORDER RE557712
4	RE557712	1	Manifold	ALSO ORDER (2) RE572380
5	RE289198	1	Manifold	ORDER RE557708
5	RE557708	1	Manifold	ALSO ORDER (2) RE572380
6	RE309623	1	Cover	Number VI, Gray, SCV Coupler ORDER RE575271
7	RE309621	1	Cover	Number V, Violet, SCV Coupler ORDER RE575270
8	RE309618	1	Cover	Number I, Green, SCV Coupler ORDER RE574695
9	RE309619	1	Cover	Number II, Blue, SCV Coupler ORDER RE575267
10	RE309620	1	Cover	Number III, Brown, SCV Coupler ORDER RE575268
11	RE298959	1	Cover	Number IV, Black, SCV Coupler ORDER RE575269
12	RE304828	1	Stud Kit	-
13	19M7790	6	Screw	M12 X 35
14	14M7299	3	Flange Nut	M12
15	R310205	2	Plate	ORDER R571280
15	R571280	2	Plate	-
16	R310108	2	Plate	-
17	R320516	3	Tie Rod Assembly	-
18	38H5192	12	Fitting	-
19	51M7045	12	O-Ring	19.300 X 2.200 mm
20	T77932	12	O-Ring	-
21	RE309120	2	Hydraulic Hose	(1st SCV (Green))
22	RE309121	2	Hydraulic Hose	(2nd SCV (Blue))
23	RE309122	2	Hydraulic Hose	(3rd SCV (Brown))
24	RE320551	2	Hydraulic Hose	(4th SCV (Black))
25	RE309123	4	Hydraulic Hose	(5th SCV (Violet)) (6th SCV (Gray))
26	19M7818	3	Screw	M12 X 80
27	28H3478	3	Bushing	0.546" X 0.840" X 1-3/4"
28	19M7996	3	Cap Screw	M12 X 210
29	24M7240	3	Washer	13 X 25 X 3 mm
30	RE572380	4	Adapter Fitting	-
31	51M7047	6	O-Ring	23.600 X 2.900 mm
32	64M1022	5	Drain Plug	-
33	RE46685	5	Fitting Plug	-
34	51M7043	5	O-Ring	15.300 X 2.200 mm
35	RE46684	2	Fitting Plug	-
36	51M7041	2	O-Ring	11.300 X 2.200 mm
37	RE574695	1	Cover	Number I, Green, SCV Coupler
38	RE575267	1	Cover	Number II, Blue, SCV Coupler
39	RE575268	1	Cover	Number III, Brown, SCV Coupler
40	RE575269	1	Cover	Number IV, Black, SCV Coupler
41	RE575270	1	Cover	Number V, Violet, SCV Coupler
42	RE575271	1	Cover	Number VI, Gray, SCV Coupler

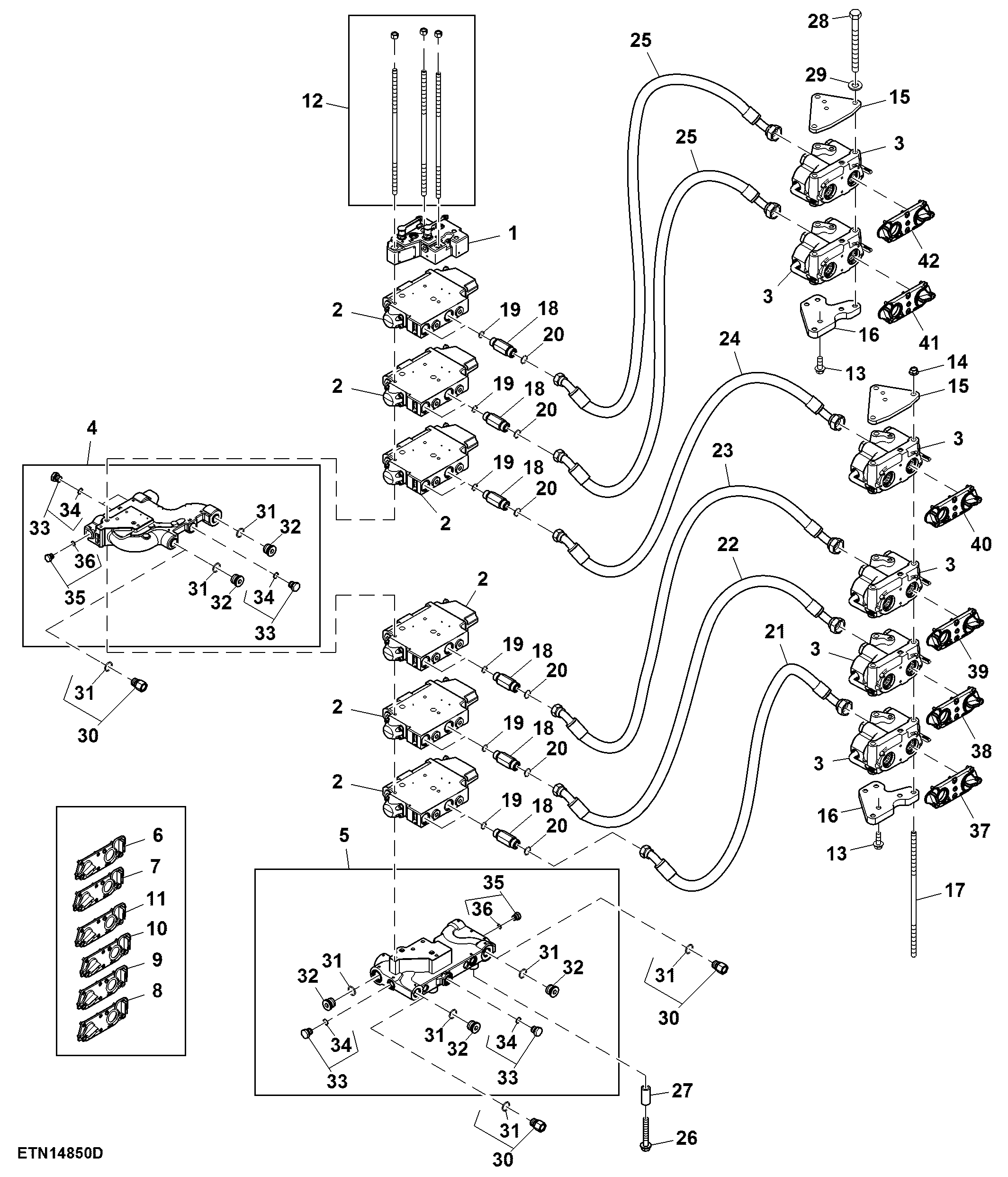

Selective Control Valve and Lines, 6 SCV, High Flow (For Scraper)
