Большое обновление пильных узлов

Смотреть

Открытый узел

Selective Control Valve Lines, PST, Scraper

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R129326	2	Clamp	-
2	H112567	3	Plate	-
3	R129325	4	Clamp	-
4	H114897	2	Clamp	-
5	H111730	2	Clamp	-
6	RE312607	1	Oil Line	SCV Pressure, Rear
7	RE312606	1	Oil Line	SCV Return, Rear
8	RE288842	1	Oil Line	SCV Load Sense, Rear INCLUDES T77613
9	RE69746	1	Clamp	-
10	RE304642	1	Hydraulic Hose	SCV Zero Pressure Drain
11	RE187161	1	Clamp	-
12	RE304624	1	Hydraulic Hose	SCV Return INCLUDES (2) T76938
13	51M7047	1	O-Ring	23.600 X 2.900 mm
14	R105388	5	Tie Band	-
15	R261945	1	Bracket	-
16	14M7274	2	Nut	M10
17	28H3428	2	Spacer	0.423" X 0.675" X 3-1/16"
18	19M7348	2	Cap Screw	M10 X 150
19	24M7239	4	Washer	10.700 X 21 X 2.500 mm
20	RE304625	1	Hydraulic Hose	SCV Supply INCLUDES T77858
21	RE304626	1	Hydraulic Hose	SCV Load Sense INCLUDES T77613
22	51M7048	4	O-Ring	29.600 X 2.900 mm
23	H120847	2	Clamp	-
24	R109479	1	Clamp	-
25	19M8318	1	Screw	M8 X 45
26	R76477	4	Tie Band	-
27	38H5009	1	Adapter Fitting	-
28	T77857	2	O-Ring	-
29	R129323	1	Clamp	-
30	64M5010	1	Drain Plug	-
31	R207703	1	Support	-
32	RE196771	1	Hydraulic Accumulator	-
33	37M7080	2	Screw	M10 X 30
34	19M7799	1	Screw	M8 X 45
35	38H5105	2	Tee Fitting	-
36	T77613	9	O-Ring	-
37	RE60701	2	Diagnostic Coupling	-
38	R77175	2	Cover	-
39	RE288861	1	Hydraulic Hose	Accumulator, Rear
40	38H5002	2	Adapter Fitting	-
41	24M7336	2	Washer	9 X 16 X 1.600 mm
42	RE210893	1	Plate	-
43	38H5264	1	Adapter Fitting	-
44	19M8162	2	Screw	M10 X 40
45	RE306508	1	Fitting	-
46	R184956	1	Hose	-
47	L173496	1	Stud	-
48	R202160	1	Clamp	-
49	RE290034	1	Hydraulic Hose	Load Sense Hose
50	T77858	3	O-Ring	-
51	38H5020	1	Elbow Fitting	-
52	T76938	4	O-Ring	-
53	E53830	1	Clamp	-
54	28H3377	1	Bushing	0.423" X 0.675" X 1-3/4"
55	19M7803	1	Screw	M8 X 70
56	38H1095	1	Elbow Fitting	-
57	RE322145	1	Oil Line	-
58	19M7784	3	Screw	M10 X 20
59	51M7041	3	O-Ring	11.300 X 2.200 mm
60	R26375	1	O-Ring	-
61	R154025	1	Hose Guard	-
62	H131116	1	Bolt	-
63	14M7396	3	Lock Nut	M8
64	19M9225	2	Cap Screw	M8 X 150
65	R334808	1	Guard	-
66	T140924	1	Clamp	-
67	AH77714	1	Clip	-
68	AR21999	2	Hose Clamp	-
69	42M7008	1	Stud	-
70	38H5129	1	Elbow Fitting	-
71	14M7298	1	Flange Nut	M8
72	38H5206	1	Adapter Fitting	-
73	R150262	1	Isolator	-

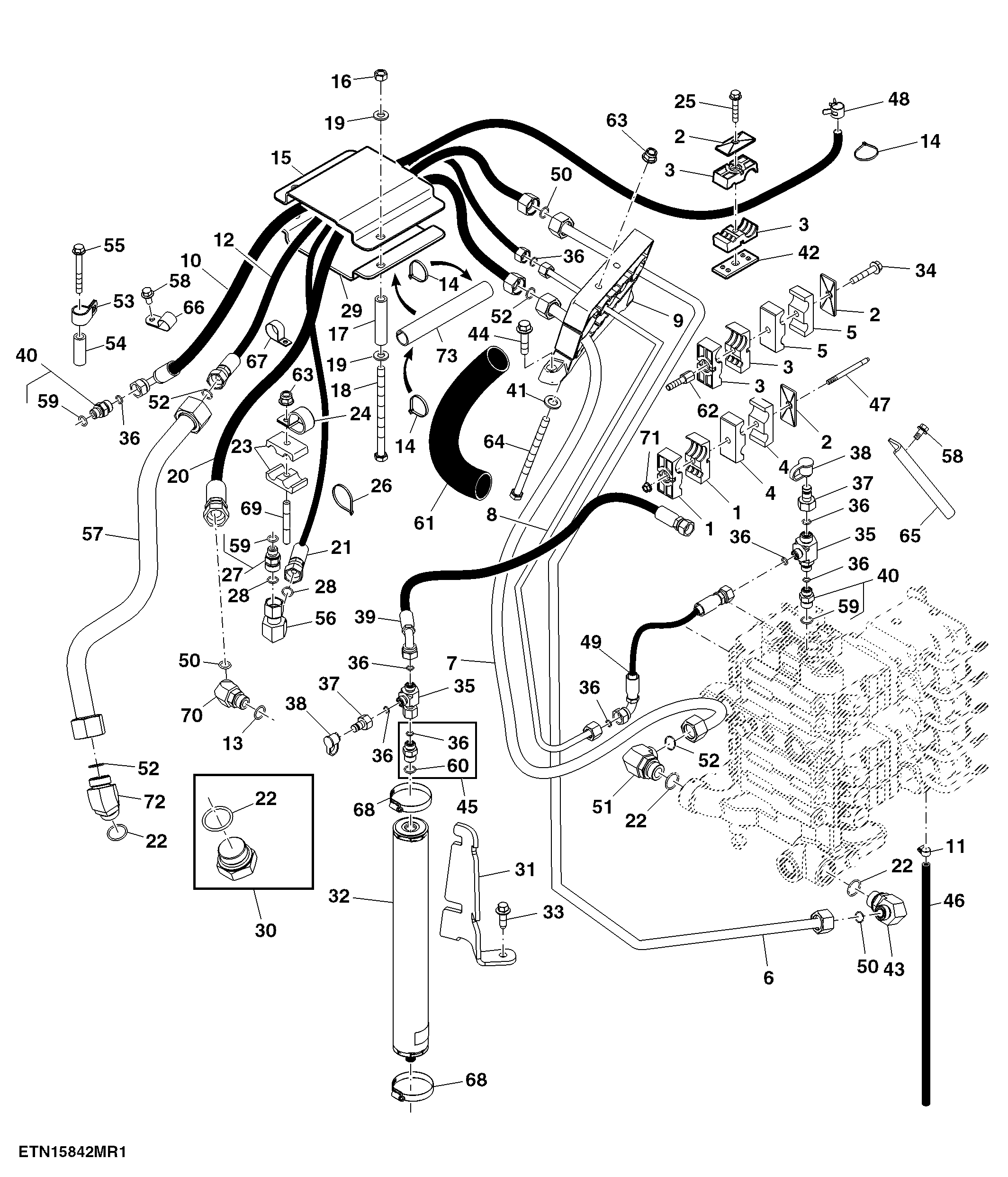

Selective Control Valve Lines, PST, Scraper
