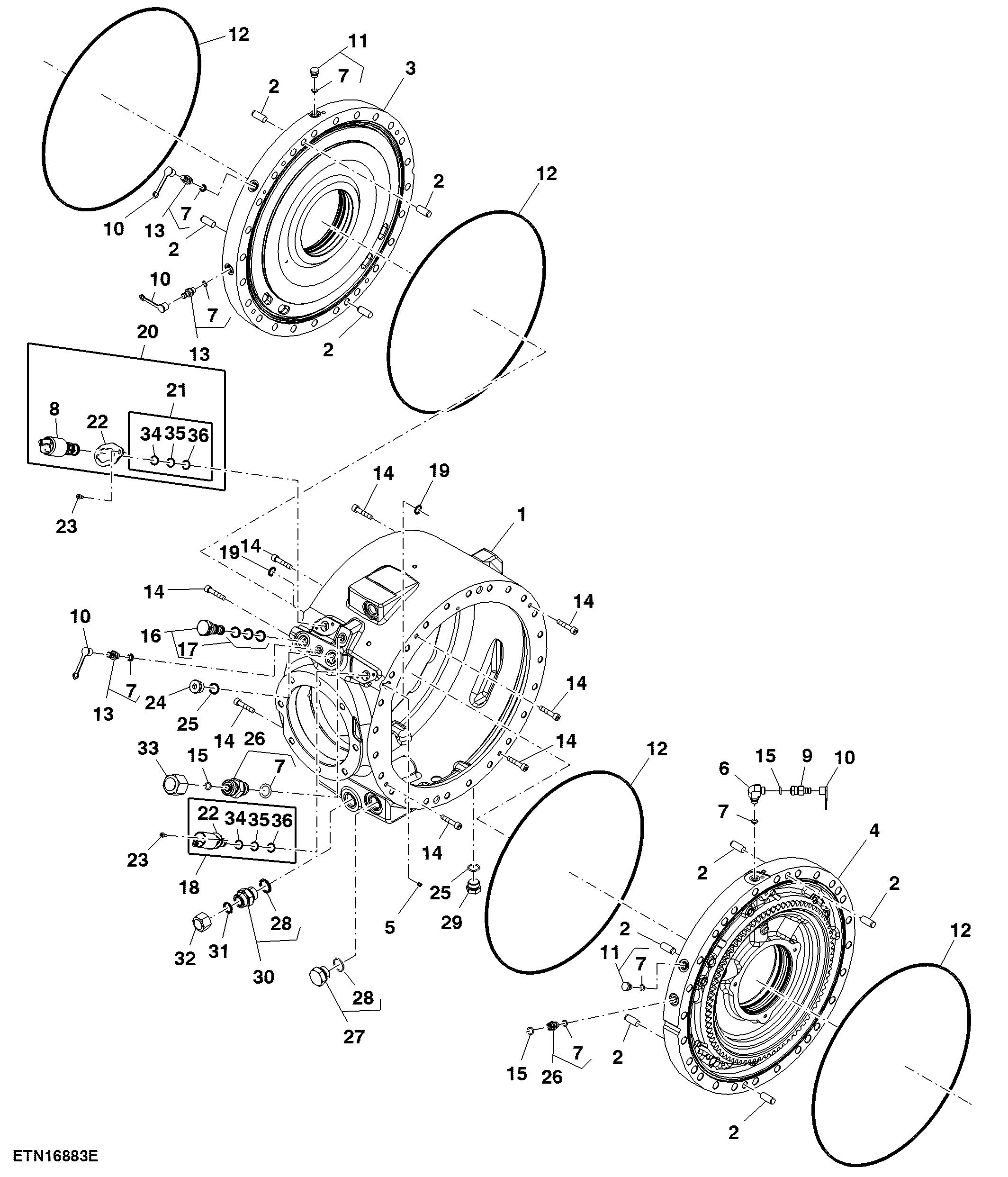

Front Differential Case, Double Reduction

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE311583	1	Housing	INCLUDES (5) AT107510
2	R54380	13	Dowel Pin	-
3	RE271045	1	Intermediate Housing	INCLUDES (4) R54380
4	RE289345	1	Intermediate Housing	INCLUDES AT107510 AND (9) R54380
5	AT107510	6	Plug	-
6	38H5016	1	Elbow Fitting	-
7	51M7041	8	O-Ring	11.300 X 2.200 mm
8	RE211157	1	Solenoid Valve	Differential Lock Solenoid INCLUDES R104554, R104555 AND R104556
9	RE60701	1	Diagnostic Coupling	-
10	R77175	4	Cover	-
11	RE46684	2	Fitting Plug	-
12	R244602	4	O-Ring	-
13	RE190805	3	Diagnostic Coupling	-
14	19M9057	8	Screw	M10 X 50
15	T77613	3	O-Ring	-
16	RE310994	1	Flow Control Hyd. Valve	Front Axle Lube Pressure Reducing Valve
17	YZ105486	1	Seal Kit	-
18	RE312726	1	Elec-Hyd Proportional Valve	Brake Cooling
19	R375R	2	O-Ring	-
20	RE211156	1	Solenoid Valve	Differential Lock ORDER RE211157 AND R211082; ALSO ORDER RE47392
21	RE47392	1	O-Ring Kit	-
22	R211082	1	Clamp	-
23	19M8618	4	Screw	M6 X 12
24	15M7078	1	Drain Plug	-
25	F3171R	2	O-Ring	-
26	38H5002	2	Adapter Fitting	-
27	RE46689	1	Fitting Plug	-
28	51M7048	3	O-Ring	29.600 X 2.900 mm
29	R84262	1	Fitting Plug	-
30	38H5006	1	Adapter Fitting	-
31	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
32	38H1419	1	Fitting	-
33	38H1415	1	Fitting	-
34	R104554	2	Ring	ORDER RE47392
35	R104555	2	Ring	ORDER RE47392
36	R104556	2	Ring	ORDER RE47392

Front Differential Case, Double Reduction
