LEVELING VALVE OIL LINES AND HOSES (SIDEHILL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH136110	1	Hydraulic Hose	FROM INLET PORT OF FLOW DIVIDER TO MAIN HYDRAULIC PUMP
2	T77932	4	O-Ring	-
3	T77857	5	O-Ring	-
4	AH136111	1	Hydraulic Hose	PRESSURE (FLOW DIVIDER TO HP LINE)
5	AH136263	1	Oil Line	PRESSURE, (FROM "B" PORT OF FLOW DIVIDER TO SOLENOID VALVE PR PORT)
6	AH136264	1	Oil Line	RETURN, (FROM EXPORT OF SOLENOID VALVE TO BOTTOM OF TEE IN DR PORT OF FLOW DIVIDER)
7	AH138549	1	Hydraulic Hose	TO RH LEVELING CYLINDER LINE
8	38H1148	1	Fitting Plug	-
9	38H1147	1	Fitting Plug	-
10	AH138548	1	Hydraulic Hose	TO LH LEVELING CYLINDER LINE
11	AH136115	1	Oil Line	FROM MANIFOLD BLOCK TO TOP OF TEE IN DR PORT IN FLOW DIVIDER

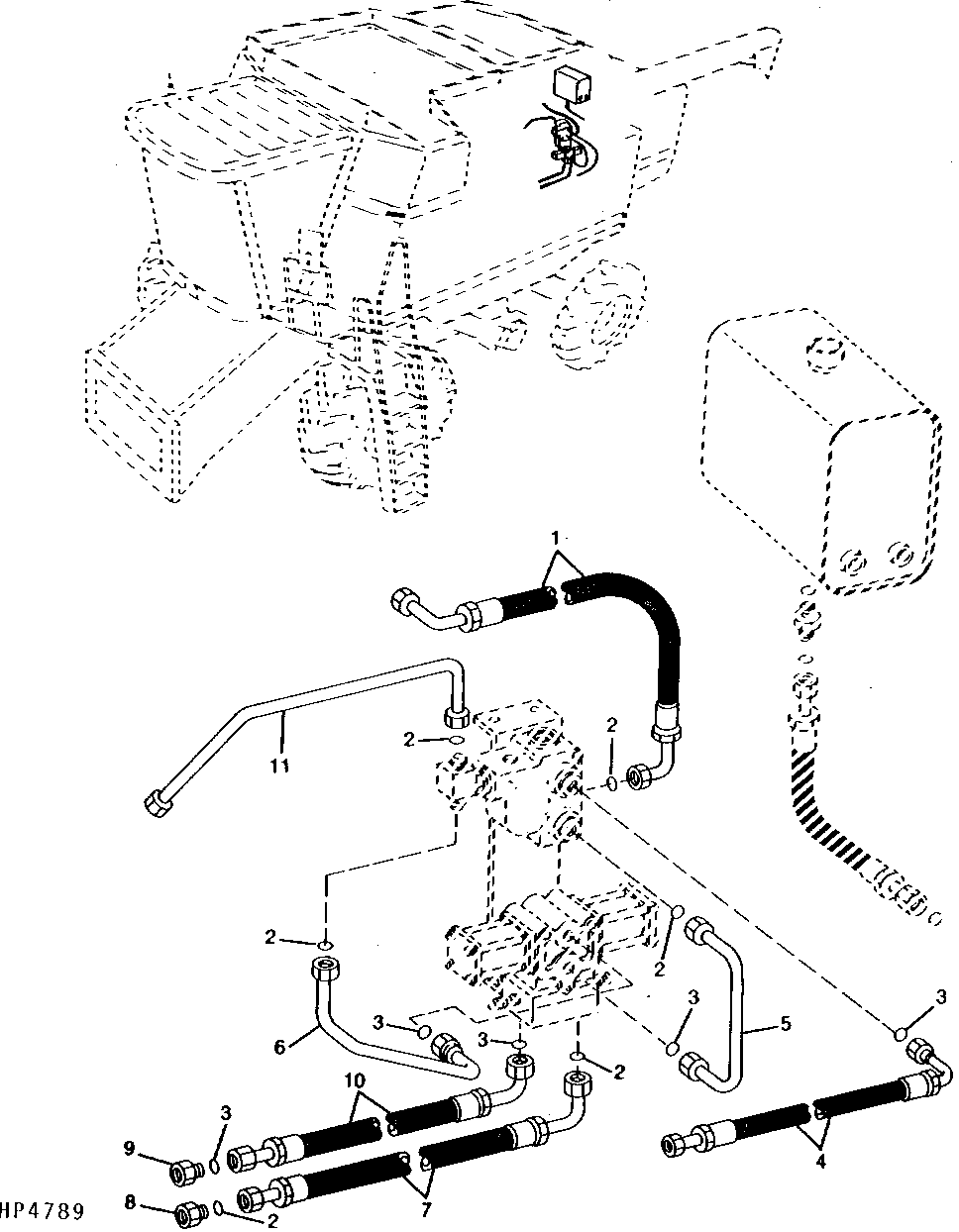

LEVELING VALVE OIL LINES AND HOSES (SIDEHILL)

Нет текстового описания
