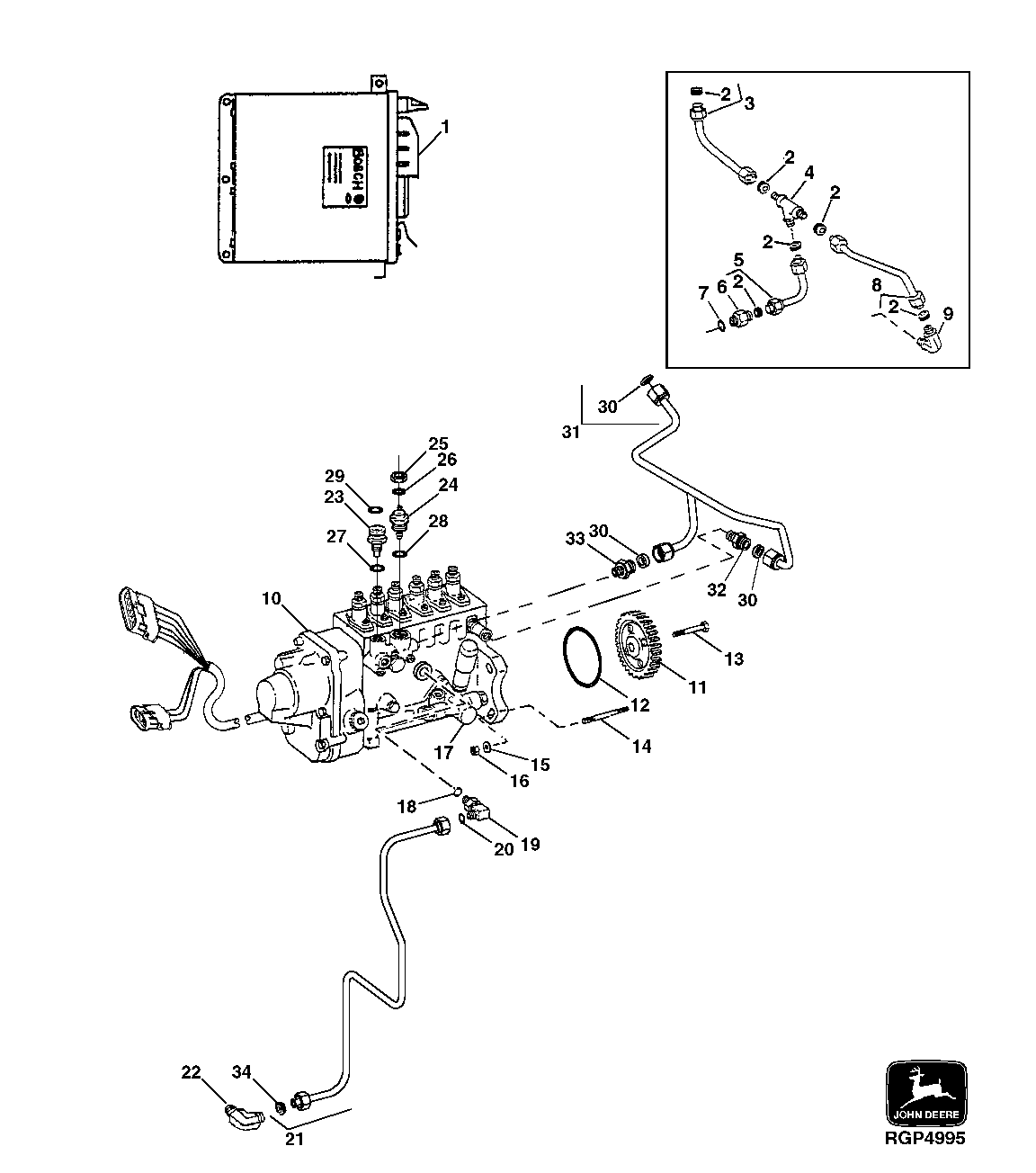

FUEL INJECTION PUMP/LUBE LINES/ENGINE CONTROLLER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SE502809	1	Engine Controller Reman	(Level 3) 12 V, REMAN FOR RE502404
1	RE502404	1	Engine Controller	(MARKED RE66614 OR RE502404) (SUB FOR RE501770, RE501771, RE502081, RE502082, RE502892, RE502894, RE503313 OR RE503314) (JOHN DEERE)
2	R51936	6	Sealing Washer	-
3	RE30920	1	Fuel Line	-
4	R97061	1	Tee Fitting	-
5	RE30833	1	Fuel Line	-
6	R91824	1	Fitting	-
7	R48693	1	Washer	-
8	RE35684	1	Fuel Line	-
9	R67364	1	Elbow Fitting	-
10	RE62645	1	Fuel Injection Pump	(ORDER SE501246)
10	SE501246	1	Fuel Injection Pump Reman	(FOR ADDITIONAL OPTIONS SEE DTAC SOLUTION 81221) (MARKED 0402196720) (REMAN FOR RE62645)
10	SE500363	1	Fuel Injection Pump Reman	(REMAN FOR RE61658)
10	RE61658	1	Fuel Injection Pump	-
11	R121164	1	Gear	-
12	R76358	1	O-Ring	-
13	R121195	4	Cap Screw	(SUB FOR R112975) (T45)
14	R114130	4	Stud	-
15	M72490	4	Washer	-
16	14H1090	4	Nut	3/8"
17	RE46375	1	Fuel Pump	-
18	R79060	1	O-Ring	(SUB FOR R73858)
19	AR88903	1	Elbow Fitting	-
20	R67264	2	Packing	-
21	RE509065	1	Oil Line	(SUB FOR RE60577)
22	T18012	1	Elbow Fitting	-
23	RE28217	1	Fuel Temperature Sensor	(SUB RE506424, 57M7278, (2) 57M7829 AND 51M4238) (TEMPERATURE)
23	R98500	1	O-Ring	23 X 2.500 mm (29/32" X 0.098")
23	RE506424	1	Fuel Temperature Sensor	(ALSO ORDER 57M7278, (2) 57M7829 AND 51M4238)
23	AH157803	1	Wiring Lead	FUEL TEMPERTURE SENSOR CONNECTOR REPAIR
24	R89014	1	Solenoid	(SHUT-OFF HOUSING)
25	12H296	1	Washer	0.216"
26	14M7297	1	Nut	M5
27	51M4238	1	Sealing Ring	-
27	R53899	1	Washer	16.200 X 19.900 X 1.500 mm (0.638" X 0.783" X 0.059"), (SUB 51M4238)
28	R99047	1	O-Ring	10 X 2.500 mm (0.394" X 0.098")
29	R98500	1	O-Ring	23 X 2.500 mm (29/32" X 0.098")
30	R51936	3	Sealing Washer	-
31	RE66000	1	Fuel Line	-
31	RE501262	1	Fuel Line	(SUB RE504635)
31	RE504635	1	Fuel Line	-
32	R63604	1	Fitting	-
33	RE67934	1	Adapter Fitting	-
33	-	1	Part 44	(SUB RE67934)
34	R67264	1	Packing	-

FUEL INJECTION PUMP/LUBE LINES/ENGINE CONTROLLER
