Открытый узел

FINE CUT ROTOR STRAW CHOPPER (PADDLED/STRAIGHT BLADES)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H128081	1	Washer	9 X 31.8 X 1.5, (BALANCING)
1	H128082	1	Washer	9 X 34.9 X 3, (BALANCING)
1	H128083	1	Washer	9 X 50.8 X 5, (BALANCING)
1	H147304	1	Washer	9 X 34.9 X 5, (BALANCING)
1	H128080	1	Washer	9 X 19 X 1.5, (BALANCING)
2	H147302	1	Bolt	3/4", (BALANCING)
2	H128357	1	Cap Screw	1", (BALANCING)
2	H128358	1	Cap Screw	1-1/4", (BALANCING)
2	H128359	1	Cap Screw	1-1/2", (BALANCING)
3	H143332	1	Lock Nut	5/16", (BALANCING)
4	19M7935	12	Cap Screw	M10 X 55
5	AH205910	1	Blade	STRAIGHT BLADE (INCLUDES (8) BLADES)
6	H156101	60	Washer	-
7	H156100	24	Bushing	(SUB H173056)
7	H173056	24	Bushing	-
8	HXE118760	30	Lock Nut	-
9	19M8499	30	Cap Screw	M10 X 60
10	H158364	36	Bushing	(USE WITH AH151539)
10	H167127	60	Bushing	(USE WITH AH160426 OR AH201697 ) (SUB FOR H173055)
11	AH201062	1	Kit	PADDLE (INCLUDES (2) RH AND (2) LH BLADES), (SUB AH205909), (SUB FOR H158404 AND H158405 OR AH160606)
11	AH205909	1	Blade	PADDLE, (SUB FOR AH203131, (INCLUDES (4) RH AND (4) LH BLADES))
13	26H103	1	Shaft Key	1/4" X 2-1/8"
12A	AH151539	1	Rotor	(SUB AH160426)
12B	AH212756	1	Straw Chopper/Whole Goods	(SUB FOR AH160426, AH201697 OR AH203138)

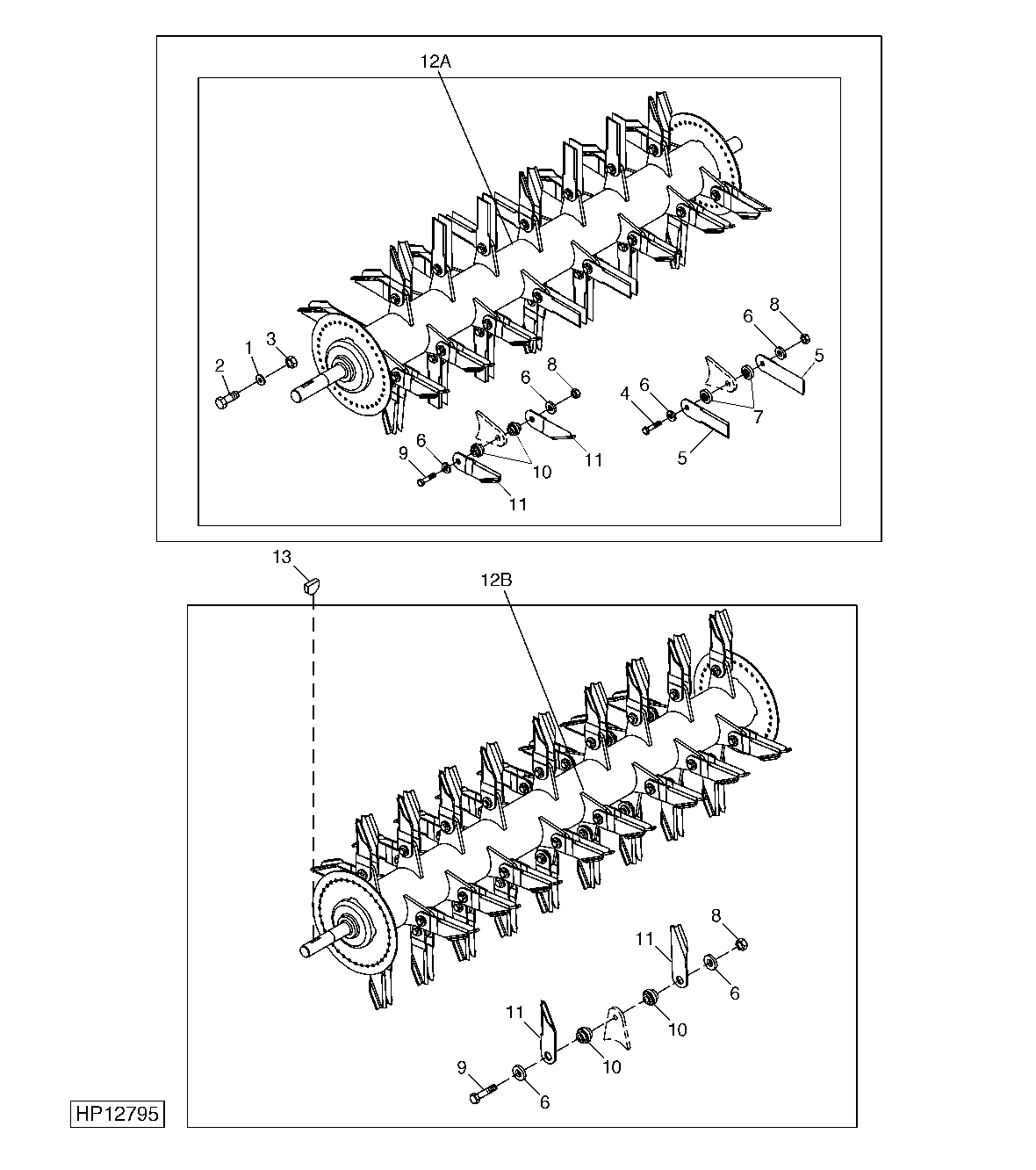

FINE CUT ROTOR STRAW CHOPPER (PADDLED/STRAIGHT BLADES)
