Three Spool Control Valve, Outside Dozer (OSD)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H865	8	Nut	1/2"
1	AT498381	1	Hyd Actuated Control Valve	INCLUDE (8) 14H865 AND (8) T190753; SUB FOR AT475600
1	T190753	8	Washer	-
2	AT195957	1	Hydraulic Accumulator	-
3	R26448	1	O-Ring	-
4	T353906	1	Fitting	-
5	T77858	1	O-Ring	-
6	51M7047	1	O-Ring	23.600 X 2.900 mm
7	24M7240	3	Washer	13 X 25 X 3 mm
8	19M7493	3	Cap Screw	M12 X 40
9	38H3037	1	Elbow Fitting	-
10	R29936	1	O-Ring	-
11	T76938	1	O-Ring	-
12	38H3492	2	Elbow Fitting	-
13	T77858	2	O-Ring	-
14	U12547	2	O-Ring	-
15	38H3007	2	Adapter Fitting	-
16	U12547	2	O-Ring	-
17	T77858	2	O-Ring	-
18	38H3179	1	Adapter Fitting	-
19	T76938	1	O-Ring	-
20	U12547	1	O-Ring	-
21	38H3160	1	Adapter Fitting	-
22	T77613	1	O-Ring	-
23	R26448	1	O-Ring	-
24	T378540	1	Fitting	-
25	T77858	1	O-Ring	-
26	U12547	1	O-Ring	-
27	38H5282	2	Adapter Fitting	-
28	T77858	2	O-Ring	-
29	AT464222	1	Bracket	-
30	19M7785	1	Screw	M10 X 25
31	N205452	1	Clamp	-
32	19M8320	1	Screw	M10 X 45
33	38H3004	1	Adapter Fitting	-
34	R26448	1	O-Ring	-
35	T77613	1	O-Ring	-
36	38H5374	1	Adapter Fitting	-
37	T76938	1	O-Ring	-
38	T121241	4	Rod	-
39	-	1	Part 41	Inlet Valve Section Components on Separate Page, NSEP
40	-	1	Part 42	Tilt Valve Section Components on Separate Page, NSEP
41	-	1	Part 43	Lift Valve Section Components on Separate Page, NSEP
42	-	1	Part 44	Winch Valve Section Components on Separate Page, NSEP
43	-	1	Part 45	Outlet Valve Section Components on Separate Page, NSEP

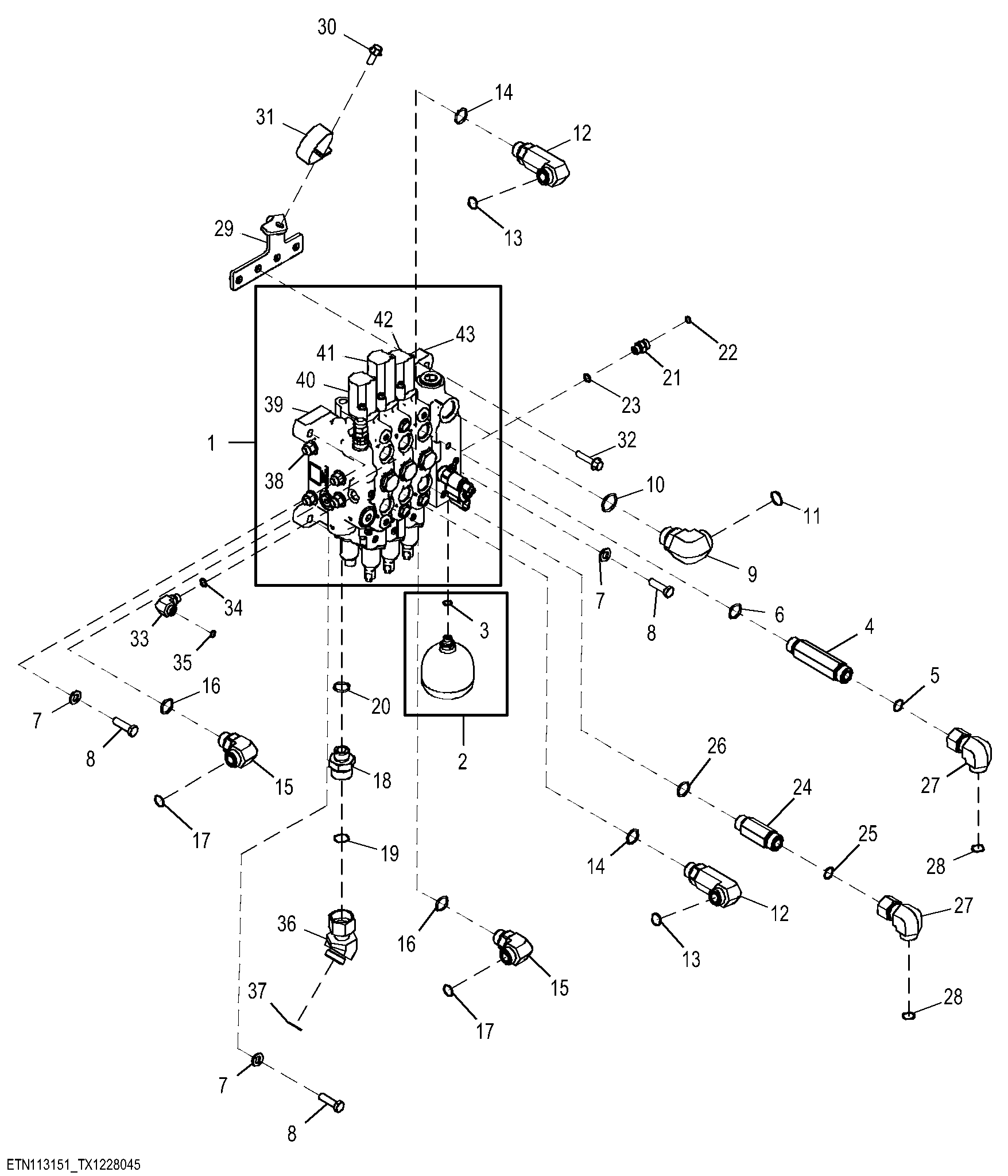

Three Spool Control Valve, Outside Dozer (OSD)

Нет текстового описания
