Multi-Shank Ripper Kit, Artic ( - 410816)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

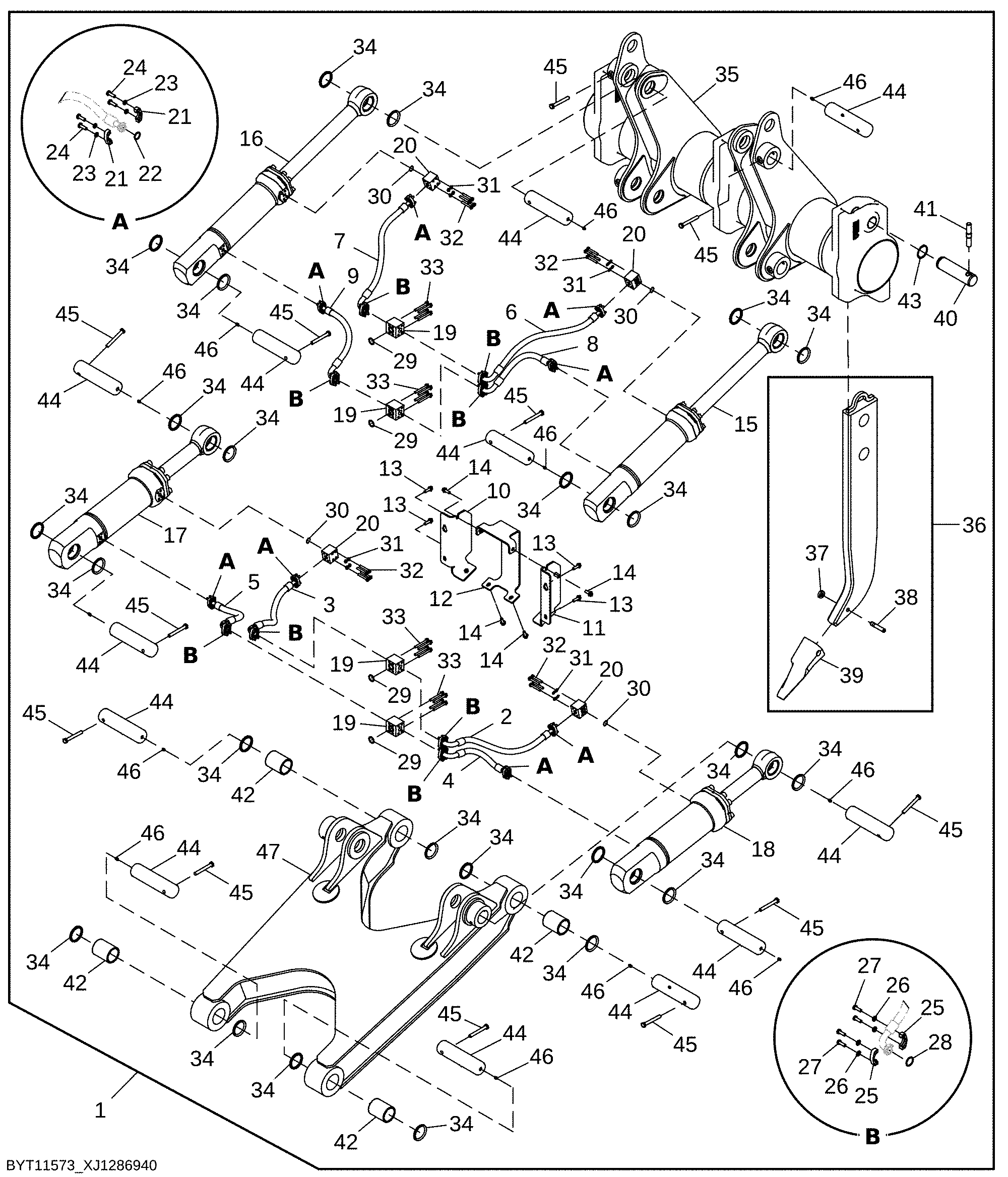

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11573	1	Ripper	WHOLE GOODS
2	AT511710	1	Hydraulic Hose	Fabricate
3	AT511710	1	Hydraulic Hose	Fabricate
4	AT511709	1	Hydraulic Hose	Fabricate
5	AT511709	1	Hydraulic Hose	Fabricate
6	AT511716	1	Hydraulic Hose	Ripper Pitch External, Rod
7	AT511716	1	Hydraulic Hose	Ripper Pitch External, Rod
8	AT507820	1	Hydraulic Hose	Ripper Pitch External, Head
9	AT507820	1	Hydraulic Hose	Fabricate
10	AT426128	1	Bracket	-
11	AT426127	1	Bracket	-
12	AT449960	1	Bracket	-
13	19M7791	4	Bolt	M12 X 40
14	19M7790	4	Screw	M12 X 35
15	AHC14747	1	Hydraulic Cylinder	Ripper Cylinder Upper Components on Separate Page
16	AHC14747	1	Hydraulic Cylinder	Ripper Cylinder Upper Components on Separate Page
17	AHC14749	1	Hydraulic Cylinder	Ripper Cylinder Lower Components on Separate Page
18	AHC14749	1	Hydraulic Cylinder	-
19	T308478	4	Flange Fitting	-
20	T343313	4	Flange Fitting	-
21	R29424	2	Flange Fitting	-
22	T59014	1	O-Ring	-
23	24M7106	4	Washer	10 X 18 X 2.500 mm
24	19M7662	4	Cap Screw	M10 X 30
25	H61354	2	Flange Fitting	-
26	24M7239	4	Washer	10.700 X 21 X 2.500 mm
27	19M7662	4	Cap Screw	M10 X 30
28	U12037	1	O-Ring	-
29	U12037	4	O-Ring	-
30	T59014	4	O-Ring	-
31	24M7106	16	Washer	10 X 18 X 2.500 mm
32	19M7875	16	Cap Screw	M10 X 70
33	19M7811	16	Screw	M10 X 90
34	T102137	24	Seal	-
35	AT382908	1	Toolbar	-
36	AT425926	3	Shank	-
37	T8E6359	1	Retainer	-
38	T8E6358	1	Pin	-
39	T9J8920	1	Tooth	-
40	T329687	3	Pin	-
41	T4T2479	3	Pin	-
42	T200780	4	Bushing	-
43	40M7065	3	Snap Ring	-
44	T352136	12	Pin Fastener	-
45	19M8351	12	Cap Screw	M16 X 125
46	JD7759	12	Lubrication Fitting	-
47	AT501192	1	Lift Arm	-
