Mechanical Angle Dozer Blade, Outside Dozer (OSD) ( - 351230)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT420378	2	Trunnion	-
2	A21602	24	Bushing	-
3	19M7883	24	Screw	M20 X 120
4	AT486156	1	Frame	Left Order Through Rockland Manufacturing
5	T290273	1	Step	-
6	T274981	1	Pivot	Line Fill
7	T7T5140HD	1	Step	-
8	T274986	1	Ball	-
9	AT486155	1	Frame	Right Order Through Rockland Manufacturing
10	T7T5140HD	1	Step	-
11	T290273	1	Step	-
12	T274981	1	Pivot	Line Fill
13	T350462	1	Ball	-
14	JD7759	1	Lubrication Fitting	-
15	15H585	1	Pipe Plug	3/4"
16	08H4836	16	Cap Screw	1-1/4" X 4"
17	12H235	16	Lock Washer	1-1/4"
18	14H1114	16	Nut	1-1/4"
19	T395574	2	Bushing	-
20	AT443498	1	Pin	-
21	T351427	1	Retainer	-
22	12H236	3	Lock Washer	3/4"
23	19H3027	3	Cap Screw	3/4" X 3-1/2"
24	T278653	2	Bushing	-
25	T274978	40	Shim	-
26	T275539	2	Cap	-
27	19M7734	8	Cap Screw	M24 X 220
28	24M7243	8	Washer	25.400 X 50 X 6 mm
29	14M7278	8	Nut	M24
30	AT486154	1	Dozer Blade	Order Through Rockland Manufacturing, INCLUDES T361434
30	T361434	2	Junction Block	-
31	T395575	1	Pin	-
32	T395581	4	Pin	-
33	19H3415	5	Cap Screw	3/4" X 5-1/2"
34	K40016	5	Lock Nut	-
35	T4T6505	1	End Bit	Right
36	T4T6506	1	End Bit	Left
37	T4T2993	2	Cutting Edge	-
38	T352103	1	Cutting Edge	-
39	09H1771	38	Bolt	7/8" X 3"
40	14H1044	38	Nut	7/8"
41	T395579	2	Ball Stud	-
42	T351421	2	Pin Fastener	-
43	11M7038	2	Cotter Pin	6.300 X 40 mm
44	T351428	4	Plate	-
45	14H1040	4	Nut	1/2"
46	24M7038	8	Washer	13.500 X 24 X 2.500 mm
47	K40014	6	Lock Nut	-
48	AT479479	4	Clevis	-
49	19H3170	6	Cap Screw	5/8" X 4-1/2"
50	K40015	14	Lock Nut	-
51	AT479480	1	Guard	-
52	24M7180	4	Washer	13 X 37 X 3 mm
53	12H301	4	Lock Washer	1/2"
54	19H2473	4	Cap Screw	1/2" X 1-3/4"
55	AT479913	2	Adjuster	-
56	AT486157	1	Brace	Right Order Through Rockland Manufacturing, INCLUDES T396230
56	T396230	1	Trunnion	-
57	AT486159	1	Brace	Left Order Through Rockland Manufacturing, INCLUDES T396230
57	T396230	1	Trunnion	-
58	T396149	56	Shim	0.77 mm (0.03 in)
59	T396231	2	Bearing Cap	-
60	19H3416	8	Cap Screw	5/8" X 6-1/2"
61	24M7097	8	Washer	17 X 28 X 2.500 mm
62	T395576	4	Pin	-
63	AT479283	2	Hydraulic Cylinder	Tilt Components On Separate Page
64	AT479476	1	Hose Guard	-
65	AT479477	1	Guard	Tilt Cylinder Left
66	T403084	2	Guard	-
67	19H3873	2	Cap Screw	1/2" X 5"
68	19H2472	4	Cap Screw	1/2" X 1"
69	T395577	2	Pin	-

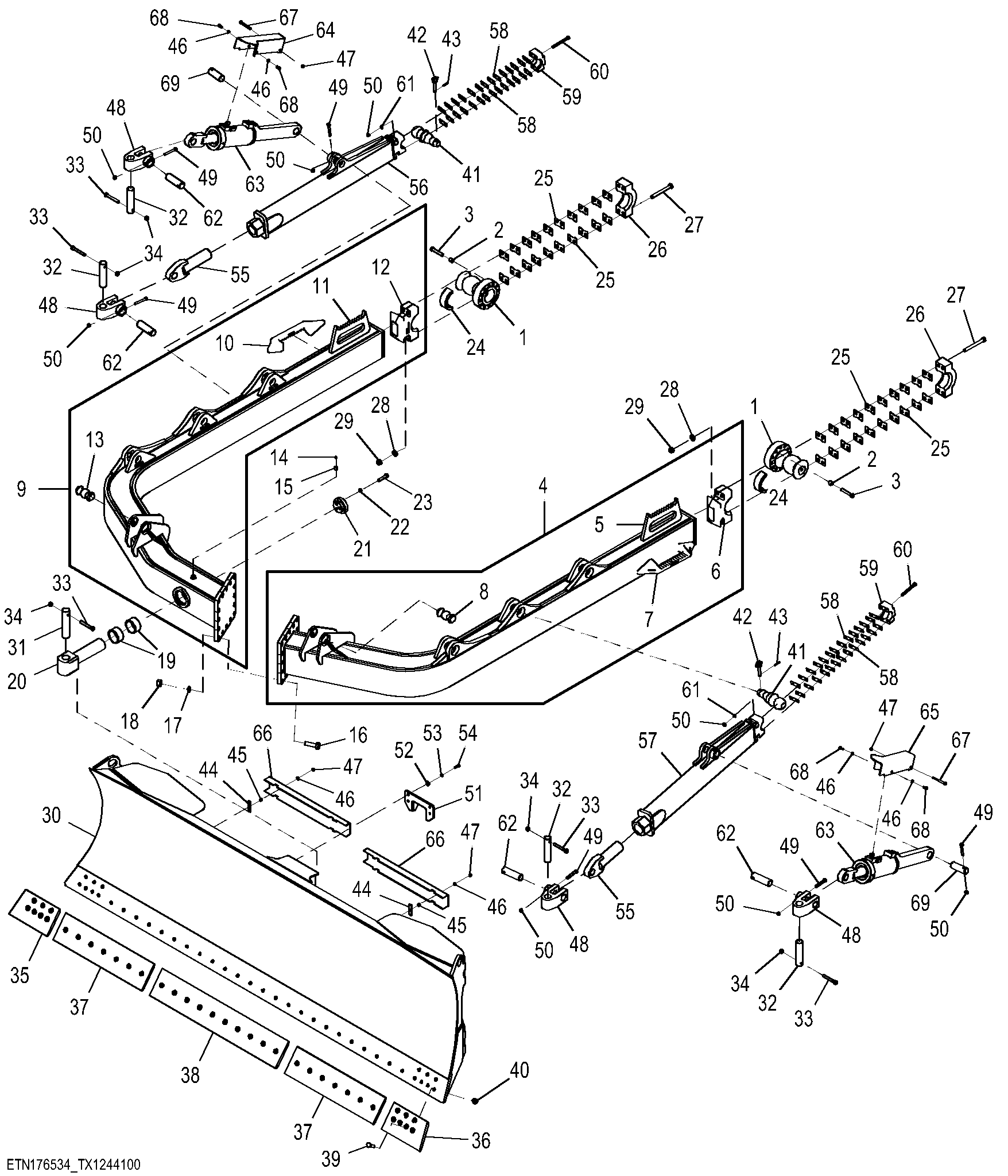

Mechanical Angle Dozer Blade, Outside Dozer (OSD) ( - 351230)
