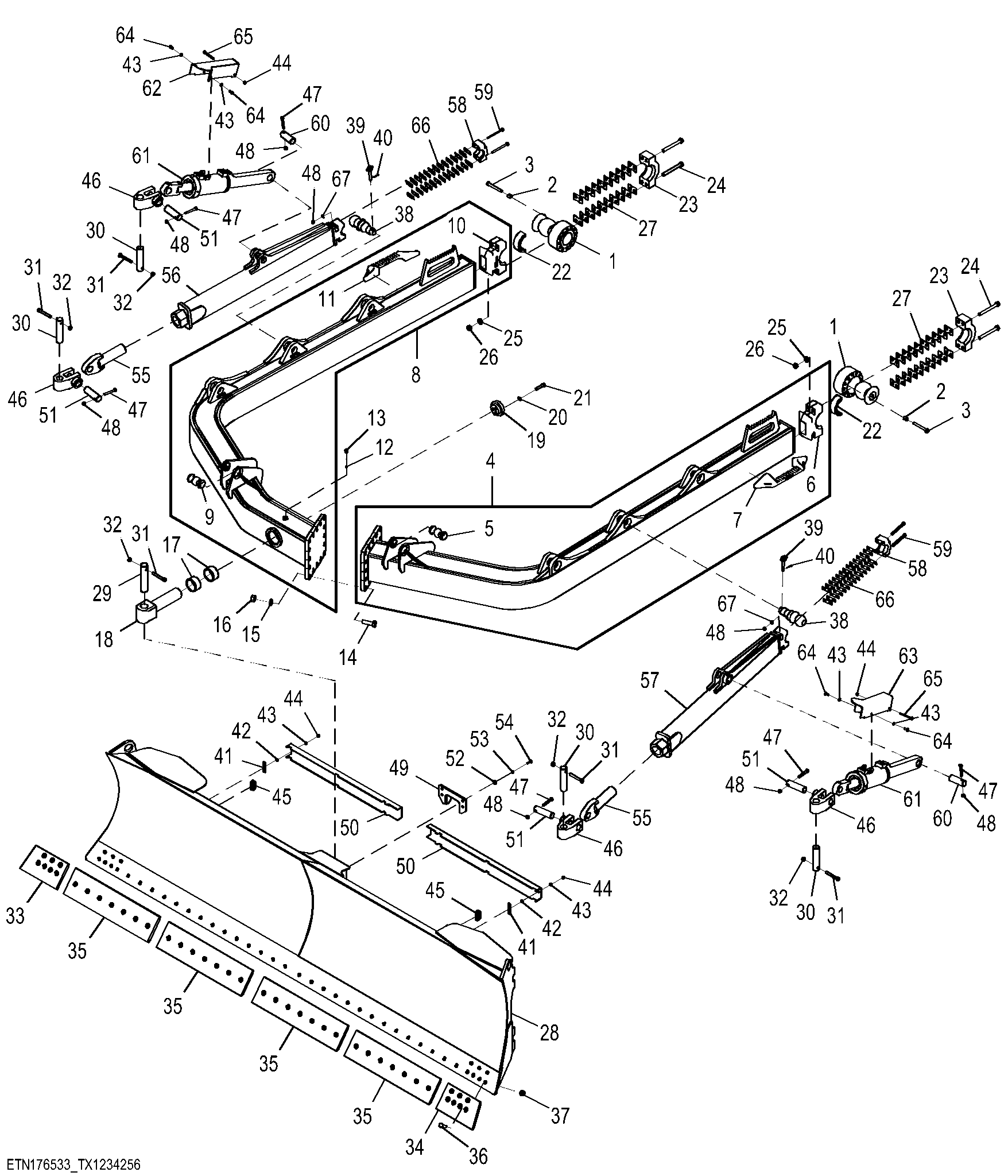

Mechanical Angle Dozer Blade, Low Ground Pressure (LGP) ( - 351230)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT420379	2	Trunnion	-
2	A21602	24	Bushing	-
3	19M8503	24	Cap Screw	M20 X 160
4	AT479275	1	Frame	Left Order Through Rockland Manufacturing, INCLUDES T290273
4	T290273	1	Step	-
5	T350462	1	Ball	-
6	T274981	1	Pivot	Line Fill
7	T7T5140HD	1	Step	-
8	AT479274	1	Frame	Right Order Through Rockland Manufacturing, INCLUDES T290273
8	T290273	1	Step	-
9	T350462	1	Ball	-
10	T274981	1	Pivot	Line Fill
11	T7T5140HD	1	Step	-
12	JD7759	1	Lubrication Fitting	-
13	15H585	1	Pipe Plug	3/4"
14	08H4836	16	Cap Screw	1-1/4" X 4"
15	12H235	16	Lock Washer	1-1/4"
16	14H1114	16	Nut	1-1/4"
17	T395574	2	Bushing	-
18	AT443498	1	Pin	-
19	T351427	1	Retainer	-
20	12H236	3	Lock Washer	3/4"
21	19H3027	3	Cap Screw	3/4" X 3-1/2"
22	T278653	2	Bushing	-
23	T275539	2	Cap	-
24	19M7734	8	Cap Screw	M24 X 220
25	24M7243	8	Washer	25.400 X 50 X 6 mm
26	14M7278	8	Nut	M24
27	T274978	40	Shim	1.062 mm (0.042 in)
28	AT479273	1	Dozer Blade	Order Through Rockland Manufacturing
29	T395575	1	Pin	-
30	T395581	4	Pin	-
31	19H3415	5	Cap Screw	3/4" X 5-1/2"
32	K40016	5	Lock Nut	-
33	T4T6505	1	End Bit	Right
34	T4T6506	1	End Bit	Left
35	T4T2993	4	Cutting Edge	-
36	09H1771	42	Bolt	7/8" X 3"
37	14H1044	42	Nut	7/8"
38	T395579	2	Ball Stud	-
39	T351421	2	Pin Fastener	-
40	11M7038	2	Cotter Pin	6.300 X 40 mm
41	T351428	6	Plate	-
42	14H1040	6	Nut	1/2"
43	24M7038	10	Washer	13.500 X 24 X 2.500 mm
44	K40014	8	Lock Nut	-
45	AT479478	2	Hose Clamp	-
46	AT479479	4	Clevis	-
47	19H3170	6	Cap Screw	5/8" X 4-1/2"
48	K40015	14	Lock Nut	-
49	AT479480	1	Guard	-
50	T395578	2	Guard	-
51	T395576	4	Pin	-
52	24M7180	4	Washer	13 X 37 X 3 mm
53	12H301	4	Lock Washer	1/2"
54	19H2473	4	Cap Screw	1/2" X 1-3/4"
55	AT479913	2	Adjuster	-
56	AT479276	1	Brace	Right Order Through Rockland Manufacturing, INCLUDES T396230
56	T396230	1	Trunnion	-
57	AT479277	1	Brace	Left Order Through Rockland Manufacturing, INCLUDES T396230
57	T396230	1	Trunnion	-
58	T396231	2	Bearing Cap	-
59	19H3416	8	Cap Screw	5/8" X 6-1/2"
60	T395577	2	Pin	-
61	AT479283	2	Hydraulic Cylinder	Tilt Components On Separate Page
62	AT479476	1	Hose Guard	-
63	AT479477	1	Guard	Tilt Cylinder Left
64	19H2472	4	Cap Screw	1/2" X 1"
65	19H3873	2	Cap Screw	1/2" X 5"
66	T396149	56	Shim	0.77 mm (0.03 in)
67	24M7097	8	Washer	17 X 28 X 2.500 mm
