Mechanical Angle Dozer Blade Kit, Low Ground Pressure (LGP)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT10451	1	Dozer Blade	-
2	AT420379	2	Trunnion	-
3	A21602	24	Bushing	-
4	19M8503	24	Cap Screw	M20 X 160
5	AT479275	1	Frame	Left Order Through Rockland Manufacturing, INCLUDES T290273
6	T350462	1	Ball	-
7	T274981	1	Pivot	Line Fill
8	T7T5140HD	1	Step	-
9	AT479274	1	Frame	Right Order Through Rockland Manufacturing, INCLUDES T290273
10	T350462	1	Ball	-
11	T274981	1	Pivot	Line Fill
12	T7T5140HD	1	Step	-
13	JD7759	1	Lubrication Fitting	-
14	15H585	1	Pipe Plug	3/4"
15	08H4836	16	Cap Screw	1-1/4" X 4"
16	12H235	16	Lock Washer	1-1/4"
17	14H1114	16	Nut	1-1/4"
18	T395574	2	Bushing	-
19	AT443498	1	Pin	-
20	T351427	1	Retainer	-
21	12H236	3	Lock Washer	3/4"
22	19H3027	3	Cap Screw	3/4" X 3-1/2"
23	T278653	2	Bushing	-
24	T275539	2	Cap	-
25	19M7734	8	Cap Screw	M24 X 220
26	24M7243	8	Washer	25.400 X 50 X 6 mm
27	14M7278	8	Nut	M24
28	T274978	40	Shim	-
29	AT479273	1	Dozer Blade	-
30	T395575	1	Pin	-
31	T395581	4	Pin	-
32	19H3415	5	Cap Screw	3/4" X 5-1/2"
33	K40016	5	Lock Nut	-
34	T4T6505	1	End Bit	Right
35	T4T6506	1	End Bit	Left
36	T4T2993	4	Cutting Edge	-
37	09H1771	42	Bolt	7/8" X 3"
38	14H1044	42	Nut	7/8"
39	T395579	2	Ball Stud	-
40	T351421	2	Pin Fastener	-
41	11M7038	2	Cotter Pin	6.300 X 40 mm
42	T351428	6	Plate	-
43	14H1040	6	Nut	1/2"
44	24M7038	10	Washer	13.500 X 24 X 2.500 mm
45	K40014	8	Lock Nut	-
46	AT479478	2	Hose Clamp	-
47	AT479479	4	Clevis	-
48	19H3170	6	Cap Screw	5/8" X 4-1/2"
49	K40015	14	Lock Nut	-
50	AT479480	1	Guard	-
51	T395578	2	Guard	-
52	T395576	4	Pin	-
53	24M7180	4	Washer	13 X 37 X 3 mm
54	12H301	4	Lock Washer	1/2"
55	19H2473	4	Cap Screw	1/2" X 1-3/4"
56	AT479913	2	Adjuster	-
57	AT479276	1	Brace	Right Order Through Rockland Manufacturing, INCLUDES T396230
58	AT479277	1	Brace	Left Order Through Rockland Manufacturing, INCLUDES T396230
59	T396231	2	Bearing Cap	-
60	19H3416	8	Cap Screw	5/8" X 6-1/2"
61	T395577	2	Pin	-
62	AT479283	2	Hydraulic Cylinder	Tilt Components On Separate Page
63	AT479476	1	Hose Guard	-
64	AT479477	1	Guard	Tilt Cylinder Left
65	19H2472	4	Cap Screw	1/2" X 1"
66	19H3873	2	Cap Screw	1/2" X 5"
67	T396149	56	Shim	0.77 mm (0.03 in)
68	24M7097	8	Washer	17 X 28 X 2.500 mm
69	AT479408	1	Hydraulic Hose	-
70	AT479409	1	Hydraulic Hose	-
71	AT479409	1	Hydraulic Hose	-
72	R29424	20	Flange Fitting	-
73	T59014	10	O-Ring	-
74	24M7106	40	Washer	10 X 18 X 2.500 mm
75	19M7662	39	Cap Screw	M10 X 30
76	AT479410	1	Hydraulic Hose	-
77	AT479410	1	Hydraulic Hose	-
78	F122734	1	Guard	-
79	T240160	1	Clamp	-
80	T399768	1	Guard	-
81	T399768	1	Guard	-

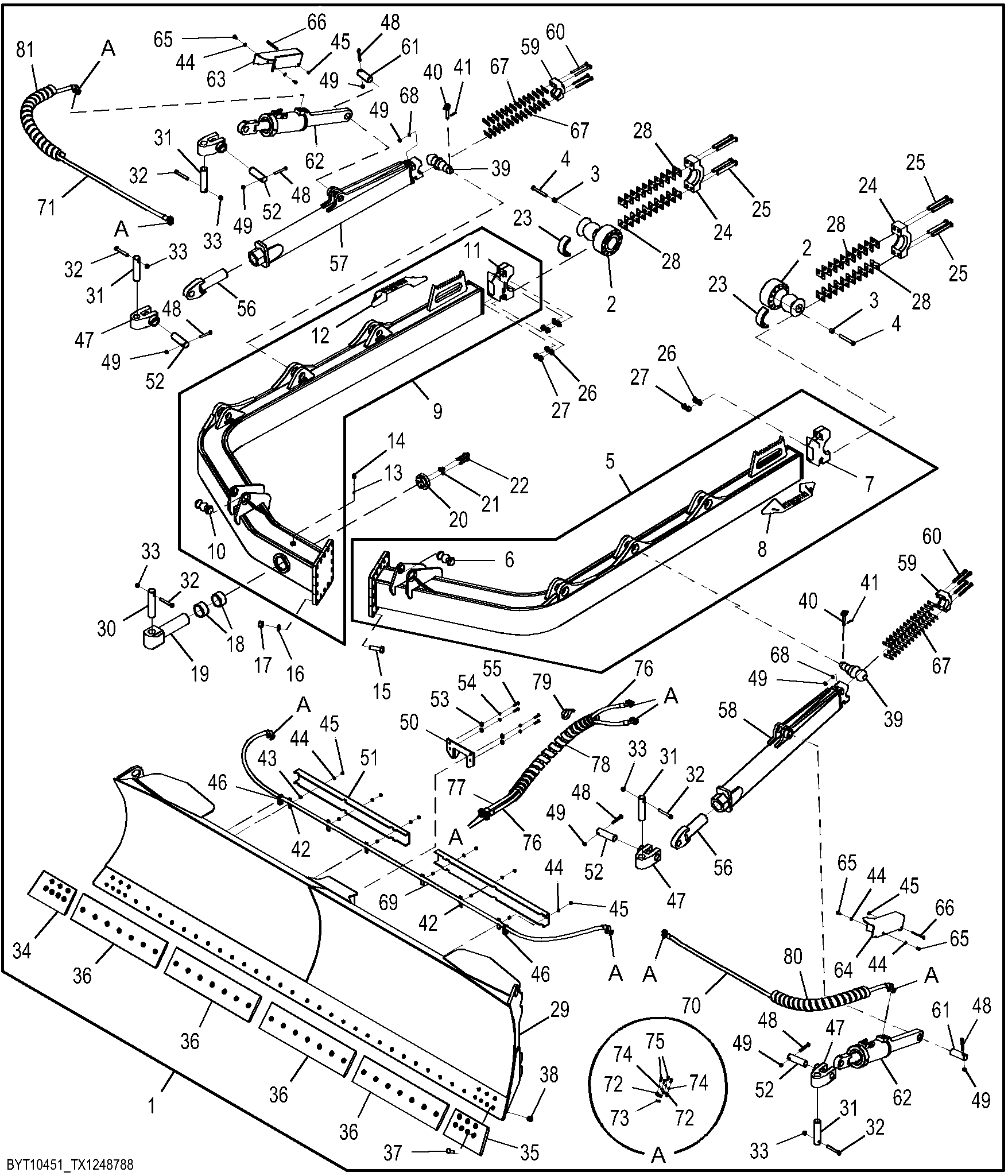

Mechanical Angle Dozer Blade Kit, Low Ground Pressure (LGP)
