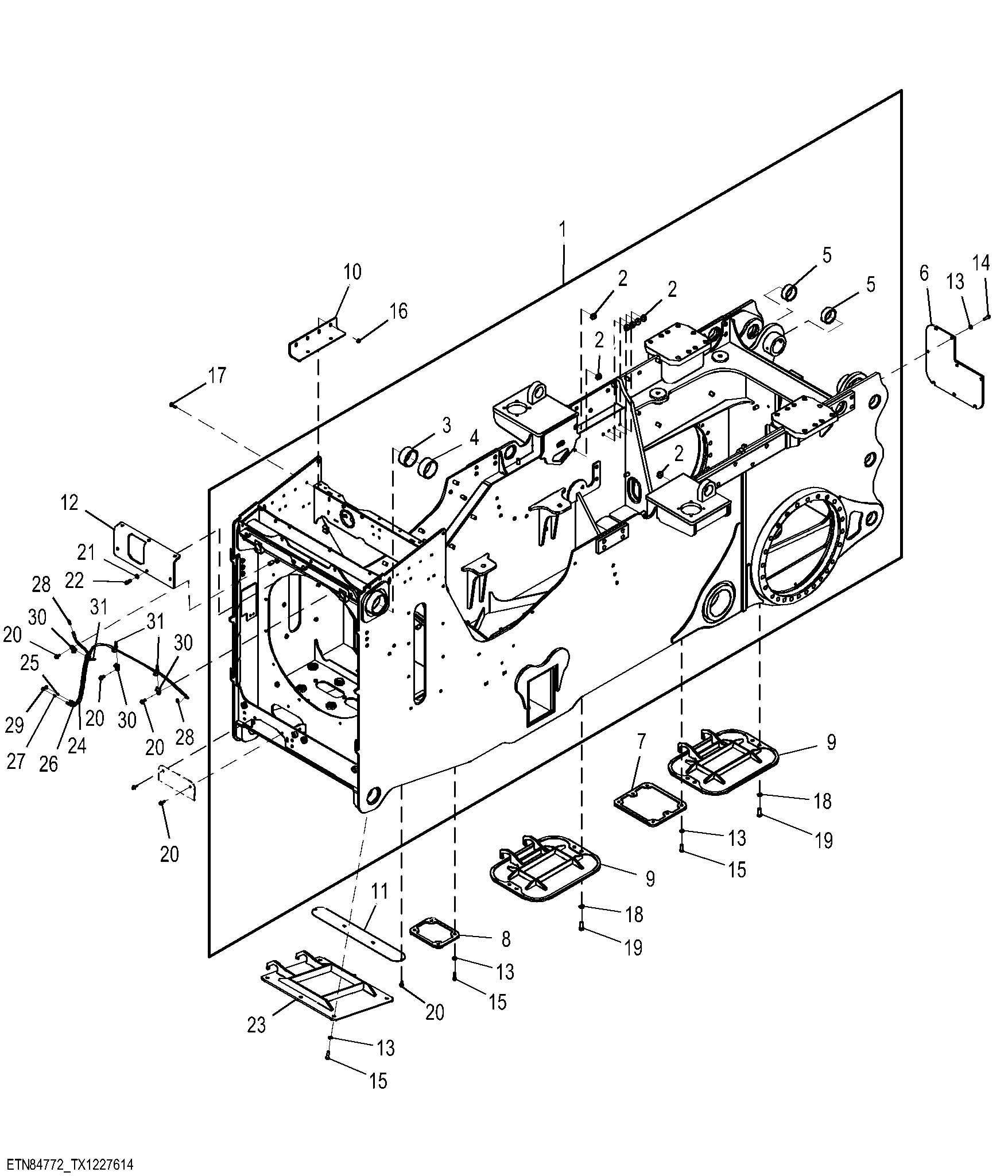

Main Frame and Bottom Guards, Outside Dozer (OSD)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT444514	1	Frame	Convenience Assembly
2	T166783	7	Bushing	-
3	T72044	2	Bushing	ORDER T408678
3	T408678	1	Bushing	-
4	T72045	2	Bushing	ORDER T408680
4	T408680	1	Bushing	-
5	T329885	12	Bushing	-
6	T286777	1	Cover	Access Panel Rear
7	AT382984	1	Cover	Access Panel
8	AT354834	1	Cover	Access Panel
9	AT452120	2	Cover	Access Panel
10	AT455394	2	Bracket	-
11	T362096	1	Plate	-
12	AT453661	1	Bracket	-
13	24M7240	23	Washer	13 X 25 X 3 mm
14	19M7403	7	Cap Screw	M12 X 35
15	19M7493	16	Cap Screw	M12 X 40
16	14M7296	8	Flange Nut	M10
17	03M7193	8	Bolt	M10 X 35
18	24M7053	8	Washer	17 X 30 X 3 mm
19	19M7488	8	Cap Screw	M16 X 40
20	19M7785	7	Screw	M10 X 25
21	24M7047	3	Washer	13 X 24 X 2.500 mm
22	19M8011	3	Cap Screw	M12 X 30
23	AT381308	1	Cover	Bottom Front
24	AT221302	1	Hydraulic Hose	Remote Lube Hose Lift Cylinders
25	JD7797	1	Lubrication Fitting	Remote Lube Hose Lift Cylinders
26	AT209423	1	Hydraulic Hose	Remote Lube Hose Lift Cylinders
27	JD7797	1	Lubrication Fitting	Remote Lube Hose Lift Cylinders
28	T75447	2	Elbow Fitting	-
29	E12379	2	Nut	-
30	N380408	3	Clamp	-
31	H224073	3	Tie Band	-

Main Frame and Bottom Guards, Outside Dozer (OSD)
