Four Spool Control Valve, Outside Dozer (OSD)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T190753	8	Washer	-
1	AT498382	1	Hyd Actuated Control Valve	INCLUDES (8) T190753, (4) T313559 AND AT319092; SUB FOR AT444586
1	AT319092	1	Check Valve	-
1	T313559	4	Tie Rod Assembly	-
2	AT195957	1	Hydraulic Accumulator	-
3	T353906	1	Fitting	-
4	T77858	1	O-Ring	-
5	51M7047	1	O-Ring	23.600 X 2.900 mm
6	24M7240	3	Washer	13 X 25 X 3 mm
7	19M7493	3	Cap Screw	M12 X 40
8	38H3037	1	Elbow Fitting	-
9	R29936	1	O-Ring	-
10	T76938	1	O-Ring	-
11	38H3492	2	Elbow Fitting	-
12	T77858	2	O-Ring	-
13	U12547	2	O-Ring	-
14	38H3007	2	Adapter Fitting	-
15	U12547	2	O-Ring	-
16	T77858	2	O-Ring	-
17	T378540	2	Fitting	-
18	T77858	2	O-Ring	-
19	U12547	2	O-Ring	-
20	38H5282	4	Adapter Fitting	-
21	T77858	4	O-Ring	-
22	38H3179	1	Adapter Fitting	-
23	T76938	1	O-Ring	-
24	U12547	1	O-Ring	-
25	38H3160	1	Adapter Fitting	-
26	T77613	1	O-Ring	-
27	R26448	1	O-Ring	-
28	38H3163	1	Adapter Fitting	-
29	T77858	1	O-Ring	-
30	U12547	1	O-Ring	-
31	AT464222	1	Bracket	-
32	N205452	1	Clamp	-
33	19M7785	1	Screw	M10 X 25
34	19M8320	1	Screw	M10 X 45
35	38H3004	1	Adapter Fitting	-
36	R26448	1	O-Ring	-
37	T77613	1	O-Ring	-
38	38H5374	1	Adapter Fitting	-
39	T76938	1	O-Ring	-
40	-	1	Part 43	Inlet Valve Section Components on Separate Page, NSEP
41	-	1	Part 44	Tilt Valve Section Components on Separate Page, NSEP
42	-	1	Part 45	Lift Valve Section Components on Separate Page, NSEP
43	-	1	Part 46	Auxiliary Valve Section (1) Components on Separate Page, NSEP
44	-	1	Part 47	Auxiliary Valve Section (2) Components on Separate Page, NSEP
45	-	1	Part 48	Outlet Valve Section Components on Separate Page, NSEP

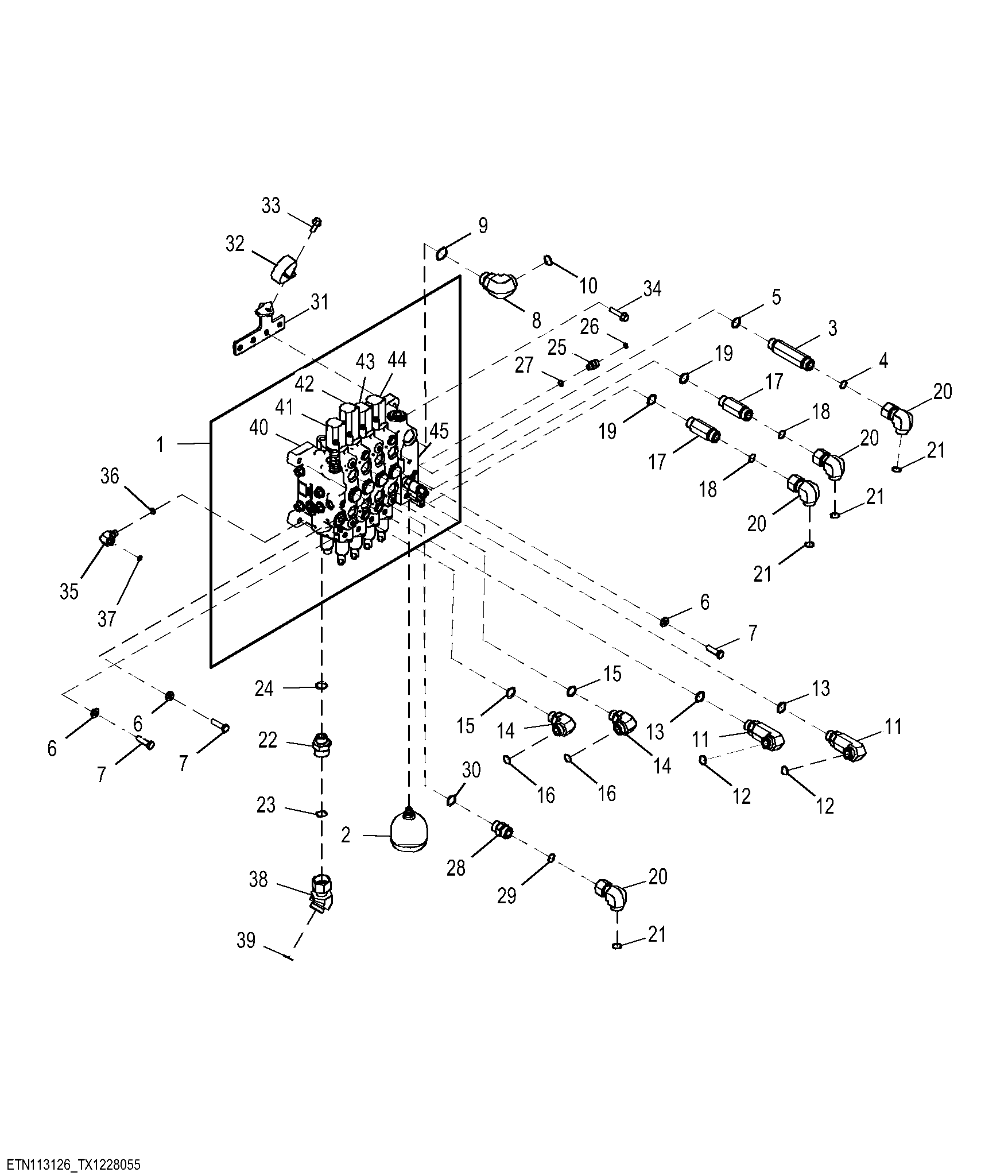

Four Spool Control Valve, Outside Dozer (OSD)

Нет текстового описания
