Pitch Angle Hydraulics

Нет текстового описания

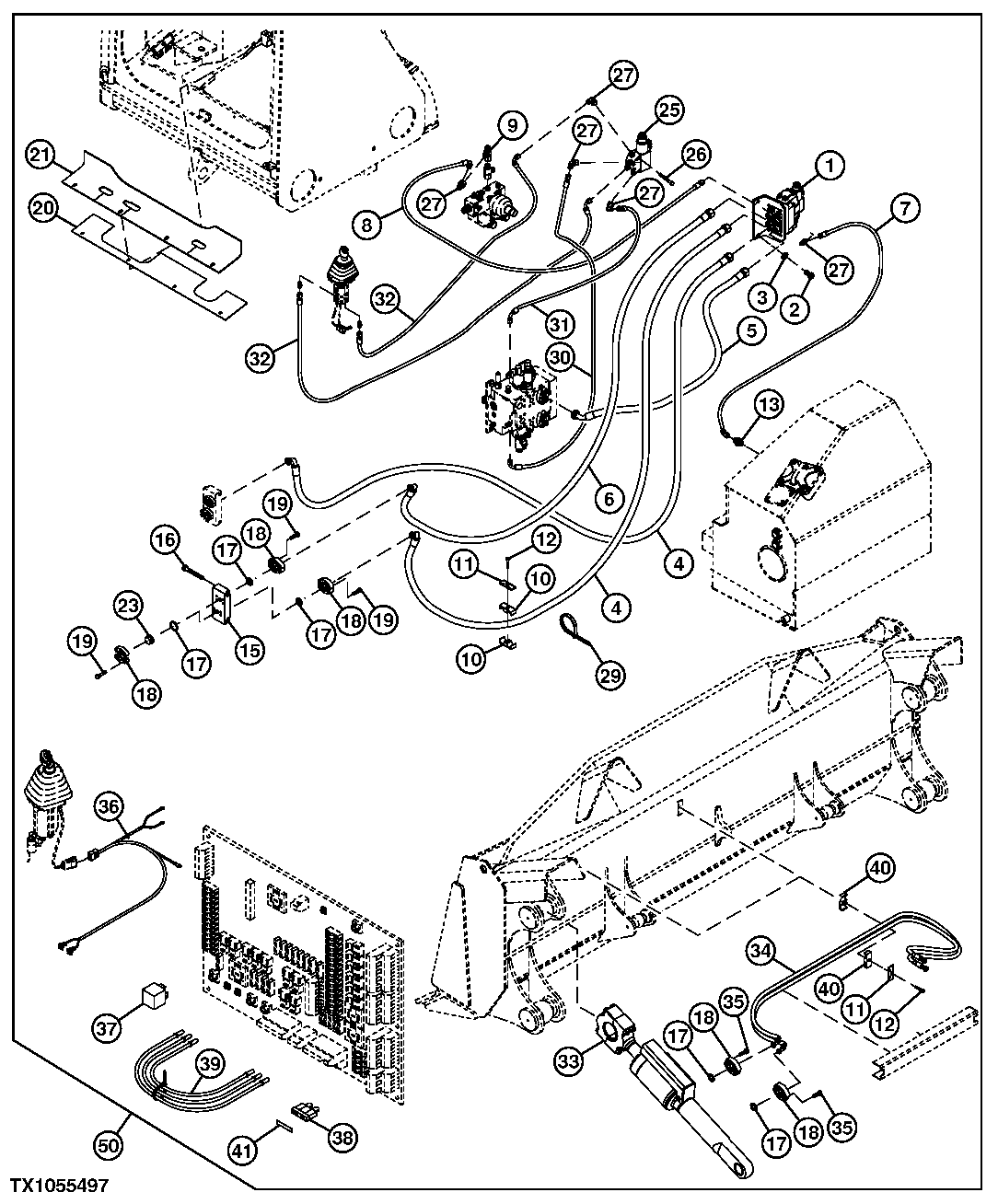

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Components On Another Page
2	19M7872	2	Cap Screw	M12 X 25, SUB FOR 19M7268
3	24M7240	2	Washer	13 X 25 X 3 mm
4	LW10353638	2	Hydraulic Hose	INCLUDES 51M7110 AND R69667
4	51M7110	1	O-Ring	16.300 X 2.400 mm
4	R69667	1	O-Ring	-
5	LW10353637	1	Hydraulic Hose	INCLUDES 51M7110 AND T59014
5	51M7110	1	O-Ring	16.300 X 2.400 mm
5	T59014	1	O-Ring	-
6	LW10353636	1	Hydraulic Hose	INCLUDES 51M7110 AND 51M7107
6	51M7110	1	O-Ring	16.300 X 2.400 mm
6	51M7107	1	O-Ring	9 X 1.500 mm
7	LW5604160	1	Hydraulic Hose	INCLUDES (2) 51M7106
7	51M7106	2	O-Ring	7.500 X 1.500 mm
8	LW5603780	1	Hydraulic Hose	INCLUDES (2) 51M7106
8	51M7106	2	O-Ring	7.500 X 1.500 mm
9	XEL10LCF	1	Fitting	This Application, SUB FOR AT218872 AND LW247242302
10	AT277151	14	Clip	-
11	AT274759	9	Cover	-
12	19M7164	9	Cap Screw	M8 X 50
13	LW7021521	1	Fitting	SUB FOR AT333700
15	AT264814	1	Junction Block	-
16	19M7479	2	Cap Screw	M10 X 80
17	LW10490785	6	O-Ring	SUB FOR LW10290521
18	LW10286357	12	Flange	-
19	19M7513	16	Cap Screw	M8 X 30
20	LW9411819	1	Plate	-
21	LW9411820	1	Plate	-
23	AT264902	2	Plug	-
25	-	1	Part 30	Components On Another Page
26	19M7529	2	Cap Screw	M6 X 55, SUB FOR AT264648
27	XEW10LOMDCF	5	Adapter Fitting	SUB FOR AT218871
27	51M7106	1	O-Ring	7.500 X 1.500 mm
29	R44302	9	Tie Band	SUB FOR AT314698
30	AT312471	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
30	51M7106	2	O-Ring	7.500 X 1.500 mm
31	LW10296801	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106, SUB FOR AT265449
31	51M7106	2	O-Ring	7.500 X 1.500 mm
32	AT310372	2	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
32	51M7106	2	O-Ring	7.500 X 1.500 mm
33	-	1	Part 41	Components On Another Page
34	LW10454903	2	Hydraulic Hose	Fabricate
34	AT265483	2	Hydraulic Hose	Fabricate, INCLUDES (2) R69667, LGP
34	R69667	2	O-Ring	-
35	19M7407	8	Cap Screw	M8 X 25
36	LW9414225	1	Wiring Harness	-
37	AT274439	1	Relay	-
38	57M7124	1	Fuse	SUB FOR AT218502
39	LW9408737	1	Wiring Harness	-
40	AT264775	4	Hose Clamp	-
41	-	1	Part 51	-
50	AT357965	1	Field Installation Kit	Pitch Angle Hydraulics
50	AT339936	1	Field Installation Kit	Pitch Angle Hydraulics, LGP
