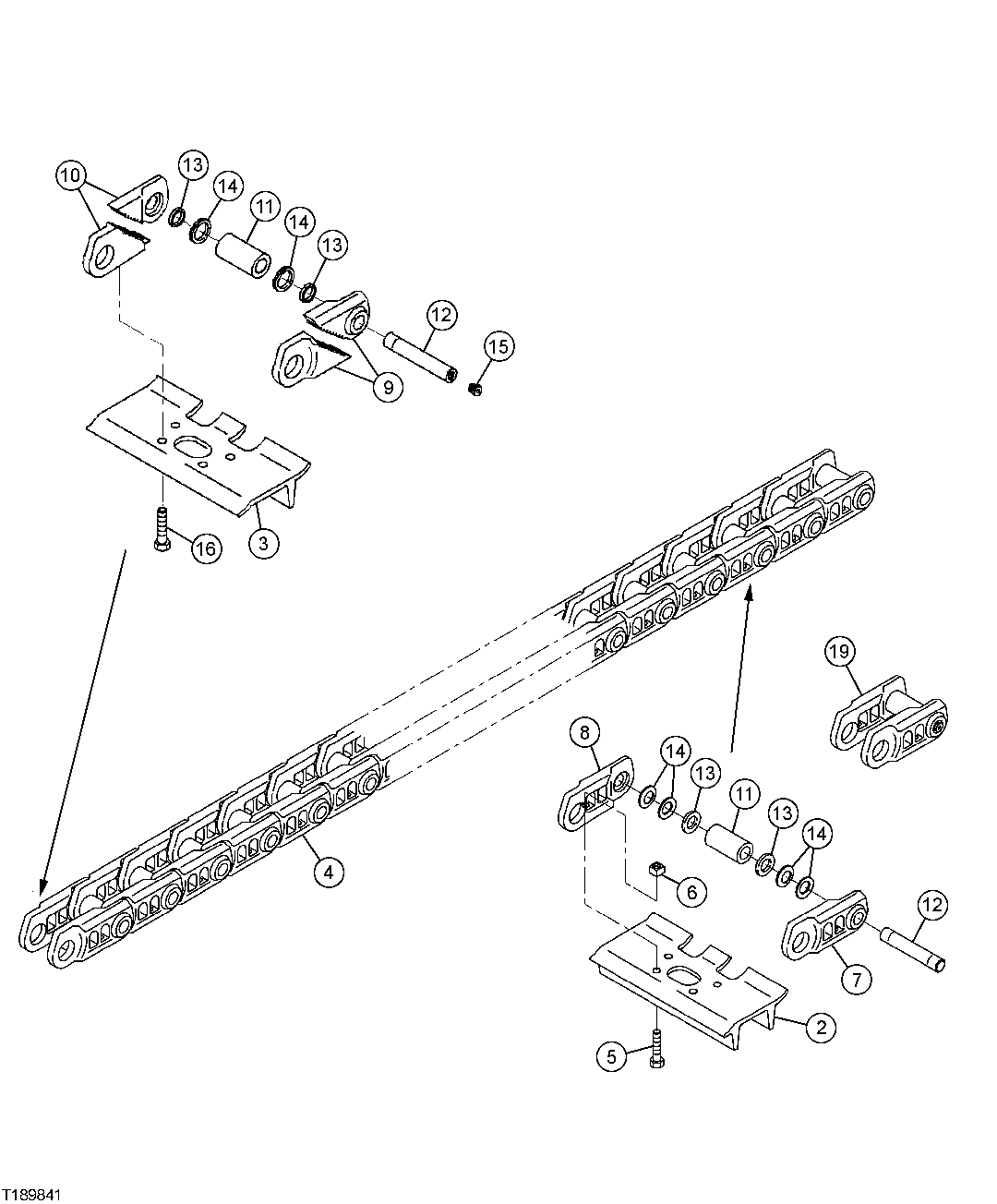

TRACK CHAIN,TRACK CHAIN LINKS AND TRACK SHOES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	AT278867	42	Single Bar Shoe	(20IN MODERATE SERVICE SHOE) (FOR 43 LINK CHAIN)
2	AT279204	39	Single Bar Shoe	(24IN EXTENDED SERVICE SHOE) (FOR 40 LINK CHAIN)
2	AT278868	42	Single Bar Shoe	(24IN MODERATE SERVICE SHOE) (FOR 43 LINK CHAIN)
2	AT278869	39	Single Bar Shoe	(28IN MODERATE SERVICE SHOE) (FOR 40 LINK CHAIN)
2	AT278869	42	Single Bar Shoe	(28IN MODERATE SERVICE SHOE) (FOR 43 LINK CHAIN)
2	AT279018	42	Single Bar Shoe	(32IN MODERATE SERVICE SHOE) (FOR 43 LINK CHAIN)
2	AT279019	42	Single Bar Shoe	(36IN MODERATE SERVICE SHOE) (FOR 43 LINK CHAIN)
2	AT279203	39	Single Bar Shoe	(20IN EXTENDED SERVICE SHOE) (FOR 40 LINK CHAIN)
3	AT279206	1	Single Bar Shoe	(24IN SHOE MASTER) (EXTENDED SERVICE) (FOR 40 LINK CHAIN)
3	AT279202	1	Single Bar Shoe	(36IN SHOE MASTER) (FOR 43 LINK CHAIN)
3	AT279201	1	Single Bar Shoe	(32IN SHOE MASTER) (FOR 43 LINK CHAIN)
3	AT278872	1	Single Bar Shoe	(28IN SHOE MASTER) (FOR BOTH 40 AND 43 LINK CHAIN)
3	AT278871	1	Single Bar Shoe	(24IN SHOE MASTER) (MODERATE SERVICE) (FOR 43 LINK CHAIN)
3	AT278870	1	Single Bar Shoe	(20IN SHOE MASTER) (MODERATE SERVICE) (FOR 43 LINK CHAIN)
3	AT279205	1	Single Bar Shoe	(20IN SHOE MASTER) (EXTENDED SERVICE) (FOR 40 LINK CHAIN)
4	AT319223	2	Track Assembly With Shoes	(LT) (43L) (LUBED) (24 SHOES)
4	AT319226	2	Track Assembly With Shoes	(LT) (43L) (LUBED) (20 SHOES)
4	AT319222	2	Track Assembly With Shoes	(LGP) (43L) (LUBED) (36 SHOES)
4	AT319221	2	Track Assembly With Shoes	(LGP) (43L) (LUBED) (32 SHOES)
4	AT319214	2	Track Assembly With Shoes	(LGP) (43L) (LUBED) (28 SHOES)
4	AT319215	2	Track Assembly With Shoes	(40L) (LUBED) (20 SHOES)
4	-	2	Part 19	(FOR 40 LINK CHAIN) ( AT318233 NLA)
4	-	2	Part 18	(FOR LGP AND LT MODELS) (FOR 43 LINK CHAIN) ( AT318234 NLA)
4	AT278874	2	Track Chain W/O Shoes	(43 LINK CHAIN)
4	AT278873	2	Track Chain W/O Shoes	(40 LINK CHAIN)
4	AT319216	2	Track Assembly With Shoes	(40L) (LUBED) (24 SHOES)
5	T189529	156	Cap Screw	(FOR 40 LINK CHAIN)
5	T189529	168	Cap Screw	(FOR 43 LINK CHAIN)
6	T189528	156	Nut	(FOR 40 LINK CHAIN)
6	T189528	168	Nut	(FOR 43 LINK CHAIN)
7	AT278866	39	Track Link	(FOR 40 LINK CHAIN)
7	AT278866	42	Track Link	(FOR 43 LINK CHAIN)
7	-	42	Part 33	(FOR LGP AND LT MODELS) (FOR 43 LINK CHAIN) ( T213546 NLA)
8	-	42	Part 36	(FOR LGP AND LT MODELS) (FOR 43 LINK CHAIN) ( T213547 NLA)
8	AT278865	39	Track Link	(FOR 40 LINK CHAIN)
8	AT278865	42	Track Link	(FOR 43 LINK CHAIN)
9	AT279196	1	Master Track LINK-SPLIT-LH	-
10	AT279195	1	Master Track LINK-SPLIT-RH	-
11	T189531	40	Bushing	(FOR 40 LINK CHAIN)
11	T189531	43	Bushing	(FOR 43 LINK CHAIN)
12	T189365	40	Pin	(FOR 40 LINK CHAIN)
12	T189365	43	Pin	(FOR 43 LINK CHAIN)
13	T189370	80	Thrust Ring	(FOR 40 LINK CHAIN)
13	T189370	86	Thrust Ring	(FOR 43 LINK CHAIN)
14	T189530	80	Seal	(FOR 40 LINK CHAIN)
14	T189530	86	Seal	(FOR 43 LINK CHAIN)
15	T149248	40	Plug	(FOR 40 LINK CHAIN) (PLASTIC)
15	T149248	43	Plug	(FOR 43 LINK CHAIN) (PLASTIC)
15	F434249	40	Plug	(FOR 40 LINK CHAIN) (RUBBER)
15	F434249	43	Plug	(FOR LGP AND LT MODELS) (FOR 43 LINK CHAIN)
16	T360974	4	Master Track Bolt	SUB FOR T189301

TRACK CHAIN,TRACK CHAIN LINKS AND TRACK SHOES
