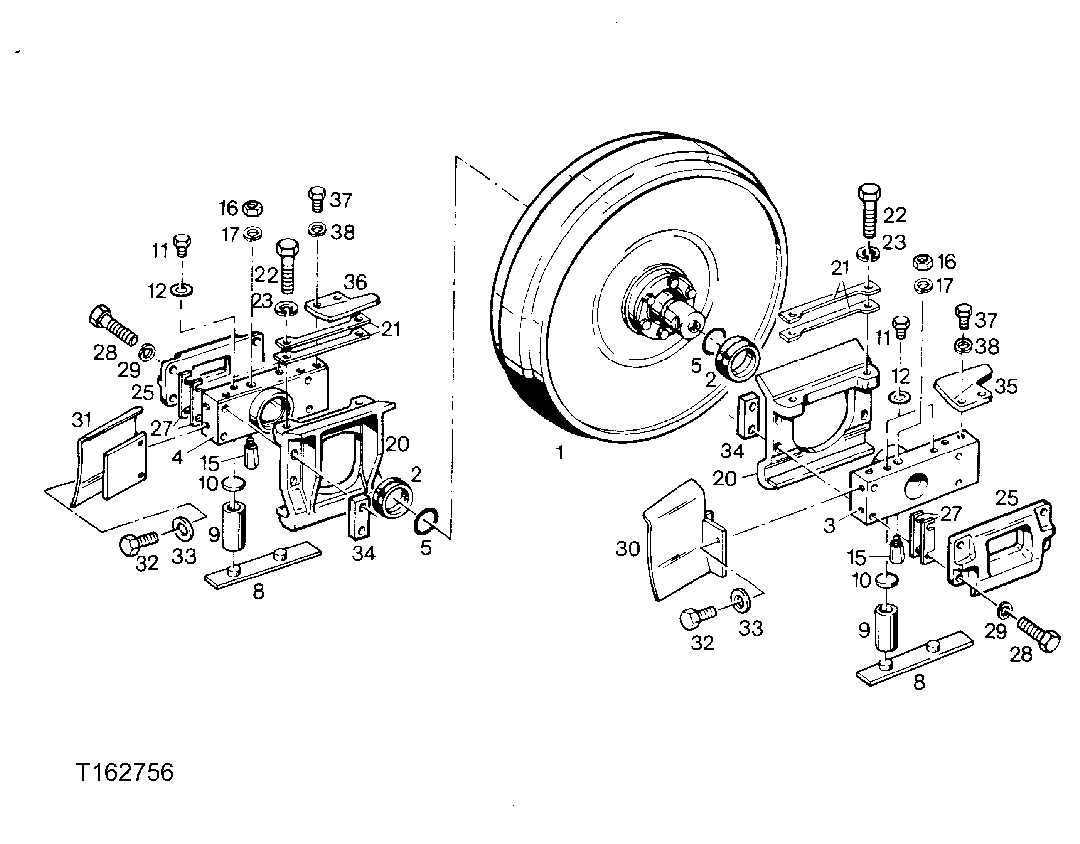

TRACK CHAIN IDLER WHEEL(COMPLETE ASSEMBLY ONLY) IDLER BRACKETS GUIDES AND GUARDS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278803	1	Idler	(IDLER) (COMPONENTS ON ANOTHER PAGE)
2	AT305855	1	Seal	(SUB FOR AT64776)
3	AT264758	1	Guide	-
4	AT264759	1	Guide	-
5	AT264849	2	O-Ring	-
8	AT264995	2	Wear Plate	-
9	AT274298	4	Bushing	-
10	AT275286	4	Washer	-
11	19M7744	4	Cap Screw	M12 X 35
12	24M7623	4	Washer	13 X 24 X 2.500 mm, SUB FOR LW10289804
15	AT264972	2	Screw	RING
16	14M7275	2	Nut	M12
17	24M7240	2	Washer	13 X 25 X 3 mm
20	AT264607	2	Guide	(INCLUDES AT276394, INNER
20	AT276394	2	Strip	(NOT ILLUSTRATED) (RECTANGULAR WEAR STRIP USED WITH AT264607)
21	AT276406	6	Plate	-
22	19M7719	4	Cap Screw	M16 X 70
23	T116461	4	Washer	(SUB FOR 24M7280)
25	AT322858	2	Guide	(SUB FOR AT264595)
27	AT264946	16	Shim	-
28	19M7415	8	Cap Screw	M12 X 130, (SUB FOR 19M7758)
29	24M7429	8	Washer	13 X 24 X 2.500 mm
30	AT264927	1	Guard	(LEFT HAND DEFLECTION PLATE)
31	AT264928	1	Guard	(RIGHT HAND DEFLECTION PLATE)
32	19M7488	4	Cap Screw	M16 X 40
33	T116461	4	Washer	(SUB FOR 24M7280)
34	AT264880	2	Plate	-
35	AT264878	1	Cover	-
36	AT264879	1	Cover	-
37	19M8011	4	Cap Screw	M12 X 30
38	24M7429	4	Washer	13 X 24 X 2.500 mm
