OPERATOR PLATFORM COMPONENT PARTS, PARK LOCK LEVER, CAB PIVOT AND BEARINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SERVICE WITH COMPLETE ASSEMBLY, AT265397)
2	AT306739	1	Bushing	-
5	-	1	Part 3	(SERVICE WITH COMPLETE ASSEMBLY, AT265397)
11	AT306741	2	Thrust Washer	-
12	AT274053	2	Spring	-
13	AT309788	1	Set Screw	(SUB FOR AT306751)
14	AT274199	1	Knob	-
15	AT303318	1	Nut	-
16	AT306752	1	Set Screw	-
21	AT264620	2	Bushing	-
22	AT265567	2	Support	(CAB PIVOT AND BEARINGS)
23	AT275643	2	Isolator	(CAB MOUNT)
25	AT264992	2	Washer	-
26	AT264585	2	Cap Screw	-
27	19M7407	2	Cap Screw	M8 X 25, (SUB FOR 19M7163)
28	24M7055	2	Washer	8.400 X 16 X 1.600 mm
40	AT265397	1	Lever	(PARK LOCK)
41	19M7938	2	Cap Screw	M10 X 20, (SUB FOR 19M7166)
42	24M7213	2	Washer	10.500 X 25 X 4 mm
50	AT265704	1	Bracket	-
52	AT218439	2	Socket Head Screw	-
54	19M7768	4	Screw	M6 X 16
55	24M7088	4	Washer	6.600 X 12 X 1.600 mm
56	AT265691	1	Isolator	-
57	AT302492	1	Plate	-
58	LW409606001	8	Screw	(SUB FOR AT276741)
70	AT265690	1	Bracket	-
71	19M7488	2	Cap Screw	M16 X 40
72	24H1367	2	Washer	21/32" X 1-1/4" X 1/4"
95	AT265703	1	Platform	-
96	AT264733	1	Platform	-

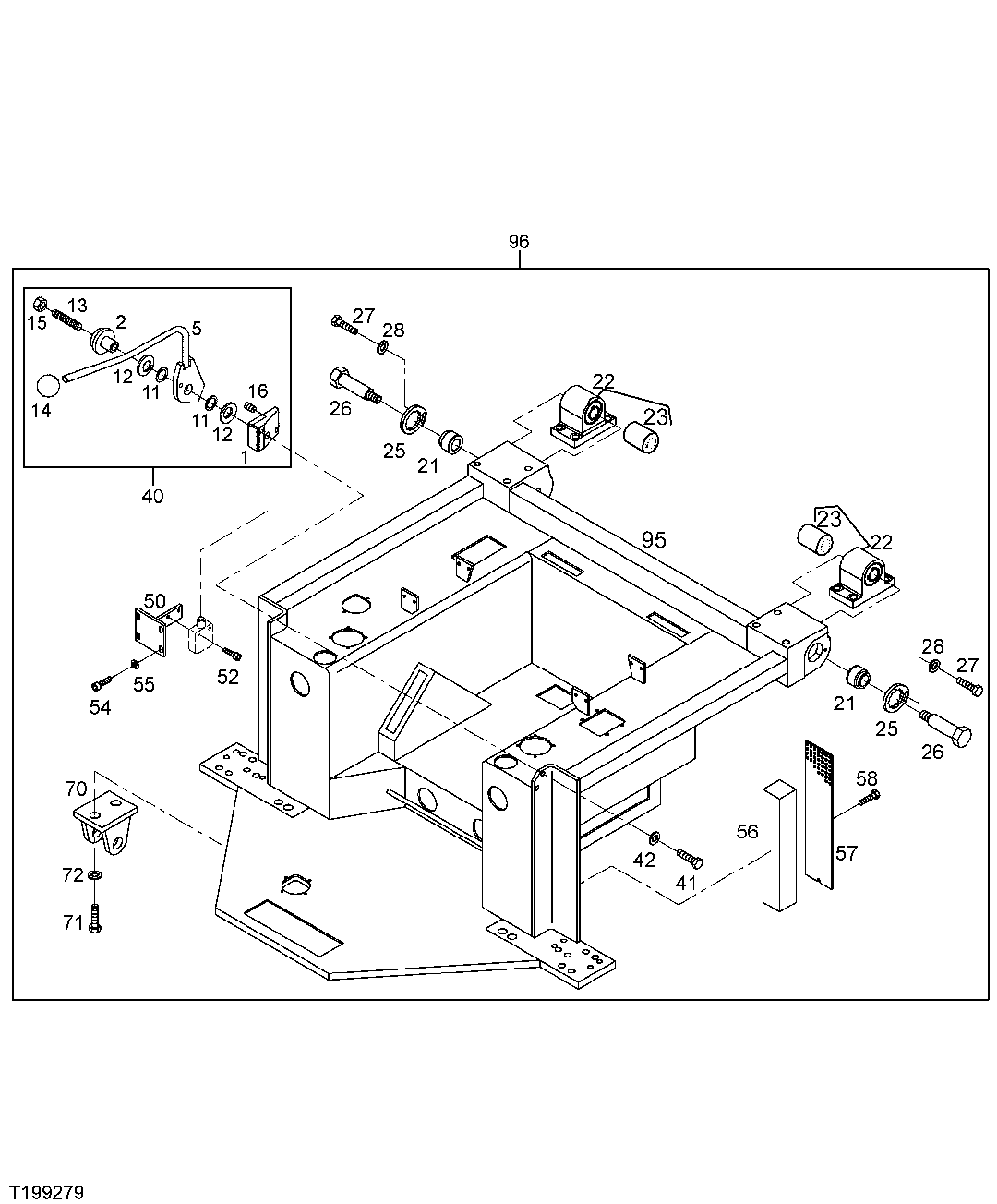

OPERATOR PLATFORM COMPONENT PARTS, PARK LOCK LEVER, CAB PIVOT AND BEARINGS
