INSTRUMENT PANEL,PANEL WIRE HARNESS AND TERMINAL CONNECTORS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT274389	2	Coupling	-
2	AT274215	2	Screw	M6 X 8
3	AT274985	2	Bracket	-
4	AT274430	5	Elec. Connector Terminal	Terminal Board
5	AT274865	2	Seal	-
6	21M7405	1	Screw	M6 X 40
7	AT275268	1	Plate	-
8	AT274529	4	Plug	-
9	21M7376	1	Screw	M6 X 50
10	AT275263	1	Seal	-
11	AT274874	1	Plug	-
12	AT274429	1	Gasket	-
13	AT274431	1	Electrical Connector Assy	Cabin Wiring Harness
14	21M7209	4	Screw	M4 X 10, SUB FOR AT274019
15	AT274428	1	Housing	-
16	AT274984	1	Electrical Connector Assy	Main Wiring Harness
17	AT274425	44	Elec. Connector Terminal	Pin Contact
17	AT274427	16	Elec. Connector Terminal	Pin Contact
17	AT274426	12	Elec. Connector Terminal	Pin Contact
18	21M7250	4	Screw	M4 X 12
19	AT275264	1	Seal	-
21	AT317622	1	Hinge	-
22	AT264681	1	Cover	Instrument Panel, ALSO ORDER T181067, ENGLISH OR T181284, SPANISH OR T181285, FRENCH AND T181327, ENGLISH OR T181337, SPANISH OR T181338, FRENCH
23	-	1	Part 24	Instrument Panel, AT264783 NLA, SUB AT319659
24	AT275723	2	Bolt	-
25	AT275722	1	Bracket	-
26	AT274060	2	Screw	-
27	14M7139	1	Nut	M4, M4
28	AT275721	1	Support	-
29	19M9738	4	Screw	M8 X 25, SUB FOR AT274141
30	AT265697	1	Wiring Harness	Vehicle Main Wiring Harness
31	AT265012	1	Wiring Harness	To Overhead Console
32	AT274424	1	Socket	-

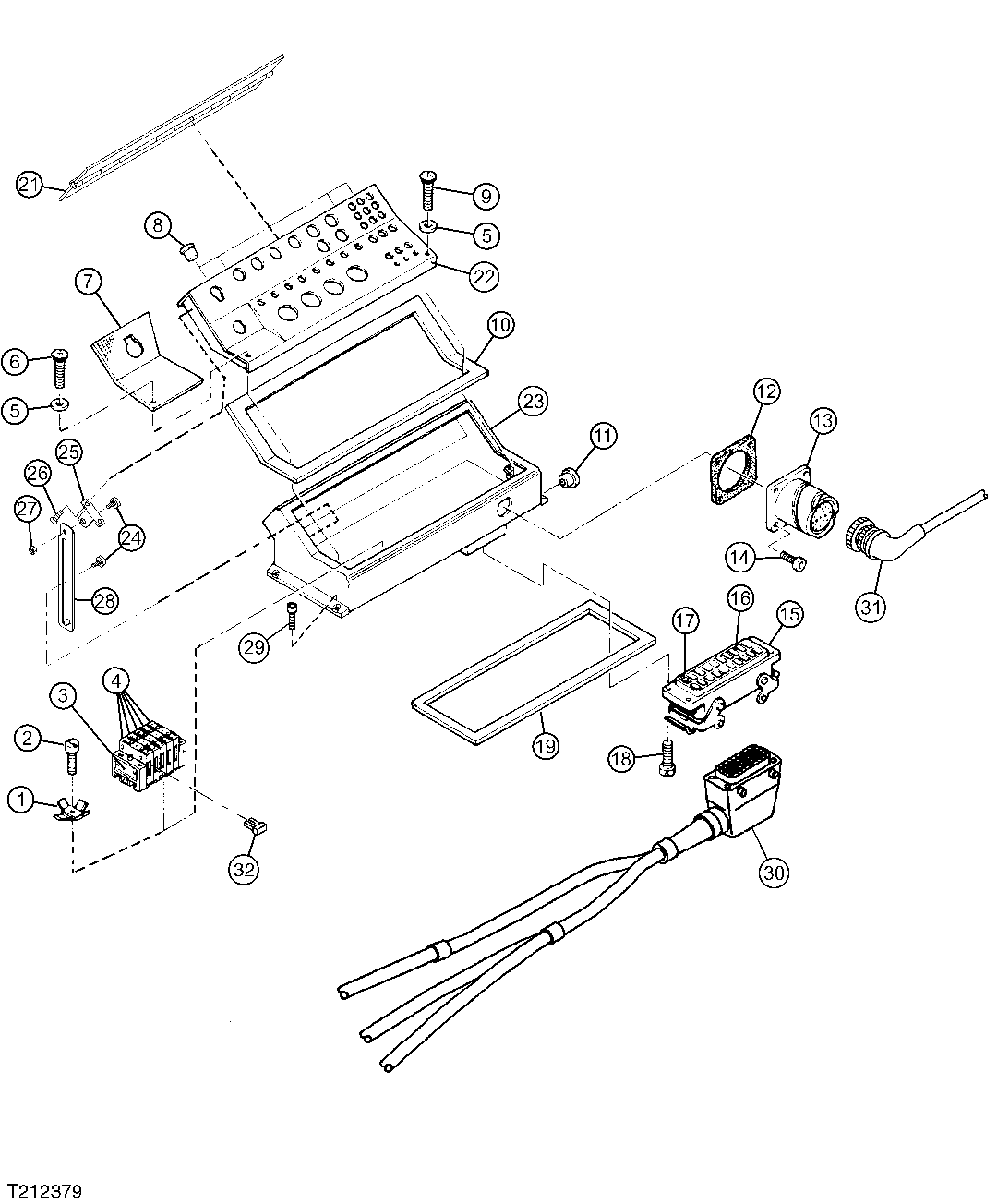

INSTRUMENT PANEL,PANEL WIRE HARNESS AND TERMINAL CONNECTORS
