HYDROSTATIC HOSES (PIVOT SHAFT TO HYDROSTATIC MOTOR)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW10472425	2	O-Ring	SUB FOR LW10290518 AND AT218852
2	AT326441	4	Flange	SUB FOR AT218518
3	AT276032	8	Socket Head Screw	-
4	AT265475	2	Hydraulic Hose	INCLUDES AT276295
4	AT276295	2	O-Ring	NOT ILLUSTRATED, ON MALE END OF HOSES AT276253
5	AT276033	2	Nut	-
6	AT265479	1	Hydraulic Hose	Fabricate, LH SIDE
6	AT265480	1	Hydraulic Hose	Fabricate, RH SIDE
7	AT276290	1	Hydraulic Hose	-
8	XGE10LMEDCF	1	Fitting	SUB FOR AT218623
8	PMH3827	1	Fitting	-
9	AT218921	1	Elbow Fitting	-
10	LW10472425	2	O-Ring	SUB FOR LW10290518 AND AT218852
11	AT274624	1	O-Ring	-
12	LW10490784	1	O-Ring	SUB FOR LW10290520 AND AT274678
13	AT276524	1	Manifold	INCLUDES (2) PMH3805
14	AT199124	1	Filter Element	INCLUDES AT274815 AND AT274649
15	LW4002918	4	Socket Head Screw	SUB FOR AT276050
16	AT274851	1	Union Fitting	NLA
17	AT274815	1	O-Ring	-
18	AT274649	1	O-Ring	-
19	PMH3805	2	Fitting	SUB FOR AT218846
19	PMH3827	1	Fitting	-
20	XGE22LMEDCF	1	Fitting	SUB FOR AT218841
20	PMH3831	1	Fitting	-
21	XEW22LCF	1	Fitting	SUB FOR AT218884 AND LW247126202
21	51M7102	1	O-Ring	20 X 2 mm

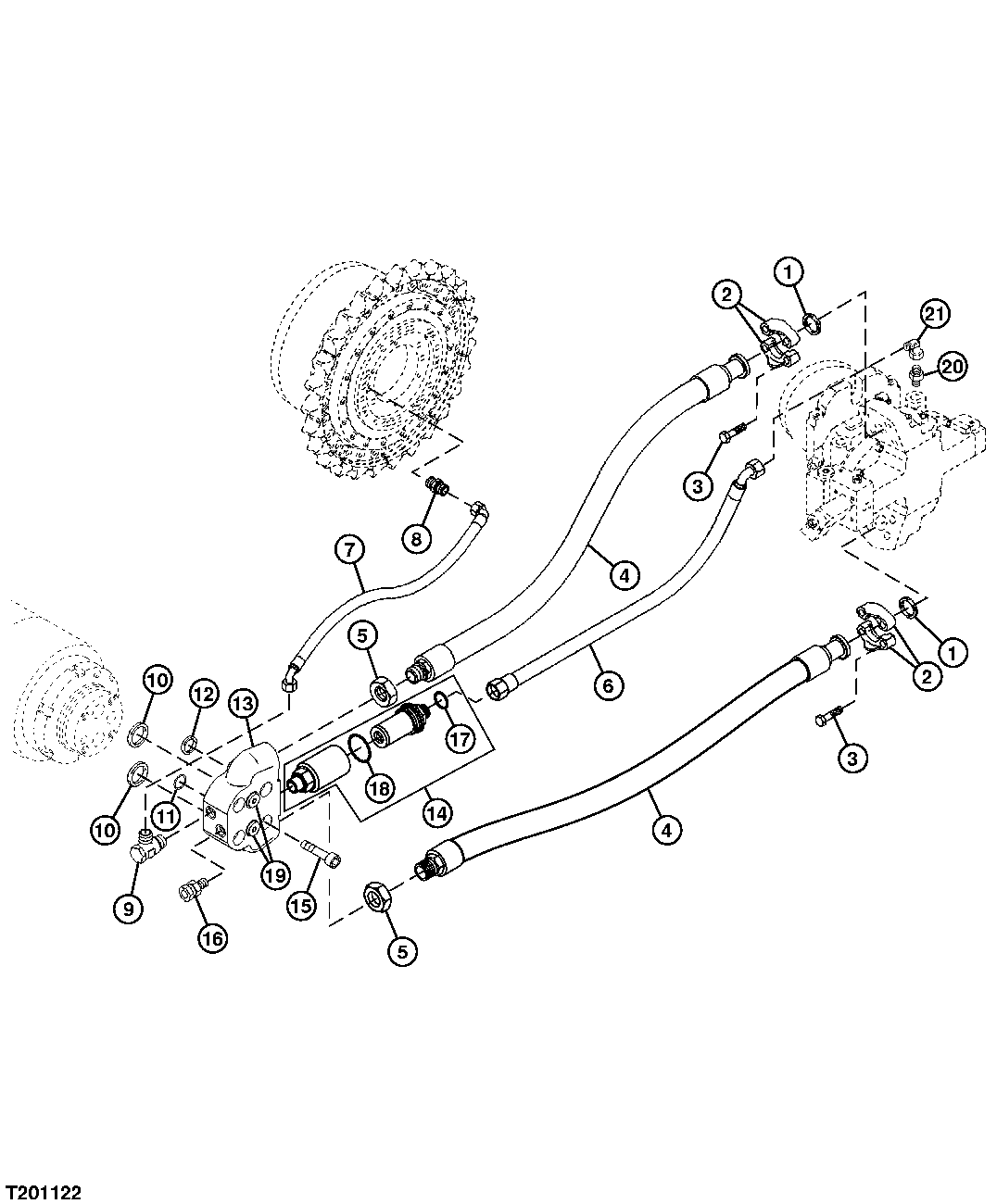

HYDROSTATIC HOSES (PIVOT SHAFT TO HYDROSTATIC MOTOR)
