HYDROSTATIC CHARGE AND FAN DRIVE PUMP COUPLER AND FITTINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
50	AT264727	1	Flange	-
51	AT265670	1	O-Ring	-
52	AT265343	1	Splined Coupling	-
53	AT264847	1	O-Ring	-
56	19M8348	2	Cap Screw	M12 X 65
57	AT275652	2	Link	-
60	LW7026656	1	Coupling	SUB FOR AT274772
61	51M7114	2	O-Ring	32 X 2.500 mm, SUB FOR AT320754 AND AT274538
62	LW10289803	8	Washer	SUB FOR 24M7055, THIS APPLICATION
63	19M8658	4	Screw	M8 X 60
64	PMH3850	1	Fitting	SUB FOR AT276187
64	51M7114	1	O-Ring	32 X 2.500 mm
65	19M9738	4	Screw	M8 X 25, SUB FOR AT274141
66	AT250338	1	O-Ring	-
67	LW10289802	4	Washer	SUB FOR 24M7088, THIS APPLICATION
69	PMH3838	1	Fitting	SUB FOR AT218902
69	51M7109	1	O-Ring	15 X 2 mm
70	AT265376	1	Fitting	-
71	AT266572	2	Cap Screw	-
72	AT274207	2	Socket Head Screw	-
73	AT250327	1	O-Ring	SUB FOR AT261788, THIS APPLICATION
74	LW10289802	4	Washer	SUB FOR 24M7088, THIS APPLICATION
75	AT274812	1	Fitting	-
76	19M7603	2	Screw	M6 X 20
77	19M8265	2	Screw	M6 X 50
80	LW7026656	1	Coupling	SUB FOR AT274772
84	XEW35LCF	1	Fitting	SUB FOR AT191811 AND LW482530914
68A	AT277199	1	Tee Fitting	-
68B	51M7109	1	O-Ring	15 X 2 mm
68B	XEW15LCF	1	Fitting	SUB FOR AT218893

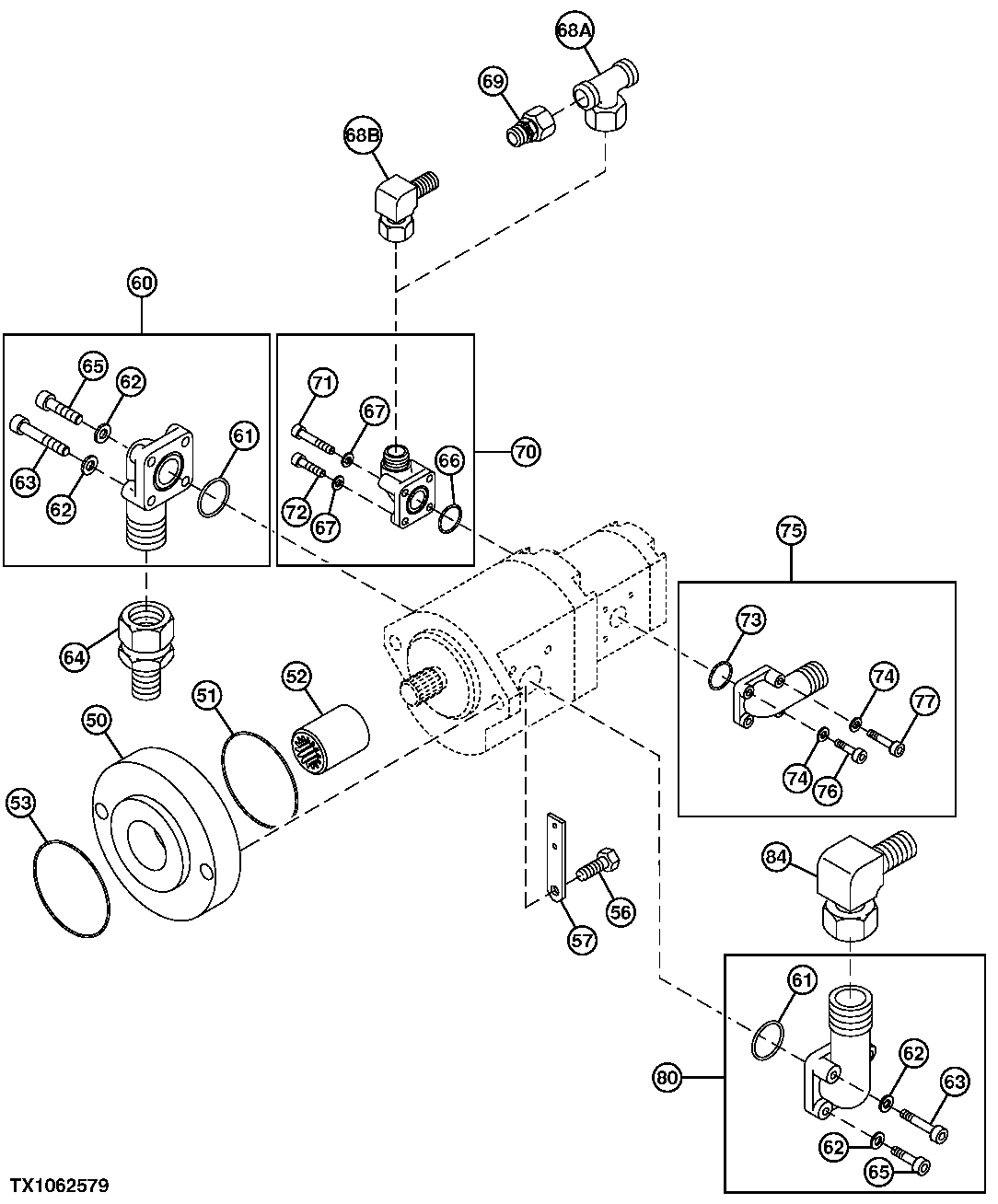

HYDROSTATIC CHARGE AND FAN DRIVE PUMP COUPLER AND FITTINGS

Нет текстового описания
