CAB HEADLINER,WEATHER STRIP AND STORAGE COMPARTMENT COVERS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
16	AT274438	2	Grommet	-
17	AT274438	2	Grommet	-
24	AT264768	1	Headliner	-
25	AT275181	10	Clip	-
27	-	1	Part 5	(MAKE FROM LW9812345 ) (SUB FOR LW226016702 AND AT264803 AND AT340132 )(CTL 4.4M)
66	AT264673	1	Cover	-
67	19M7938	3	Cap Screw	M10 X 20, (SUB FOR 19M7166)
68	24M7028	3	Washer	10.500 X 20 X 2 mm
69	-	1	Part 9	(MAKE FROM LW9812345 ) (SUB FOR LW226016702 AND AT264803 AND AT340132 )(CTL 0.16M)
70	-	1	Part 10	(MAKE FROM LW9812345 ) (SUB FOR LW226016702 AND AT264803 AND AT340132 )(CTL 0.15M)
76	AT264885	1	Plate	-
77	AT264769	1	Hinge	-
78	-	1	Part 13	(MAKE FROM LW9812345 ) (SUB FOR LW226016702 AND AT264803 AND AT340132 )(CTL 2.4M)
79	LW9799946	1	Cover	(SUB FOR AT264691)
80	19M7932	7	Cap Screw	M8 X 16, (SUB FOR 19M7162)
81	24H1621	9	Washer	11/32" X 1" X 0.220"
82	19M7881	2	Screw	M8 X 20
83	-	1	Part 18	(RUBBER)
84	AT277294	2	Stop	-
85	14M7272	2	Nut	M6
86	AT274944	1	Latch	-
87	-	1	Part 22	(MAKE FROM LW9812370 ) (SUB FOR AT300693)(CTL 1.52M)
88	AT274209	6	Screw	-
89	-	1	Part 24	(MAKE FROM LW9812357 ) (SUB FOR AT300512)(CTL 0.2M)
90	-	1	Part 25	(MAKE FROM LW9812357 ) (SUB FOR AT300512)(CTL 1.1M)
95	AT264886	1	Plate	-

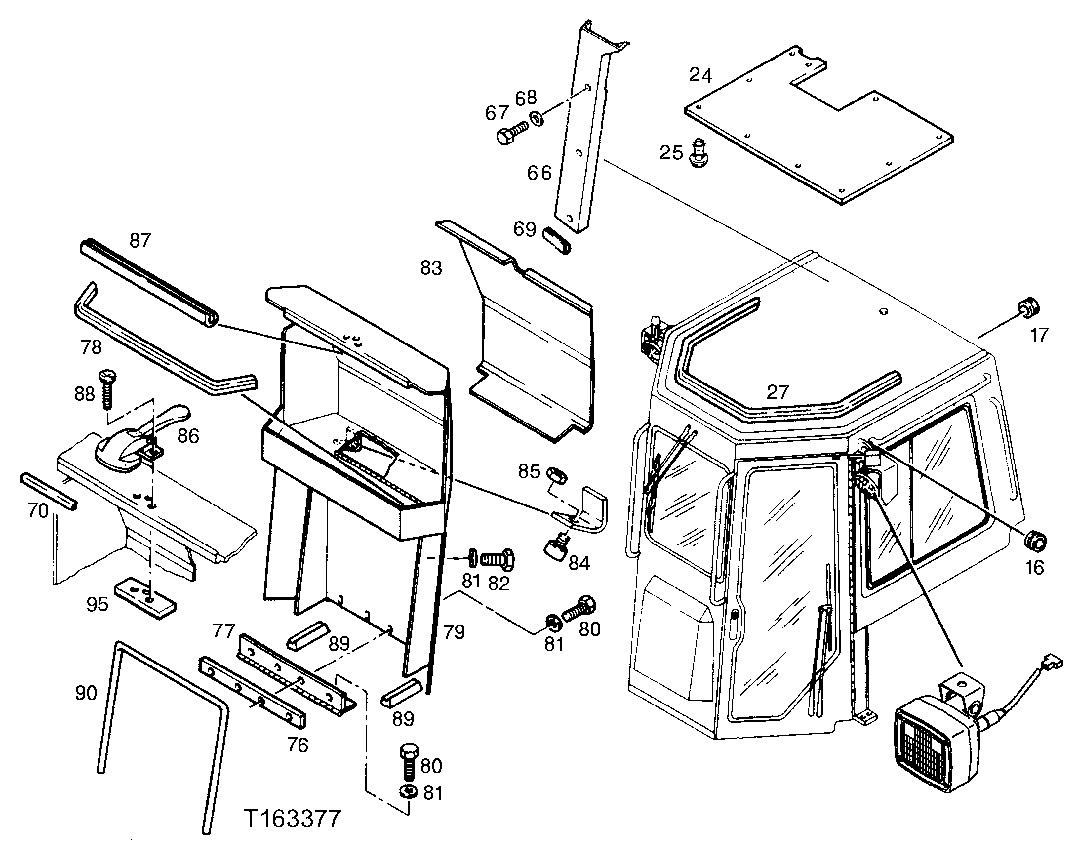

CAB HEADLINER,WEATHER STRIP AND STORAGE COMPARTMENT COVERS

Нет текстового описания
