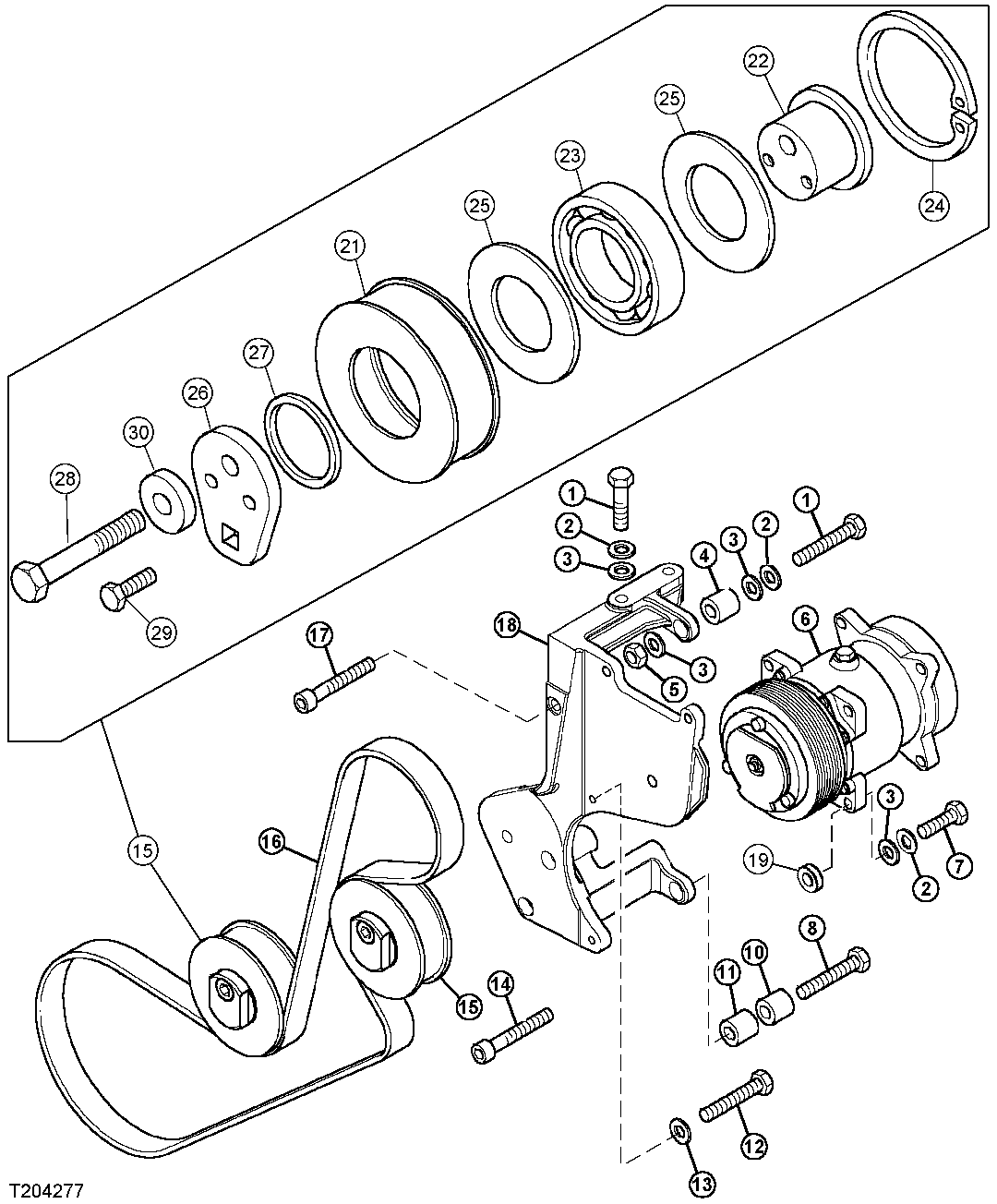

AIR CONDITIONING COMPRESSOR, COMPRESSOR BRACKET, DRIVE BELT AND BELT TENSIONER (ESN -2003011387)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7170	3	Cap Screw	M10 X 50, AT274009 NLA
2	12M1645	5	Washer	10.500 X 21 X 1 mm
3	24M7028	6	Washer	10.500 X 20 X 2 mm
4	AT275449	1	Bushing	-
5	14M7274	1	Nut	M10
6	SE502287	1	Compressor	REMAN FOR LW10116767
6	LW10040064	1	Cover	Not Illustrated Includes Hardware, ESN 2002011730-
6	LW10115770	1	Coupling	Not Illustrated, SUB FOR AT265359, ESN 2002011730-
6	LW10116767	1	Compressor	-
6	-	1	Part 10	SUB LW10116767, AT266646 NLA, ESN 2002011730-
6	LW10040064	1	Cover	Not Illustrated Includes Hardware, ESN -2002011729
6	AT318382	1	Coupling	Not Illustrated, ESN -2002011729
6	SE502287	1	Compressor	-
6	-	1	Part 6	SUB LW10116767, AT196780 AND AT274343 NLA, ESN -2002011729
7	19M7662	2	Cap Screw	M10 X 30
8	19M8262	1	Cap Screw	M8 X 130
10	AT275301	1	Bushing	-
11	AT275445	1	Spacer	-
12	19M7663	1	Cap Screw	M8 X 70
13	24M7055	1	Washer	8.400 X 16 X 1.600 mm
14	19M8412	2	Screw	M10 X 55
15	-	2	Part 22	SUB FOR AT317620, SUB AT279816, ESN -99012920
15	-	2	Part 23	SUB FOR AT317621, SUB AT279816, ESN 99012921 - 2000010069
15	AT279816	2	Belt Tensioner	SUB FOR AT275951, ESN 2000010070-
16	T178537	1	V-Belt	SUB FOR AT274296
17	19M8881	1	Screw	M10 X 30, SUB FOR AT274252
18	AT275938	1	Bracket	-
19	AT275297	1	Washer	-
21	AT275947	1	Pulley	-
22	AT275948	1	Hub	-
23	AT274297	1	Ball Bearing	-
24	40M1873	1	Snap Ring	SUB FOR AT218453
25	AT274747	2	Ring	-
26	AT275949	1	Spacer	-
27	AT275950	1	Ring	-
28	19M7364	1	Cap Screw	M12 X 80
29	19M7407	2	Cap Screw	M8 X 25, SUB FOR 19M7163
30	AT275394	1	Washer	-

AIR CONDITIONING COMPRESSOR, COMPRESSOR BRACKET, DRIVE BELT AND BELT TENSIONER (ESN -2003011387)
