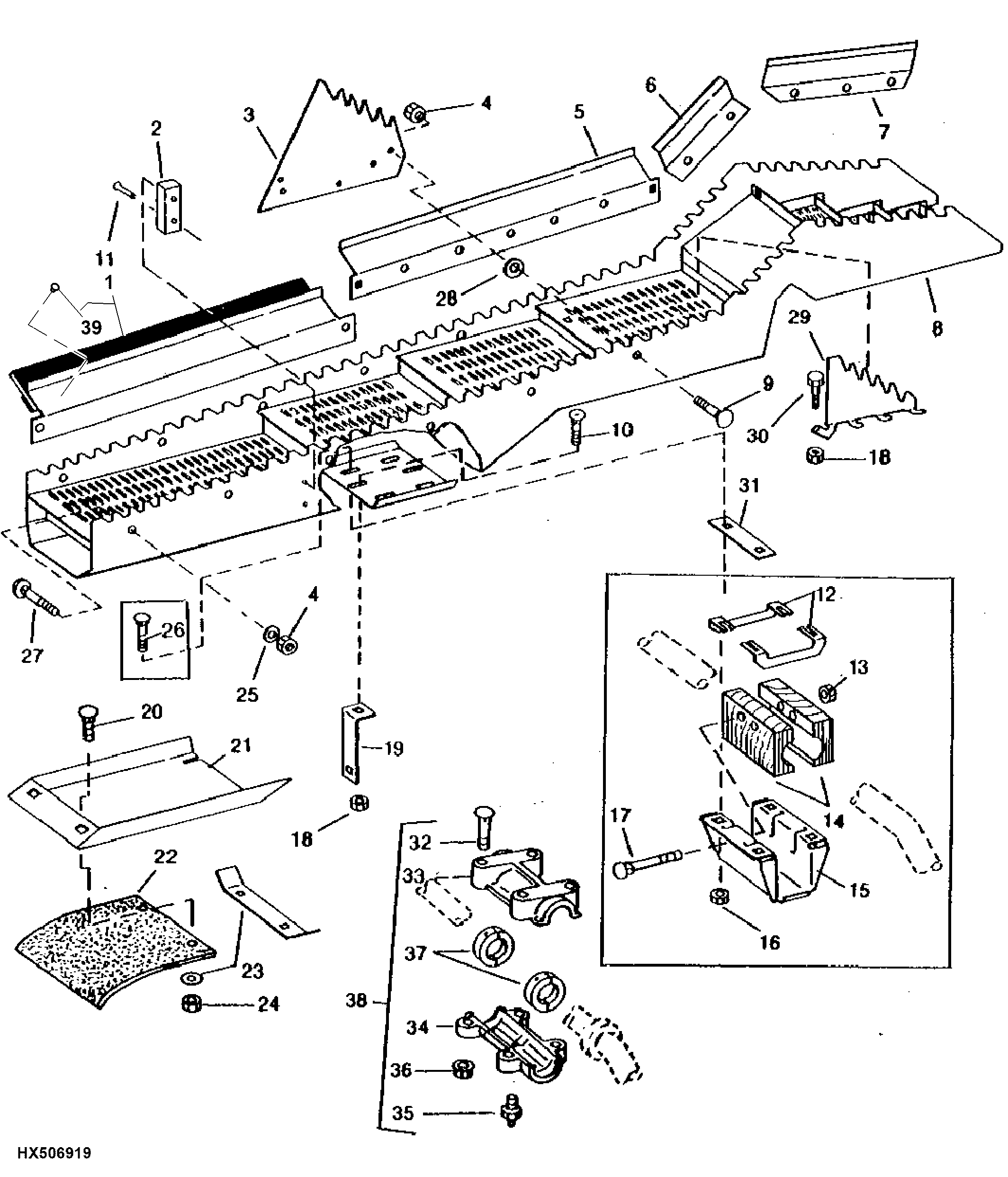

Straw Walkers (With Bearing Conversion)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH162251	2	Seal	(SUB FOR AH128735)
2	H135923	1	Strip	(SUB FOR H135225)
3	H131516	1	Riser	ONE PER WALKER EXCEPT RIGHT HAND OUTSIDE WALKER (GRAIN)
4	14M7303	3	Flange Nut	M6
5	H131604	2	Seal	-
6	H131608	2	Seal	-
7	H131607	2	Seal	-
8	AH209840	4	Strawwalker	(SUB FOR AH135380)
9	03M7251	3	Bolt	M6 X 12
10	03M7184	1	Bolt	M8 X 20
11	H85233	2	Rivet	-
12	H141314	2	Retainer	-
13	14M7396	2	Lock Nut	M8
14	H140677	2	Bearing	-
15	H141313	1	Cover	-
16	14M7400	8	Lock Nut	M10
17	03M7267	2	Bolt	M8 X 80
18	14M7298	2	Flange Nut	M8
19	H87268	2	Bracket	LOSS MONITOR BRACKET
20	03M7184	2	Bolt	M8 X 20
21	H131661	1	Pan	(THIS APPLICATION ONLY)
22	H140218	1	Flap	SUNFLOWER FLAP
23	H143615	2	Reinforcement	-
23	H128082	2	Washer	-
24	14M7396	2	Lock Nut	M8
24	M84309	2	Nut	RETAINS M8 BOLTS BEFORE EXTENSION PAN, (SUB FOR H131531)
25	24M7055	1	Washer	8.400 X 16 X 1.600 mm
26	03M7192	8	Bolt	M10 X 30
27	03M7221	1	Bolt	M6 X 16
28	24H1292	3	Washer	11/32" X 3/4" X 0.120"
29	H141883	1	Riser	CENTER
30	19M7865	1	Screw	M8 X 16
31	H139667	2	Strap	-
32	03M7359	4	Bolt	M10 X 85, (FOR FRONT AND REAR BEARINGS)
33	H147747	1	Bearing	UPPER; (FOR FRONT AND REAR BEARINGS)
34	H147748	1	Bearing	LOWER; (FOR FRONT AND REAR BEARINGS)
35	JD7759	1	Lubrication Fitting	(REAR BEARING ONLY)
36	14M7465	4	Lock Nut	M10, (FOR FRONT AND REAR BEARINGS)
37	AH141393	2	Locking Collar	(FOR FRONT AND REAR BEARINGS) 8 PER CRANK
38	AH141819	1	Bearing	REAR; (USE ON COMBINES WITH OLD CRANKSHAFT PRIOR TO 1993)
39	DQ34558	14	Rivet	-
..	BH79481	1	Complete Goods/Ship. Bundle	CENTER RISERS
..	BH78364	1	Complete Goods/Ship. Bundle	STRAW WALKER FLAPS

Straw Walkers (With Bearing Conversion)

Нет текстового описания
