STRAW WALKER CRANKS, STRAW SPREADER DRIVE AND SHIELD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH133191	3	Eccentric Locking Collar	LH ON FRONT CRANK AND BOTH ON REAR CRANK
2	-	3	Part 2	-
3	03M7191	12	Bolt	M10 X 25
4	H103265	8	Pressed Flanged Housing	-
5	AZ19427	1	Ball Bearing	FRONT LH ONLY.
6	14M7296	6	Flange Nut	M10
8	49M4118	1	Shaft Key	10 X 8 X 28 mm
9	H135519	1	Washer	FRONT RH ONLY
10	AH132823	1	Ball Bearing	FRONT RH ONLY
10	JD39104	2	Ball Bearing	REAR CRANK ONLY
11	03M7190	1	Bolt	M10 X 20
12	H138435	2	Set Screw	-
13	14M7274	2	Nut	M10
14	AH114359	1	Pulley	STRAW SPREADER DRIVE (LH REAR) (I D 1.370)
15	H128234	1	V-Belt	STRAW SPREADER DRIVE
16	H140020	1	Guide	-
7A	AH131350	1	Shaft	(SUB AH139918), (ALSO REQUIRES (4) (4) AH141819 OR (4) H147747, (4) H147748, (4) JD7759, (16) 03M7218 AND (16) 14M7400) REAR CRANK ONLY
7A	AH131348	1	Shaft	(SUB AH139916), (ALSO REQUIRES (4) H147747, (4) H147748, (4) AH145263 OR (4) AH145262, (16) 03M7218 AND (16) 14M7400) FRONT CRANK ONLY
7B	AH145604	1	Shaft	-
7B	AH139918	1	Shaft	(SUB AH145604), (REQUIRES (4) AH141819 OR (4) H147747, (4) H147748, (4) JD7759, (16) 03M7218 AND (16) 14M7400) REAR CRANK ONLY
7B	AH145603	1	Shaft	-
7B	AH139916	1	Shaft	(SUB AH145603), (REQUIRES (4) AH145263 OR (4) AH145262 OR (4) H147747, (4) H147748, (16) 03M7218 AND (16) 14M7400) FRONT CRANK ONLY

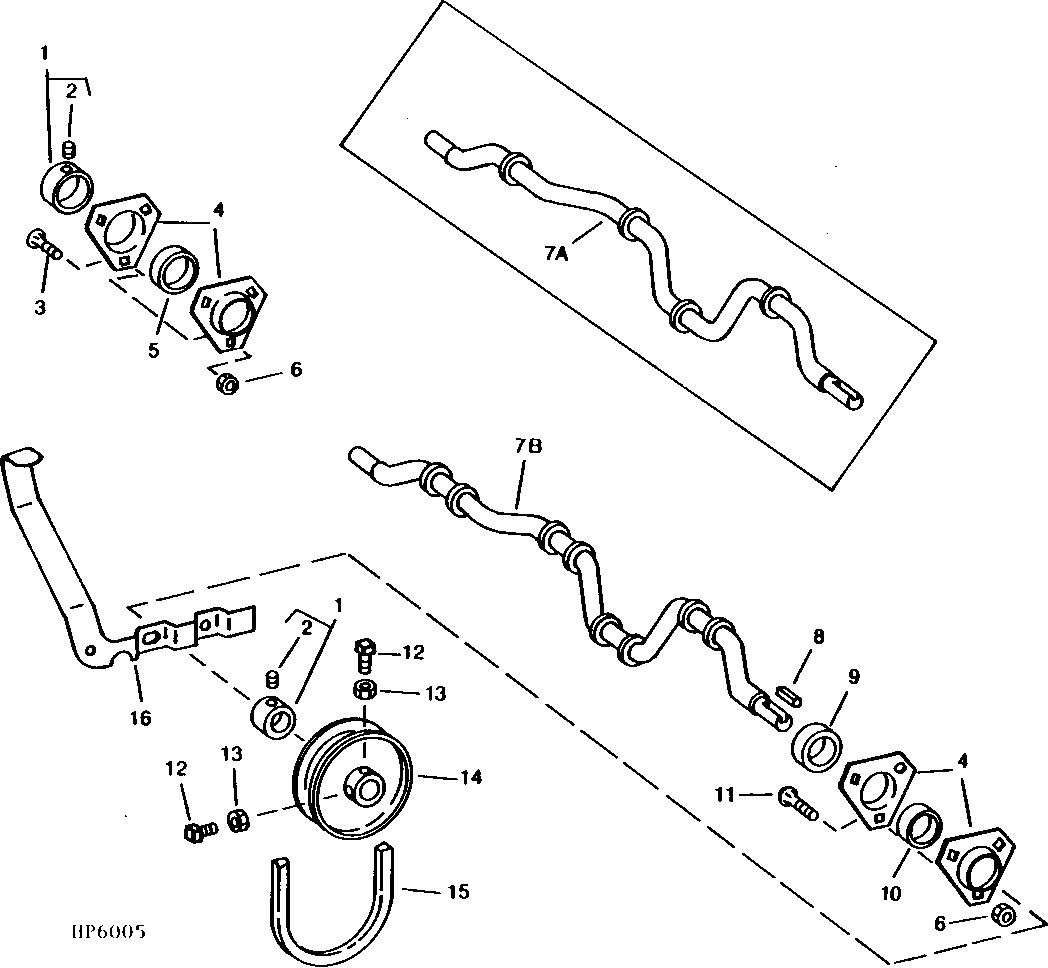

STRAW WALKER CRANKS, STRAW SPREADER DRIVE AND SHIELD
