Открытый узел

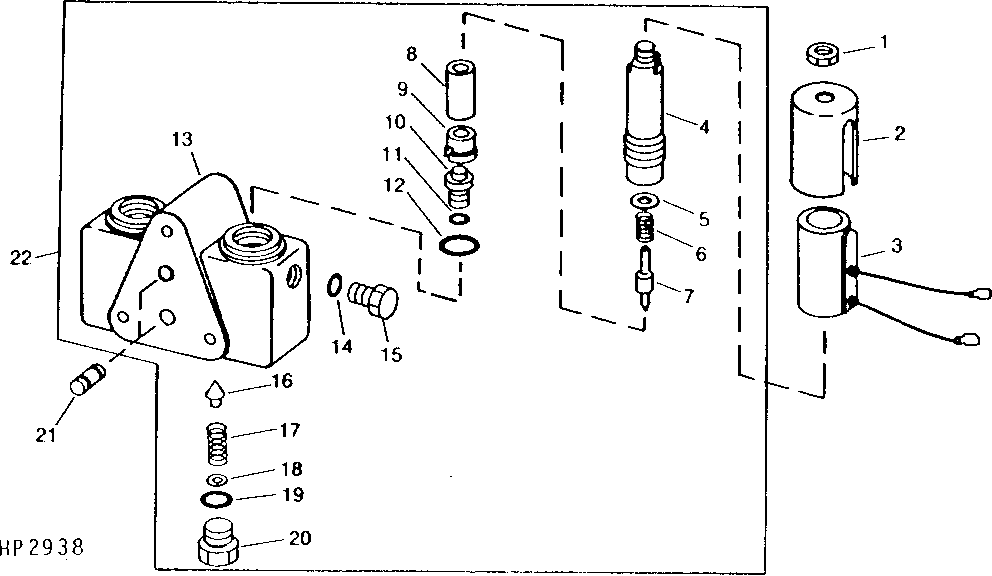

SOLENOID CONTROL VALVE FOR CYLINDER SPEED

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A4655R	2	Nut	12.700 mm (1/2")
2	E62942	2	Cover	-
3	AH124731	2	Electrical Coil	-
4	-	2	Part 4	(A)
5	-	2	Part 5	(B)
6	E62089	2	Spring	(B)
7	-	2	Part 7	(B)
8	-	2	Part 8	(A)
9	-	2	Part 9	(A)
10	-	2	Part 10	(B)
11	U40962	2	O-Ring	(B)
12	U15980	2	O-Ring	-
13	-	2	Part 13	(NOT SERVICED), (SUB AH137199)
14	R30903	1	O-Ring	-
15	K40994	1	Fitting	-
16	-	1	Part 16	(C)
17	-	1	Part 17	(C)
18	-	1	Part 18	(C)
19	R28782	1	O-Ring	(C)
20	-	1	Part 20	(C)
21	AH131326	2	Seal	(WITH O-RING AND BACKUP RING)
22	AH137199	1	Valve	(LESS COILS AND CONNECTING TUBES), (SUB AH139062, E62917, H145052 AND 38H1160)
..	AH96359	2	Kit	ARMATURE (INCLUDES PARTS MARKED (A)), (SUB AH139240)
..	AH139240	2	Kit	ARMATURE INCLUDES PARTS MARKED (A)
..	AH131420	2	Seat Kit	POPPET INCLUDES PARTS MARKED (B)
..	AH131421	1	Seat Kit	RELEIF INCS PARTS MARKED (C)

SOLENOID CONTROL VALVE FOR CYLINDER SPEED

Нет текстового описания
