Rasp Bar Threshing Cylinder

Нет текстового описания

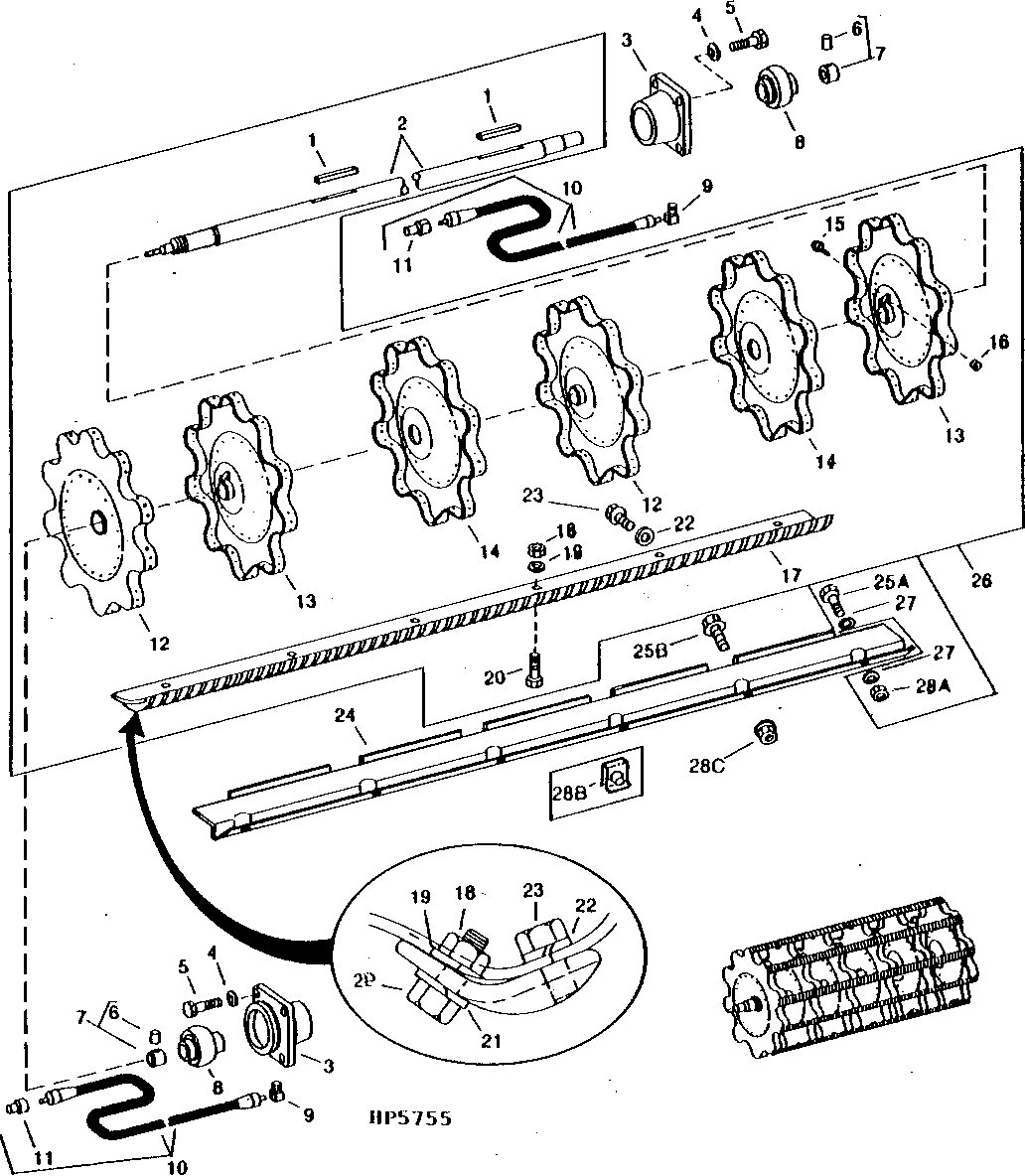

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(CUT FROM H64376) IN AH64587 KEY STOCK KIT
2	H140043	1	Shaft	DUAL RANGE
2	H145970	1	Shaft	SINGLE RANGE
2	H127972	1	Shaft	(SUB H145970) SINGLE RANGE
3	H99149	2	Housing	(SUB H203950)
3	H203950	2	Housing	-
4	12H304	8	Lock Washer	3/8"
5	19H1732	8	Cap Screw	3/8" X 1-1/4"
5	19M7785	8	Screw	M10 X 25
6	-	2	Part 10	-
7	JD10342	2	Eccentric Locking Collar	-
8	JD10343	2	Ball Bearing	-
9	JD7845	2	Elbow Fitting	-
10	AH121009	2	Hose	1/8" X 910 mm (35-3/4") X 1/8"
11	JD7759	2	Lubrication Fitting	-
12	AH126720	2	Threshing Cylinder Head	WITH PILOT HUB
13	AH126719	2	Threshing Cylinder Head	WITH KEYED HUB
14	H131878	2	Threshing Cylinder Head	WITH NO HUB
15	19H1820	2	Cap Screw	1/2" X 3"
15	12H301	2	Lock Washer	1/2"
16	14H809	2	Nut	1/2", (SUB 14H1040)
16	14H1040	2	Nut	1/2"
17	AH139768	1	Rasp Bar	SMOOTH RASP BAR (PACKAGE OF TWO)
17	AH221674	1	Rasp Bar	RIGHT-HAND (PACKAGE OF FOUR) (BLACK)
17	AH205120	1	Rasp Bar	RIGHT-HAND (PACKAGE OF FIVE) (CHROMED)
17	AH205119	1	Rasp Bar	LEFT-HAND (PACKAGE OF FIVE) (CHROMED)
17	AH205117	1	Rasp Bar	LEFT-HAND (PACKAGE OF FIVE) (BLACK)
18	H99923	60	Lock Nut	9.525 mm (3/8"), WITH RASP BAR
19	24H1308	60	Washer	13/32" X 1" X 0.134", WITH RASP BAR
20	19H3239	60	Cap Screw	3/8" X 1-1/4"
21	24H1303	2	WASHER	13/32" X 11/16" X 0.065"
22	12H304	60	Lock Washer	3/8"
23	19H2554	60	Cap Screw	3/8" X 5/8"
23	H89853	60	Cap Screw	9.525 X 15.875 mm (3/8" X 5/8"), (SUB 19H2554)
23	19H2554	60	Cap Screw	3/8" X 5/8", (SUB H89853)
24	H135988	10	Deflector	SUB H144037
24	H144037	10	Deflector	-
26	AH134658	1	Rasp-Bar Cylinder	DUAL RANGE WITH CHROMED BARS
26	AH144544	1	Rasp-Bar Cylinder	DUAL RANGE WITH BLACK BARS
26	AH127611	1	Rasp-Bar Cylinder	(SUB AH140131) SINGLE RANGE WITH CHROMED BARS AND FILLER PLATES
26	AH140131	1	Rasp-Bar Cylinder	SINGLE RANGE WITH CHROMED BARS
26	AH144545	1	Rasp-Bar Cylinder	SINGLE RANGE WITH BLACK BARS
27	24H1308	120	Washer	13/32" X 1" X 0.134", WITH DEFLECTOR
..	AH146116	1	Kit	(INCLUDES (70) H89853, (70) H99923, (70) 12H304, (70) 19H3239 AND (70) 24H1308)
..	AH140417	1	Package Of Parts	INCLUDES (60) H145773 CAP SCREWS, (60) H146457 CLIP NUTS AND (60) 24H1308 WASHERS
25A	19M7785	60	Screw	M10 X 25
25B	H145773	60	Self-Locking Screw	M10 X 35
28A	H99923	120	Lock Nut	9.525 mm (3/8"), WITH DEFLECTOR
28B	H143834	120	Nut	WITH DEFLECTOR
28B	H146457	120	Nut	-
28C	14M7400	120	Lock Nut	M10
