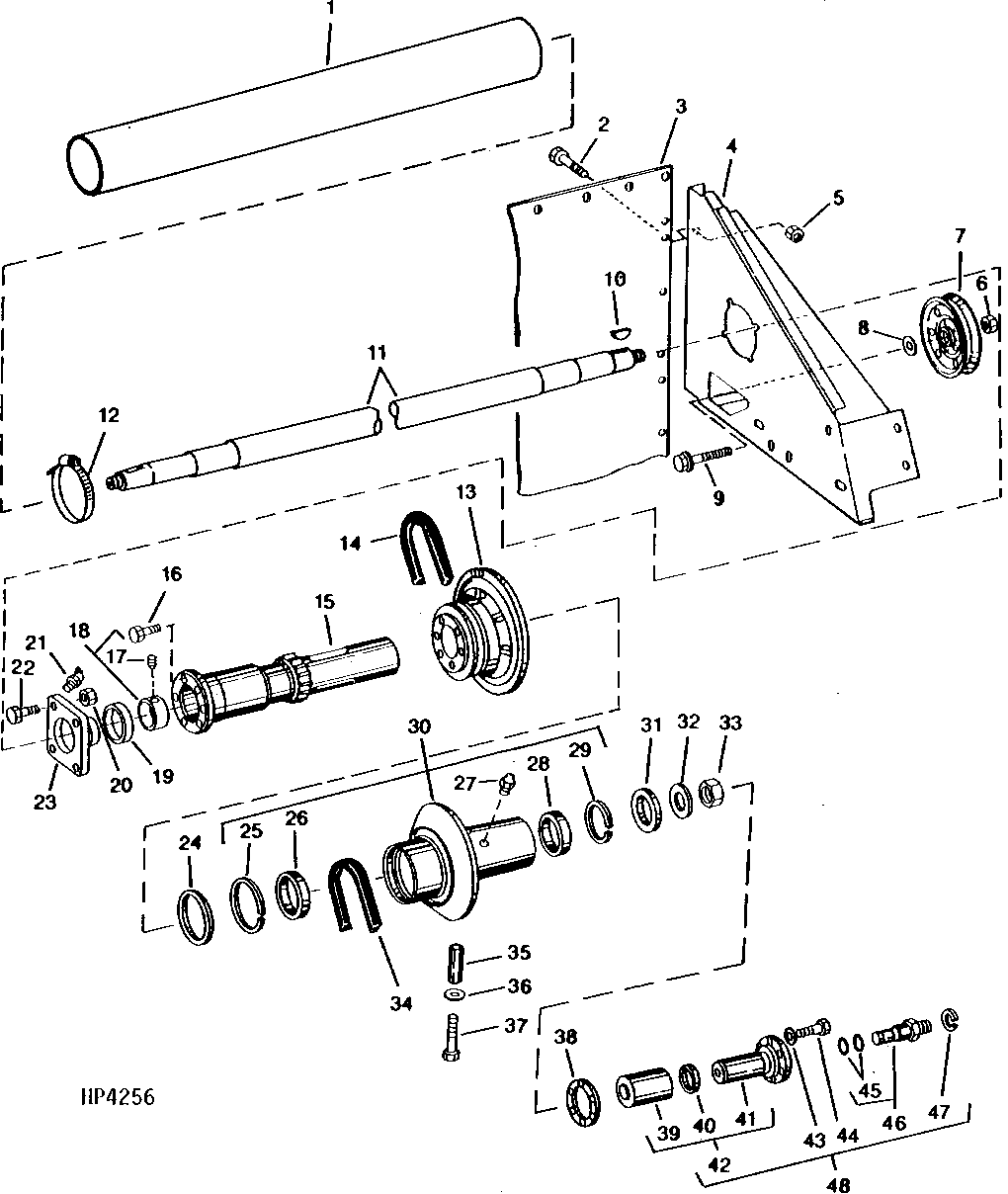

PRIMARY COUNTERSHAFT, SUPPORTS AND VARIABLE SHEAVE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AH141389)
2	19M7866	1	Screw	M8 X 20
3	H143385	1	Sheet	(SUB H145530)
3	H130903	1	Sheet	-
4	AH135295	1	Sheet	(SUB AH135077)
5	14M7298	1	Flange Nut	M8
6	14M7291	1	Flange Nut	M16
7	AH97031	1	Idler	-
8	24M7053	1	Washer	17 X 30 X 3 mm
9	19M7794	1	Screw	M16 X 50
10	26H114	1	Shaft Key	1/2" X 2-3/4"
11	H200117	1	Drive Shaft	-
12	AR60499	1	Clamp	-
13	H115755	1	Half Sheave	-
14	H128010	1	V-Belt	-
15	H127196	1	Housing	-
16	19M7835	6	Screw	M10 X 35
16	19M7786	6	Screw	M10 X 30
17	22H821	1	SET SCREW	1/2" X 1/2"
18	JD8668	1	Eccentric Locking Collar	-
19	JD8669	1	Ball Bearing	-
19	JD10017	1	Ball Bearing	-
20	14M7296	4	Flange Nut	M10, PRIMARY TO SECONDARY COUNTERSHAFT DRIVE
21	JD7788	1	Lubrication Fitting	-
22	19M7786	4	Screw	M10 X 30
23	H115930	1	Bearing Housing W/O Bearing	-
23	H133618	1	Bearing Housing W/O Bearing	-
24	AH94853	1	Seal	-
25	H93631	1	Snap Ring	-
26	H93630	1	Bushing	-
27	JD7798	1	Lubrication Fitting	-
28	H123557	1	Spacer	(SUB H148131)
29	P48691	1	Snap Ring	-
30	AH122685	1	Pulley	(SUB AH141820)
31	AH87141	1	Seal	-
32	24H1668	1	Washer	1-17/64" X 2-1/4" X 0.134"
33	H82620	1	Lock Nut	31.750 mm (1-1/4")
34	H115759	1	V-Belt	PRIMARY TO INTERMEDIATE CYLINDER DRIVE
35	H110237	1	Pin Fastener	-
36	24M7178	2	Washer	10.500 X 30 X 2.500 mm
37	19M7784	2	Screw	M10 X 20
38	H102533	1	Shim	-
39	-	1	Part 43	(SUB AH125193)
40	H97306	1	Seal	-
41	-	1	Part 45	(SUB AH125193)
42	AH125193	1	Cylinder	-
42	AH133974	1	Cylinder	-
43	12H304	6	Lock Washer	3/8"
44	19H1732	6	Cap Screw	3/8" X 1-1/4"
45	R27564	2	O-Ring	-
46	AH124376	1	Union Fitting	(SUB AH139238)
47	H135292	1	Snap Ring	-
48	AH128284	1	Cylinder	(SUB AH124376, AH125193, AH139238 AND H135292) (KIT)
..	AH141389	1	Kit	POWERSHAFT KIT
