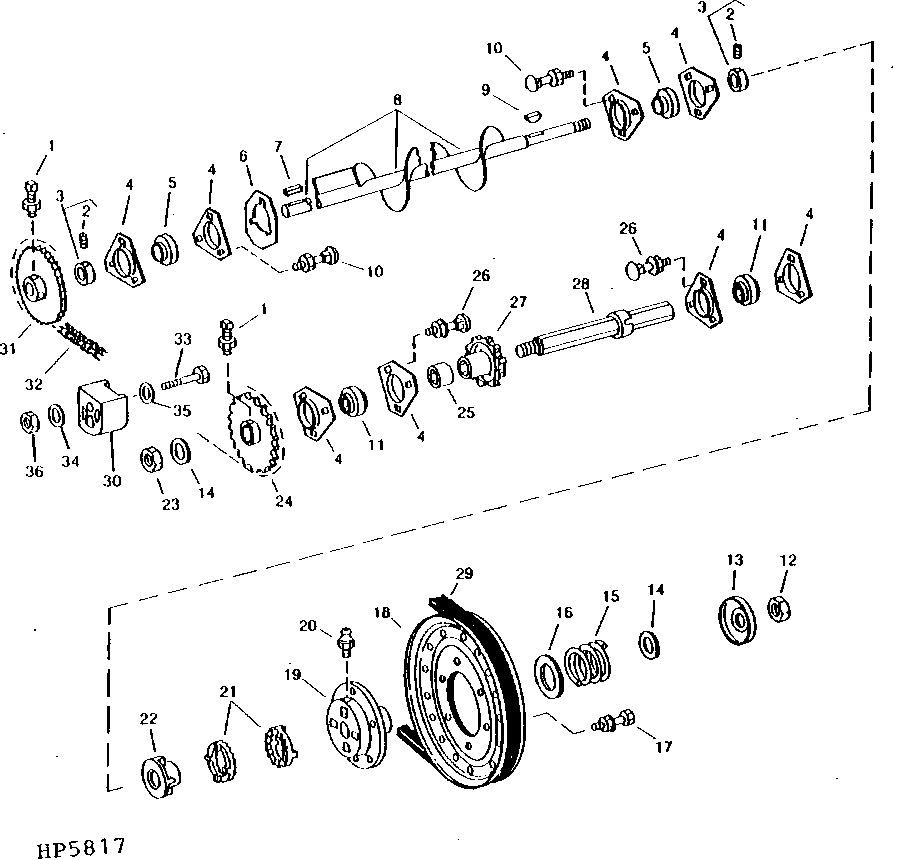

LOWER TAILINGS AUGER, SHAFT AND TIGHTENER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	1	Nut	M10
1	H138435	1	Set Screw	-
2	22M7080	2	Set Screw	M8 X 8
3	AZ10045	2	Eccentric Locking Collar	-
4	E10018	1	Pressed Flanged Housing	-
5	JD39103	2	BALL BEARING	-
6	H132906	1	Plate	-
7	-	1	Part 8	8 X 7 X 40 MM, (IN AH141142 KEY STOCK KIT) (CUT FROM H150269)
8	AH126206	1	Auger	(SUB AH140213) LOWER
8	AH140213	1	Auger	(SUB AH146322)
8	AH146322	1	Auger	-
9	26H82	1	Shaft Key	1/4" X 7/8"
9	26H19	1	Shaft Key	1/4" X 7/8", (SUB 26H82)
10	03M7191	1	Bolt	M10 X 25
10	14M7296	1	Flange Nut	M10
11	JD9313	2	Ball Bearing	-
12	14M7300	1	Flange Nut	M20
13	AH126677	1	Round Retainer	-
14	24M7051	2	Washer	21 X 37 X 3 mm
15	J21022	1	Spring	-
16	24M7176	1	Washer	56 X 72 X 3 mm
17	14M7298	1	Flange Nut	M8
17	19M7867	1	Screw	M8 X 25
18	AH126388	1	Pulley	270 MM (10-1/2") DIA.
19	H97574	1	Hub	-
20	JD7797	1	Lubrication Fitting	1/4" STRAIGHT
21	H128265	2	Slip Clutch	-
22	H85015	1	Hub	-
23	14M7428	1	Lock Nut	M20, (SUB A31870)
23	A31870	1	Lock Nut	-
24	AH130572	1	Chain Sprocket	Z=18
25	H134605	1	Spacer	(SUB H205123)
25	H205123	1	Spacer	-
26	03M7190	1	Bolt	M10 X 20
26	14M7296	1	Flange Nut	M10
27	H134603	1	Chain Sprocket	Z=8
28	AH130570	1	Shaft	LOWER CONVEYOR
29	N110085	1	V-Belt	-
30	H136582	1	Tightener	-
31	AH121047	1	Chain Sprocket	Z=18
32	-	1	Part 41	16 MM (5/8") PITCH, ROLLER, TYPE 50, 43 LINKS , (ASSEMBLE FROM AH18482 OR AP22459, P20351 AND P20352)
33	03M7245	1	Bolt	M8 X 55
34	24M7207	1	Washer	8.400 X 24 X 2 mm
35	12H292	1	Lock Washer	1/2", (SUB FOR H75716)
36	14M7298	1	Flange Nut	M8

LOWER TAILINGS AUGER, SHAFT AND TIGHTENER
