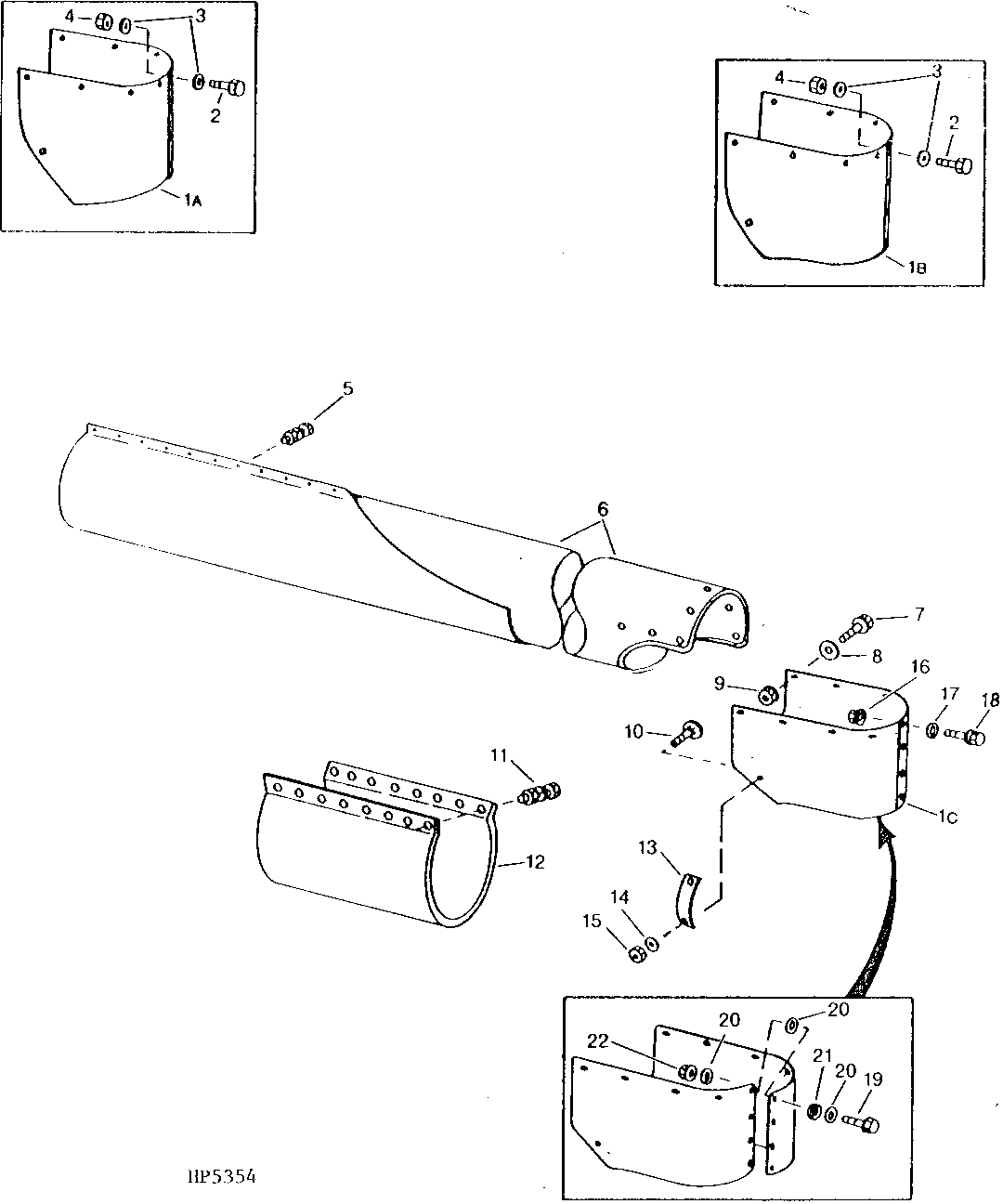

Horizontal Unloading Auger Housing (14 ft And 17 ft)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	19M7867	4	Screw	M8 X 25
3	24H1291	8	Washer	21/64" X 1-15/32" X 7/64"
4	14M7298	4	Flange Nut	M8
5	19M7868	7	Screw	M8 X 30
5	14M7298	7	Flange Nut	M8
6	AH145047	1	Housing	(SUB FOR AH122874)SOLID (14')
6	AH145049	1	Housing	(17'), (SUB FOR AH129066 AND AH140334) SOLID
6	AH145048	1	Housing	(14'), (SUB FOR AH122875) PERFORATED
6	AH140335	1	Housing	(17'), (SUB FOR AH128682) PERFORATED
7	19M7867	8	Screw	M8 X 25
8	24M7207	8	Washer	8.400 X 24 X 2 mm
9	14M7298	8	Flange Nut	M8
10	03M7184	2	Bolt	M8 X 20
11	19M7897	7	Screw	M8 X 35
11	14M7298	7	Flange Nut	M8
12	H127998	1	Cover	(USE WITH PERFORATED AUGER HOUSING)
13	H141450	1	Strap	-
14	24H1291	4	Washer	21/64" X 1-15/32" X 7/64"
15	14M7298	2	Flange Nut	M8
16	14M7298	1	Flange Nut	M8
17	24H1291	1	Washer	21/64" X 1-15/32" X 7/64"
18	19M7867	1	Screw	M8 X 25
19	19M7863	3	Screw	M6 X 25
20	24H1291	9	Washer	21/64" X 1-15/32" X 7/64"
21	28H5	3	Washer	0.269" X 0.405" X 1/4"
22	14M7303	3	Flange Nut	M6
1A	H109093	1	Spout	(SUB H141449)
1B	H141449	1	Spout	-
1C	H149780	1	Spout	-

Horizontal Unloading Auger Housing (14 ft And 17 ft)

Нет текстового описания
