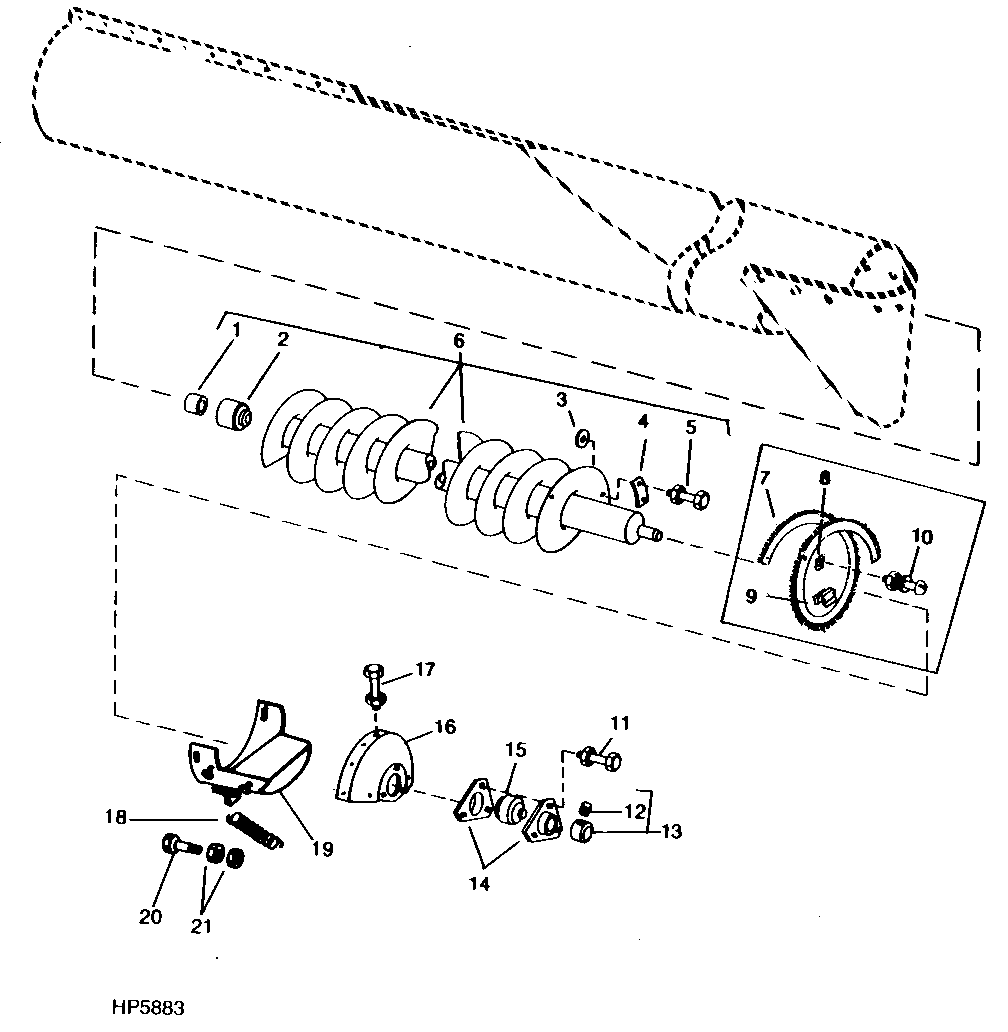

Horizontal Unloading Auger (14 ft And 17 ft (1) Piece Augers)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N72989	1	Bushing	-
2	AH122717	1	Gudgeon	(14' ONLY), FOR AUGER REPAIR ONLY
2	H127921	1	Splined Coupling	W/O WASHER (17' ONLY) FOR AUGER REPAIR ONLY
3	24H1300	1	Washer	25/64" X 2" X 0.220"
3	24H1311	1	Washer	13/32" X 1-1/4" X 0.220"
4	H119566	1	Strip	100 MM (4") LONG
4	H119567	1	Strip	120 MM (5") LONG
4	H119568	1	Strip	150 MM (6") LONG
5	03H1495	1	Bolt	3/8" X 1-1/2"
5	03H1557	1	Bolt	3/8" X 1-1/4"
5	K40003	1	Lock Nut	-
6	AH123436	1	Auger	(14'), INCLUDES AH122717 AND H127921
6	AH132032	1	Auger	(14'), INCLUDES AH122717 AND H127921
6	AH123437	1	Auger	(17'), INCLUDES AH122717 AND H127921
6	AH132033	1	Auger	(17'), INCLUDES AH122717 AND H127921
6	AH143729	1	Auger	-
7	AH111354	1	Seal	-
8	H113717	3	Clip	-
9	H114709	6	Clip	-
10	21H1029	3	Screw	5/16" X 3/4", (SUB 21H1304)
10	12H303	3	Lock Washer	5/16"
10	14H785	3	Nut	5/16"
11	03M7184	3	Bolt	M8 X 20
11	14M7298	3	Flange Nut	M8
12	22H897	1	Set Screw	1/4" X 1/4"
13	JD8554	1	Eccentric Locking Collar	-
14	H103264	2	Pressed Flanged Housing	-
15	JD8665	1	Ball Bearing	-
16	H96645	1	Cap	-
17	19M7866	5	Screw	M8 X 20
17	14M7298	5	Flange Nut	M8
18	J18468	2	Extension Spring	-
19	AH132230	1	Door	(INCLUDES Z24604)
20	19M7868	1	Screw	M8 X 30
21	14M7298	2	Flange Nut	M8
