Открытый узел

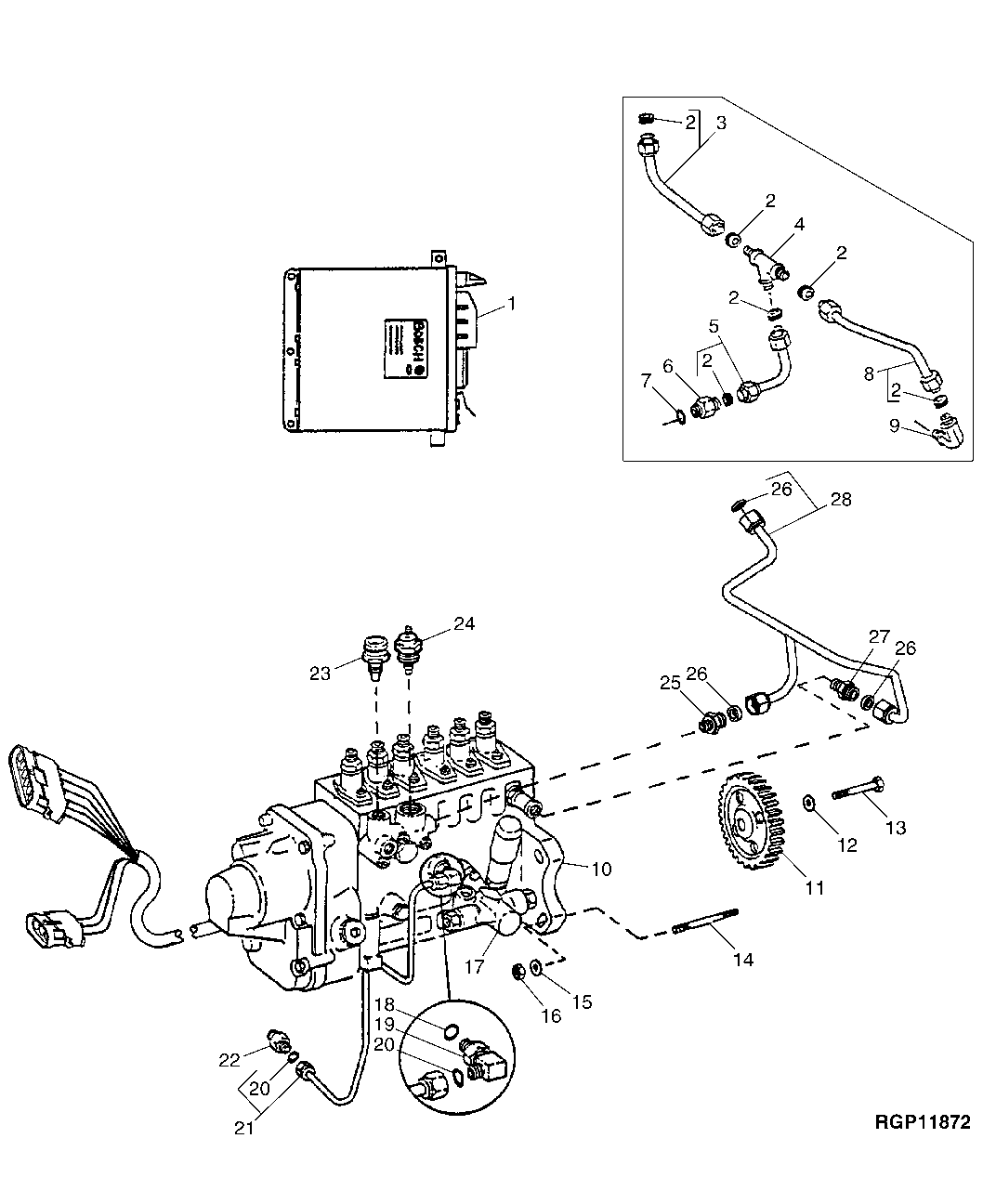

Fuel Injection Pump, Lube Line and Engine Controller (567571 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE501247	1	Engine Controller	NLA, BOSCH (MARKED RE28320) (SUB RE501711)
1	RE66565	1	Engine Controller	NLA, BOSCH (MARKED RE28320) (SUB RE501247)
1	RE502125	1	Harness Kit	MOUNTING, BOSCH TO FOCUS L3 ECU CONVERSION (REFER TO DTAC SOLUTION 70539) (CONTAINS RE502104, (6) 14M7303, RE501940 AND H77698)
1	SE502810	1	Engine Controller Reman	(Level 3) 24 V, REMAN FOR RE502406
1	RE502406	1	Engine Controller	24V FOCUS L3 (ORDER WITH ESN) (MARKED RE502406)
1	RE507744	1	Engine Controller	NLA, 24V FOCUS L3 (FUEL PUMP WITHOUT ELAB) (MARKED RE502406) (SUB RE502406)
1	SE502809	1	Engine Controller Reman	(Level 3) 12 V, REMAN FOR RE502404
1	RE501250	1	Engine Controller	NLA, 12V FOCUS L3 (MARKED RE502404) (SUB RE502404)
1	RE500111	1	Engine Controller	NLA, 12V FOCUS L3 (MARKED RE66614) (SUB RE501250)
1	RE501249	1	Engine Controller	NLA, 12V FOCUS L3 (MARKED RE502404) (SUB RE502404)
1	RE501812	1	Engine Controller	NLA, REMANUFACTURED (MARKED RE501731) (SUB RE501249 AND RE502125)
1	RE501711	1	Engine Controller	NLA, BOSCH (MARKED RE28320) (SUB RE501812)
1	RE502404	1	Engine Controller	12V FOCUS L3 (ORDER WITH ESN) (MARKED RE502404)
2	R51936	6	Sealing Washer	-
3	RE30920	1	Fuel Line	-
4	R97061	1	Tee Fitting	-
5	RE30833	1	Fuel Line	-
6	R91824	1	Fitting	-
7	R48693	1	Washer	-
8	RE35684	1	Fuel Line	-
9	R67364	1	Elbow Fitting	-
10	RE57372	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED") NLA, BOSCH NO. PES6P120A720RS3184 (0-402-196-703) (SUB SE500442)
10	SE500444	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED") REMANUFACTURED FOR RE502259
10	RE502259	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED") BOSCH NO. PES6P120A720RS3404 (0-402-196-714) (FOR HARVESTER APPLICATIONS, REUSE TRANSFER PUMP INLET ADJUSTABLE ELBOW FROM THE OLD PUMP OR ORDER RE34128 ELBOW.) (ALSO ORDER R121164 AND (4) R121195)
10	RE63514	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED") NLA, BOSCH NO. PES6P120A720RS3347 (0-402-196-705) (SUB SE500443)
10	SE500442	1	Fuel Injection Pump Reman	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED") REMANUFACTURED FOR RE57372, BOSCH NO. 0-402-196-703
10	SE500443	1	Fuel Injection Pump Reman	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED") REMANUFACTURED FOR RE63514, BOSCH NO. 0-402-196-705
11	R104590	1	Gear	-
12	R63845	4	Washer	-
13	R121195	4	Cap Screw	9.525 X 15.900 mm (3/8" X 0.626"), (SUB R121195)
14	R515224	4	Stud	(SUB FOR R55396 OR R114130)
15	24M7239	4	Washer	10.700 X 21 X 2.500 mm, (SUB FOR M72490)
16	14H1090	4	Nut	3/8", (SUB FOR E55662, THIS APPLICATION)
17	RE46252	1	Fuel Pump	-
18	R79060	1	O-Ring	(SUB FOR R73858)
19	AR88903	1	Elbow Fitting	-
20	R67264	2	Packing	-
..	51M4238	1	Sealing Ring	(SUB FOR R53899)
..	RE502104	1	Wiring Harness	BOSCH TO FOCUS L3 ECU CONNECTOR ADAPTER
..	14M7303	6	Flange Nut	M6
..	RE501940	1	Bracket	FOCUS L3 ECU MOUNTING PLATE
..	H77698	1	Tie Band	ECU WIRING HARNESS ADAPTER TO VEHICLE WIRING

Fuel Injection Pump, Lube Line and Engine Controller (567571 - )

Нет текстового описания
