Front Variable Drive Sheave and Mountings

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(A) OUTER
2	32243	1	Plug	-
3	H107793	1	Washer	-
4	19H1936	6	Cap Screw	3/8" X 3/4", (USE WITH H108673)
4	12H304	6	Lock Washer	3/8", (USE WITH H108673)
4	19M7938	6	Cap Screw	M10 X 20, (A) (USE WITH H168126)
4	12M7135	6	Lock Washer	10 mm, (A) (USE WITH H168126)
5	H155459	1	Retainer	(SUB FOR H93368)
6	19H3034	3	Cap Screw	3/8" X 3", (USE WITH H108673)
6	12H304	3	Lock Washer	3/8", (USE WITH H108673)
6	19M9042	3	Cap Screw	M10 X 80, (A) (USE WITH H168126)
6	21M7135	3	SCREW	M4 X 25, (A) (USE WITH H168126)
7	H108673	1	Pulley	(SUB H168126)
7	H168126	1	Pulley	(ALSO ORDER (6) 19M7938 AND (6) 12M7135) (USE WITH 34M7255)
8	B3118R	1	Snap Ring	-
9	22H775	2	Set Screw	5/16" X 1/4"
10	H110922	1	Ball	-
11	34H305	1	Spring Pin	7/32" X 2", (USE WITH H108673)
11	34M7255	1	Spring Pin	6 X 50 mm, (USE WITH H168126)
12	H125711	1	V-Belt	LGTH = 4520 mm, WIDTH = 38.1 mm
13	JD7798	2	Lubrication Fitting	-
14	AH157933	1	Pulley	(SUB AH201417)
14	AH201417	1	Pulley	-
15	H110728	1	Round Retainer	(A)
16	H97308	1	Snap Ring	(A)
17	AH108161	1	Seal	(A)
18	26H104	1	Shaft Key	5/16" X 2-1/8", (A)
19	-	1	Part 28	(A) INNER
20	H172267	1	Compression Spring	(SUB FOR H92260)
21	AH96345	1	Seal	(A)
22	19H1863	1	Cap Screw	5/8" X 3"
23	P50456	2	Washer	-
24	H148132	2	Bushing	(SUB FOR H80197)
25	H148133	2	Retainer	(SUB FOR H78856)
26	T55761	1	Support	-
27	R20136	1	Washer	-
28	19H1950	1	Cap Screw	5/8" X 3-3/4"
29	Z64078	1	Spacer	-
30	AH135606	1	Shaft	For 9500SH, VARIABLE AND FIXED SPEED
30	AH152937	1	Shaft	Not For 9500SH, CONTOUR MASTER (ALSO ORDER AXE10874 AND AH233089)
30	AH136873	1	Shaft	Not For 9500SH, CONTOUR MASTER
30	AH97642	1	Shaft	Not For 9500SH, VARIABLE AND FIXED SPEED
31	AH144099	1	Support	Not For 9500SH, (SUB FOR AH139919 OR AH130175)
31	AH135124	1	Support	For 9500SH
32	H95417	1	Spacer	-
33	H97410	1	Washer	-
34	R62502	1	Support	-
35	24M7241	1	Washer	17 X 34 X 4 mm
36	19M7784	1	Screw	M10 X 20, For 9500SH
37	03M7191	5	Bolt	M10 X 25
37	14M7296	5	Flange Nut	M10
..	AH232574	1	Cam Kit	45 DEGREE, CAMS (INCLUDES PARTS MARKED (A)) (SUB FOR AH138751 OR AH154890 OR AH213113)

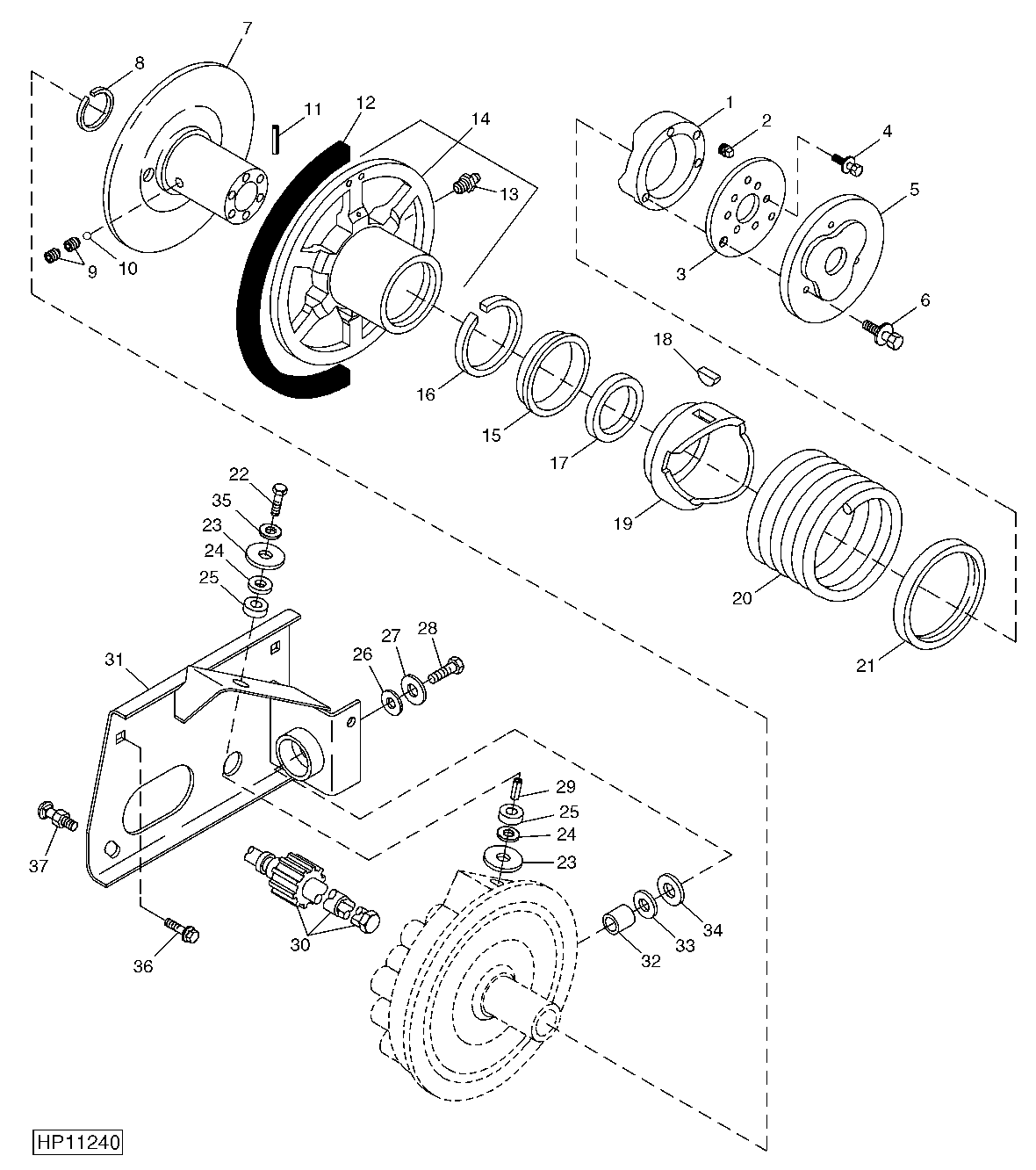

Front Variable Drive Sheave and Mountings
