JDLink™ Modular Telematics Gateway (MTG) and Satellite Controller Mounting and Antennas, 3G ( - 687015)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT412808	1	Bracket	-
2	AT399832	1	Antenna	See DTAC Solution 88359
3	R44302	12	Tie Band	-
4	R44302	3	Tie Band	-
5	AT377288	1	Wiring Harness	JDLink Satellite (SAT) Harness
6	19M7865	6	Screw	M8 X 16
7	T196079	10	Nut	-
8	AT456381	2	Bracket	-
9	19M7868	10	Screw	M8 X 30
10	T316918	2	Windowpane	-
11	-	2	Part 11	MF T59937, CTL
12	24M7298	8	Washer	8.400 X 25 X 2 mm
13	T309885	8	Spacer	-
14	19M9840	8	Screw	M8 X 40
15	R44302	3	Tie Band	-
16	R44302	2	Tie Band	-
17	T209627	4	Clamp	-
18	AT438112	1	Wiring Harness	JDLink™ Modular Telematics Gateway (MTG) Harness
19	57M10615	1	Elec. Connector Housing	Modular Telematics Gateway (MTC) J2
19	57M10330	5	Elec. Connector Terminal	-
19	57M10617	4	Elec. Connector Housing	-
20	57M11395	1	Elec. Connector Housing	Cab Connector
20	R78066	7	Elec. Connector Terminal	-
21	57M8634	1	Elec. Connector Housing	Satellite Module
21	R78065	5	Elec. Connector Terminal	-
22	57M7682	1	Elec.Connect Locking Device	-
23	57M8013	1	Elec.Connect Locking Device	-
24	57M11287	1	Elec. Connector Accessory	-
25	T63817	1	Grommet	-
26	T260096	1	Anchor	-
27	PF81427	1	Antenna	Satellite Antenna
28	R44302	3	Tie Band	-
29	R62356	1	Grommet	-

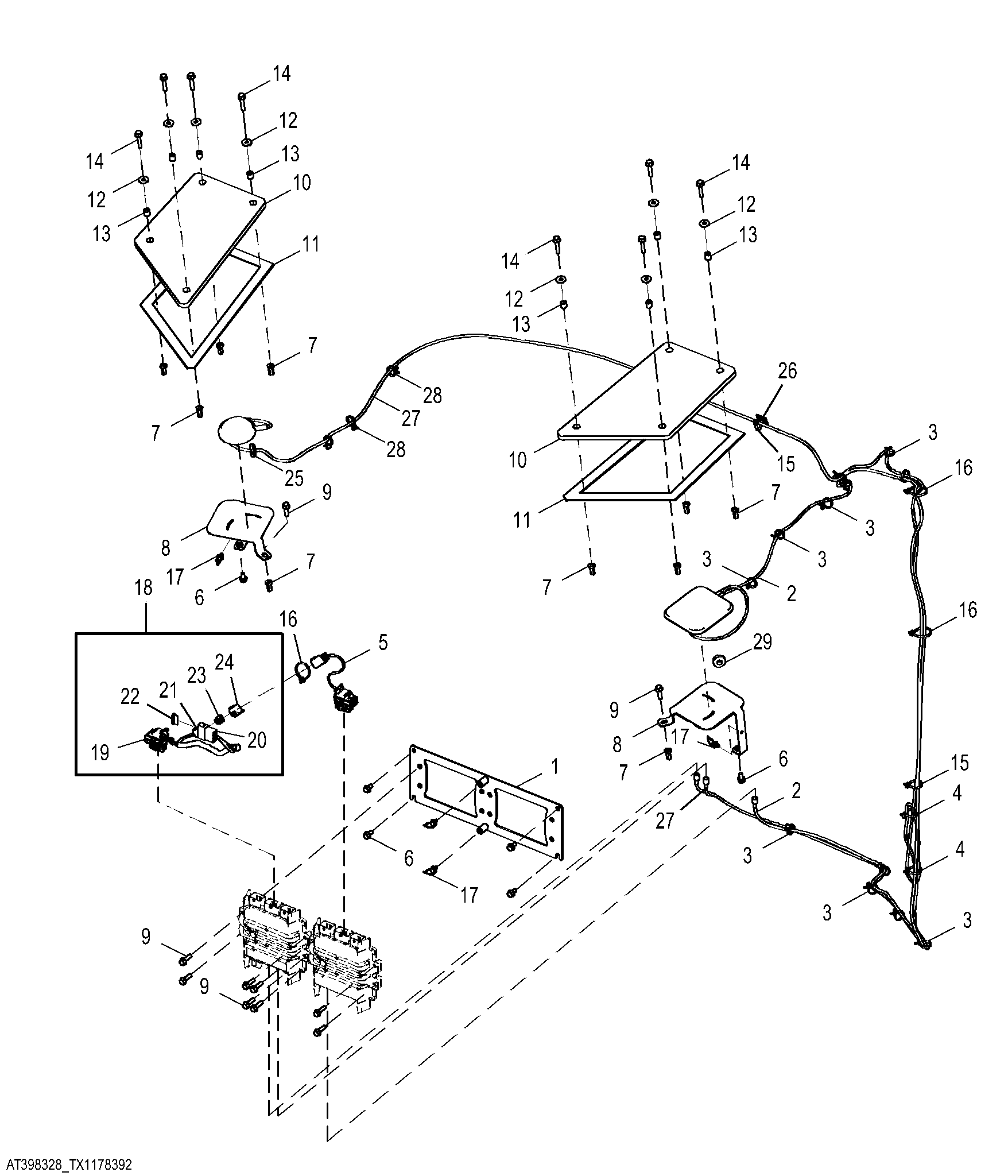

JDLink™ Modular Telematics Gateway (MTG) and Satellite Controller Mounting and Antennas, 3G ( - 687015)
