JDLink™ Modular Telematics Gateway (MTG) 4G Controller Mounting and Antenna (687016 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT412808	1	Bracket	-
2	T386484	1	Bracket	-
3	AT475996	1	Wiring Harness	JDLink™ Modular Telematics Gateway (MTG) Harness
4	57M10615	1	Elec. Connector Housing	48 W, Modular Telematics Gateway (MTC) J2, X9002
4	57M10330	8	Elec. Connector Terminal	-
4	57M10617	4	Elec. Connector Housing	-
4	57M10333	32	Elec. Connector Cavity Plug	-
4	57M10334	4	Elec. Connector Cavity Plug	-
5	57M10613	1	Elec. Connector Housing	-
6	57M11395	1	Elec. Connector Housing	12 W, Cab Connector, X9
6	R78066	10	Elec. Connector Terminal	-
6	R78069	2	Elec. Connector Cavity Plug	-
7	57M8634	1	Elec. Connector Housing	6 W, Satellite Module, X91A
7	R78065	5	Elec. Connector Terminal	-
7	R78069	1	Elec. Connector Cavity Plug	-
8	57M7682	1	Elec.Connect Locking Device	-
9	57M8013	1	Elec.Connect Locking Device	-
10	57M11287	1	Elec. Connector Accessory	-
11	PFA10896	1	Antenna	SUB FOR PFA10890
12	R44302	14	Tie Band	-
13	R44302	1	Tie Band	-
14	T209627	3	Clamp	-
15	T196079	9	Nut	-
16	T309885	4	Spacer	-
17	24M7298	4	Washer	8.400 X 25 X 2 mm
18	19M9840	8	Screw	M8 X 40
19	H156360	1	Nut	-
20	19M7865	4	Screw	M8 X 16
21	19M7868	4	Screw	M8 X 30
22	T316918	1	Windowpane	-
23	T318493	1	Cover	-
24	-	1	Part 32	MAKE FROM T59937, CTL AR
25	R62356	1	Grommet	-
26	T238675	2	Label	Green Sealing
27	19M7866	2	Screw	M8 X 20

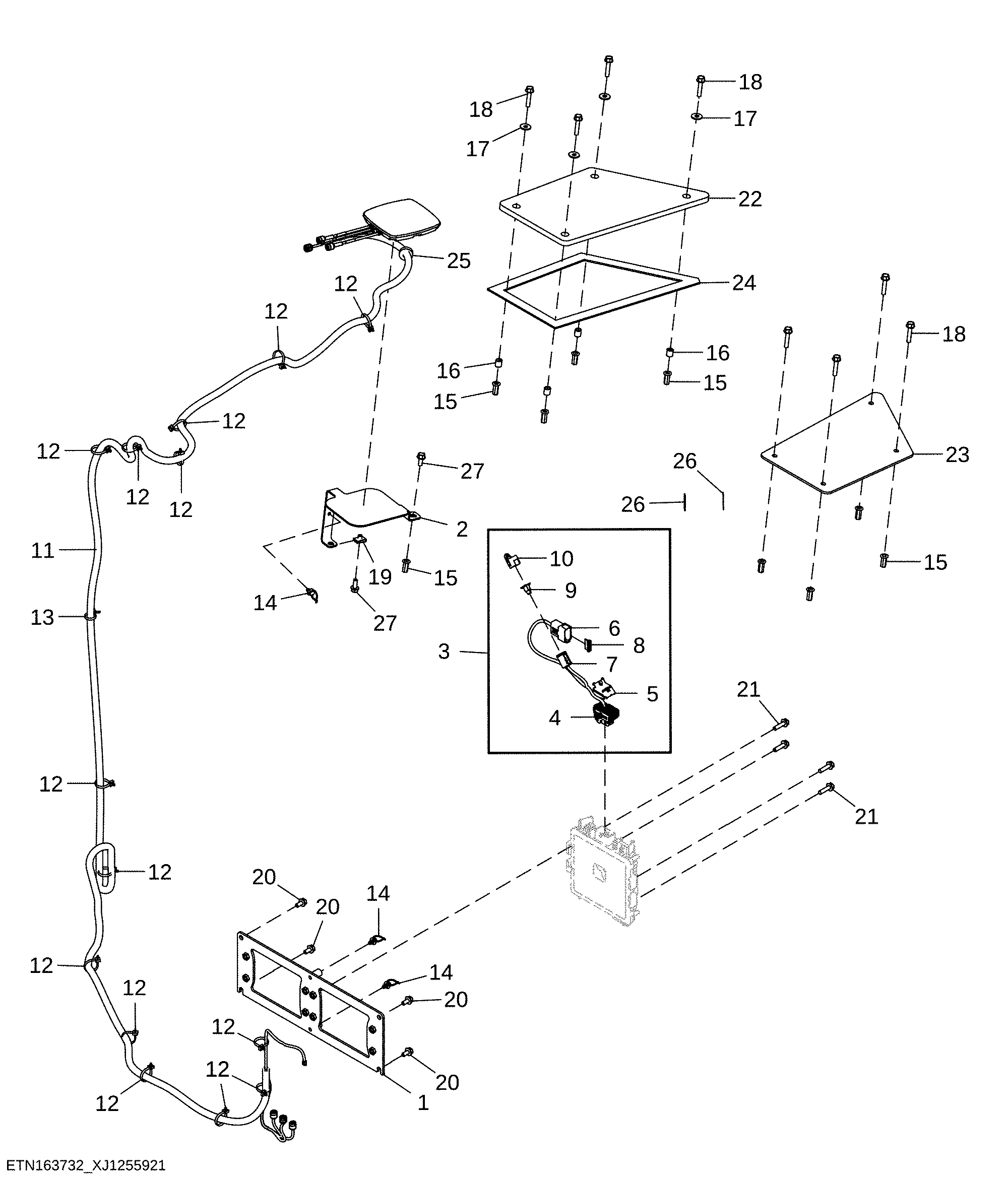

JDLink™ Modular Telematics Gateway (MTG) 4G Controller Mounting and Antenna (687016 - )

Нет текстового описания
