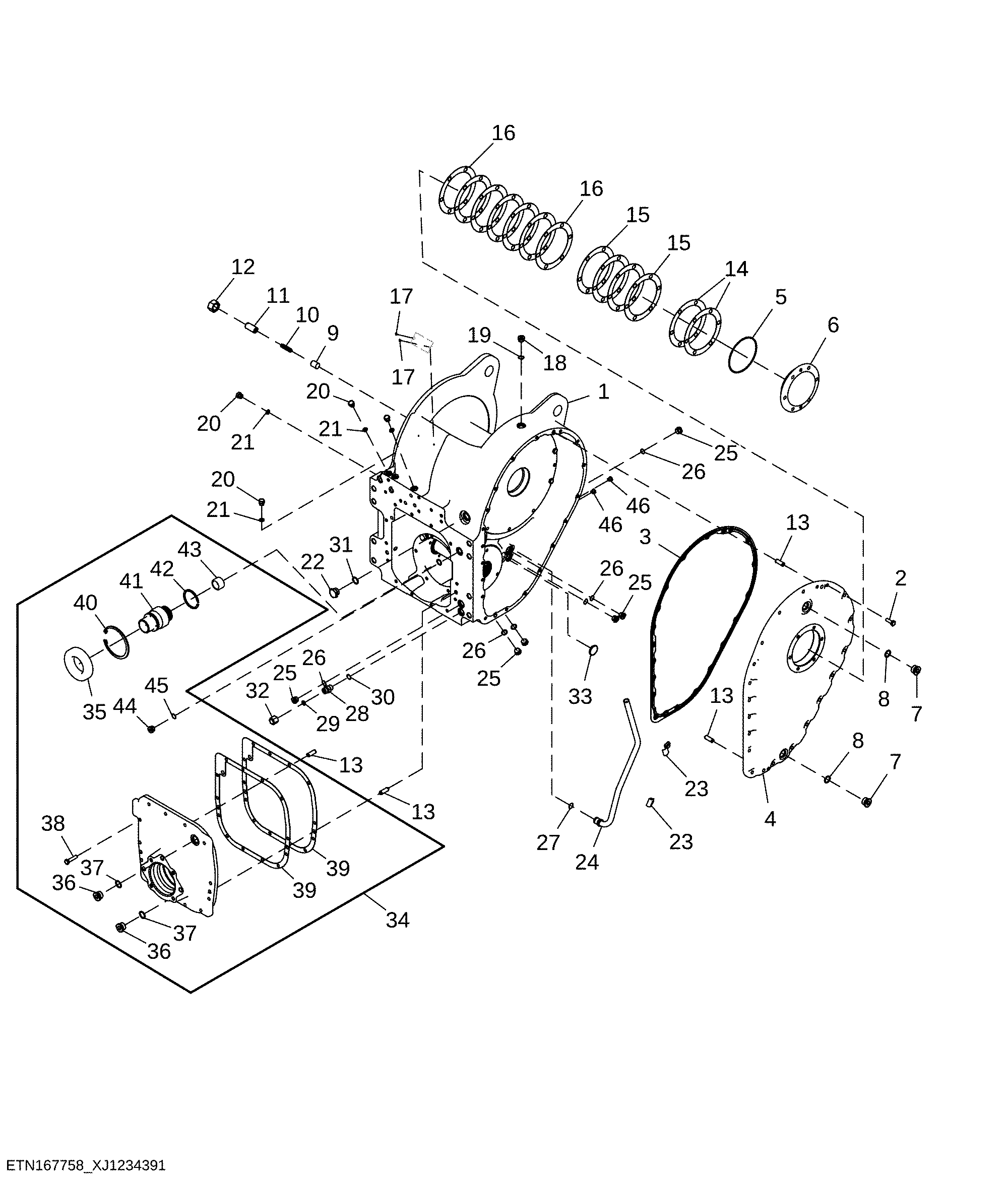

Housing and Front Cover, 4000 Winch (677801 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T84710	1	Housing	-
2	19M7662	25	Cap Screw	M10 X 30
3	T400479	1	Gasket	Side Cover, SUB FOR T84701
4	T84700	1	Cover	-
5	T51625	1	O-Ring	-
6	T84702	1	Bearing Housing W/O Bearing	-
7	64H1020	2	Drain Plug	-
8	U12547	2	O-Ring	-
9	T132916	1	Arrestor	-
10	T132915	1	Compression Spring	-
11	T132914	1	Set Screw	-
12	14M7278	1	Nut	M24
13	T26565	4	Dowel Pin	-
14	R46323	2	Shim	0.076 mm (0.003 in.)
15	R46324	4	Shim	0.127 mm (0.005 in.)
16	R46325	7	Shim	0.254 mm (0.010 in.)
17	37H26	2	Screw	0.116" X 1/4"
18	64H1018	1	Drain Plug	-
19	R26375	1	O-Ring	-
20	64H1004	4	Drain Plug	-
21	R26448	4	O-Ring	-
22	R45438	1	Fitting	-
23	R41465	2	Clamp	-
24	AT87481	1	Oil Tube	-
25	64H1018	6	Drain Plug	-
26	R26375	6	O-Ring	-
27	T77858	1	O-Ring	-
28	38H1161	1	Adapter Fitting	ORDER 38H3161
28	38H3161	1	Adapter Fitting	-
29	T77857	1	O-Ring	-
30	R26375	1	O-Ring	-
31	R56463	1	O-Ring	-
32	38H1416	1	Fitting	-
33	M1206T	1	Plug	-
34	AT473766	1	Housing	-
35	AT139681	1	Ball Bearing	-
36	64H1020	2	Drain Plug	-
37	U12547	2	O-Ring	-
38	19M7572	13	Cap Screw	M10 X 45
39	T84826	2	Gasket	Gear Housing
40	40M7110	1	Snap Ring	-
41	T417975	1	Shaft	-
42	R26246	1	Snap Ring	-
43	JD8865	1	Needle Bearing	-
44	64H1018	1	Drain Plug	-
45	R26375	1	O-Ring	-
46	AN122518	2	Fitting Plug	INCLUDES R28782
46	R28782	1	O-Ring	-

Housing and Front Cover, 4000 Winch (677801 - )
