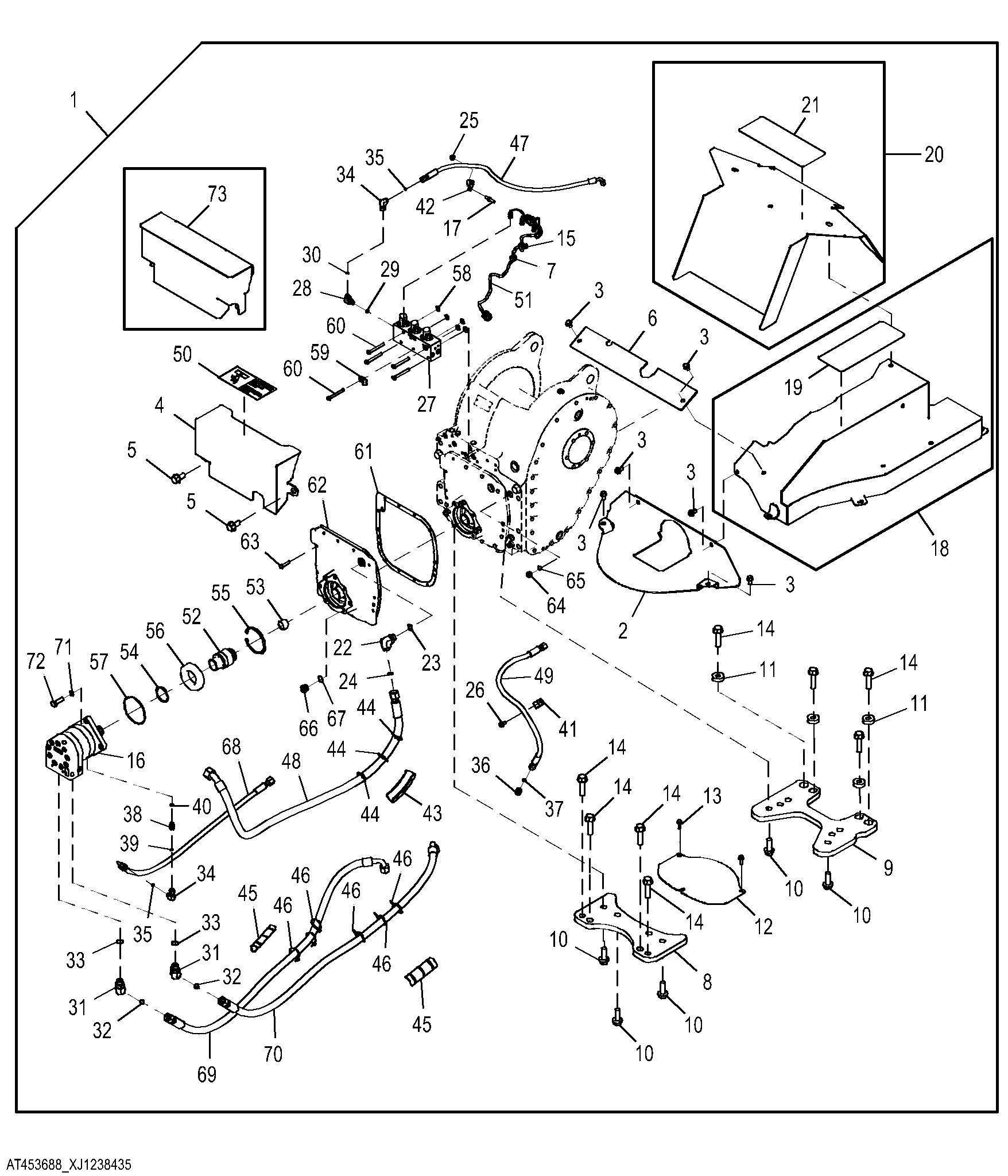

Hydraulic to Mechanical Winch Conversion Kit, 4000 Winch (677801 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT453688	1	Winch Kit	WHOLE GOODS
2	AT444496	1	Guard	Winch Motor
3	19M7788	6	Screw	M12 X 25
4	AT477782	1	Guard	Winch Valve
5	19M8709	2	Screw	M20 X 40
6	T329275	1	Plate	-
7	R70350	1	Grommet	-
8	T348580	1	Plate	Front, High Strength, ORDER T394253
8	T394253	1	Plate	-
9	T348579	1	Plate	Rear, ORDER T394255
9	T394255	1	Plate	-
10	19M7851	6	Screw	M20 X 60
11	T298203	4	Spacer	-
12	T348596	1	Plate	Debris Cover
13	19M7786	2	Screw	M10 X 30
14	19M7831	8	Screw	M20 X 80
15	H224073	1	Tie Band	-
16	AT471766	1	Hydraulic Motor	-
17	T161803	1	Stud	-
18	AT437478	1	Guard	Fuel Tank
19	H21259	1	Mat	-
20	AT437479	1	Guard	Slip Protection
21	H21259	1	Mat	-
22	38H1007	1	Elbow Fitting	-
23	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
24	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
25	14M7296	1	Flange Nut	M10
26	19M7784	1	Screw	M10 X 20
27	T204128	6	Screw	-
27	KV26542	1	Seal Kit	-
27	AT431990	3	Solenoid Valve	-
27	AT408334	1	Control Valve	-
28	38H1004	1	Elbow Fitting	-
29	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
30	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
31	38H1048	1	Elbow Fitting	-
32	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
33	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
34	38H1094	1	Elbow Fitting	-
35	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
36	38H1147	1	Fitting Plug	-
37	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
38	38H1160	1	Adapter Fitting	-
39	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
40	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
41	T24959	1	Clamp	-
42	T76719	1	Clamp	-
43	AT313439	1	Hose Guard	-
44	R44302	3	Tie Band	-
45	AT313439	2	Hose Guard	-
46	R44302	3	Tie Band	-
47	AT413444	1	Hydraulic Hose	Fabricate
48	AT413447	1	Hydraulic Hose	Fabricate
49	AT444471	1	Hydraulic Hose	Fabricate
50	T361108	1	Safety Sign	Winch Hoist Warning
51	AT438022	1	Wiring Harness	Winch Harness
52	T304442	1	Shaft	-
53	JD8865	1	Needle Bearing	-
54	R26246	1	Snap Ring	-
55	40M7110	1	Snap Ring	-
56	AT139681	1	Ball Bearing	-
57	F37030250	1	O-Ring	-
58	U46731	5	O-Ring	-
59	N380408	1	Clamp	-
60	19M8183	5	Cap Screw	M10 X 90
61	T84826	1	Gasket	-
62	AT473766	1	Housing	-
63	19M7572	13	Cap Screw	M10 X 45
64	64H1018	1	Drain Plug	-
65	R26375	1	O-Ring	-
66	64H1020	1	Drain Plug	-
67	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
68	AT430691	1	Hydraulic Hose	Fabricate
69	AT404963	1	Hydraulic Hose	Fabricate
70	AT404963	1	Hydraulic Hose	Fabricate
71	24M7298	3	Washer	8.400 X 25 X 2 mm
72	19M7397	3	Cap Screw	M16 X 50
73	AT469237	1	Guard	-
