Большое обновление пильных узлов

Смотреть

Тип техники

Бренд

Машина

Большое обновление пильных узлов

Смотреть

Открытый узел

Grapple, Winch and Auxiliary Valve, Dual Function Arch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT472452	1	Bracket	-
1	AT410150	1	Bracket	NLA; ORDER AT472452
2	T168574	2	Spacer	-
3	19M7791	4	Bolt	M12 X 40
4	AT413076	1	Spool Valve	Reference DTAC Solution116730 Control Valve 5 Section, ORDER AT507428; ALSO ORDER AT497868
4	AT507428	1	Spool Valve	Reference DTAC Solution116730, SUB FOR AT460590; ALSO ORDER AT497868
4	AT479244	1	Spool Valve	Reference DTAC Solution116730, ORDER AT494967; ALSO ORDER AT497868
4	AT494967	1	Spool Valve	ALSO ORDER AT497868
4	AT521029	1	Spool Valve	ALSO ORDER AT497868
4	AT497868	1	Hydraulic Hose	INCLUDES U10289
4	U10289	1	O-Ring	-
5	19M7835	3	Screw	M10 X 35
6	AT448567	1	Flow Control Hyd. Valve	INCLUDES AT199671
6	AT199671	1	Seal Kit	-
6	AT461962	1	Control Valve	-
6	AT451596	1	Control Valve	Inlet Section,Components Listed on Separate Pages, ALSO ORDER AT416486 AND AT448567
7	AT415619	1	Control Valve	Outlet Section
8	AT431504	5	Pressure Relief Valve	INCLUDES (5) R199687
8	R199687	5	O-Ring	-
9	AT444007	1	Pressure Relief Valve	4300 PSI Tong Close/Winch In Circuit Relief And Anticavitation Check Valve, INCLUDES 51M7044
9	AT479256	1	Pressure Relief Valve	4300 PSI, INCLUDES 51M7044
9	51M7044	1	O-Ring	17.300 X 2.200 mm
10	AT444008	2	Pressure Relief Valve	4700 PSI Boom Down/Winch In Circuit Relief And Anticavitation Check Valve, INCLUDES 51M7044
10	AT479256	2	Pressure Relief Valve	4300 PSI, INCLUDES 51M7044
10	51M7044	1	O-Ring	17.300 X 2.200 mm
11	AT448566	2	Pressure Relief Valve	-
11	AT507383	1	Spool Valve	Auxiliary Section, Components Listed on Separate Pages
11	AT448563	1	Spool Valve	Auxiliary Section, Components Listed on Separate Pages, NLA; ORDER AT507383, ALSO ORDER (2) AT448566
11	AT461964	1	Spool Valve	Auxiliary Section, Components Listed on Separate Pages, ORDER AT507383
12	AT448563	1	Spool Valve	Winch Section Components Listed on Separate Pages, NLA; ORDER AT507383, ALSO ORDER AT431504
12	AT461964	1	Spool Valve	Winch Section Components Listed on Separate Pages, ORDER AT507383
12	AT507383	1	Spool Valve	Winch Section Components Listed on Separate Pages
12	AT523914	1	Spool Valve	Winch Section Components Listed on Separate Pages
13	AT448563	1	Spool Valve	Boom Section, Components Listed on Separate Pages, NLA; ORDER AT507386; ALSO ORDER AT431504
13	AT461964	1	Spool Valve	Boom Section, Components Listed on Separate Pages, ORDER AT507386
13	AT497807	1	Spool Valve	Boom Section, Components Listed on Separate Pages, ORDER AT507386
13	AT507386	1	Spool Valve	Boom Section, Components Listed on Separate Pages
14	AT448563	1	Spool Valve	Tong Section, Components Listed on Separate Pages, NLA; ORDER AT507383, ALSO ORDER AT431504
14	AT461964	1	Spool Valve	Components Listed on Separate Pages, ORDER AT507383
14	AT507383	1	Spool Valve	Components Listed on Separate Pages
15	AT461964	2	Spool Valve	Arch Section, Components Listed on Separate Pages, ORDER AT507385
15	AT507385	1	Spool Valve	Arch Section, Components Listed on Separate Pages
15	AT497806	1	Spool Valve	Arch Section, Components Listed on Separate Pages, ORDER AT507385
15	AT448563	1	Spool Valve	Arch Section, Components Listed on Separate Pages, NLA; ORDER AT507385; ALSO ORDER (2) AT431504
16	T314225	3	Tie Rod Assembly	-
17	T170269	6	Nut	-
18	64H1020	10	Drain Plug	-
18	U12547	10	O-Ring	-
19	64H1017	10	Drain Plug	-
19	R26448	10	O-Ring	-
20	AT416486	1	Pressure Relief Valve	INCLUDES AT314538
20	AT314538	1	Seal Kit	INCLUDES R111235, R79060 AND T107887
20	R111235	1	Back-Up Ring	-
20	R79060	1	O-Ring	-
20	T107887	1	O-Ring	-

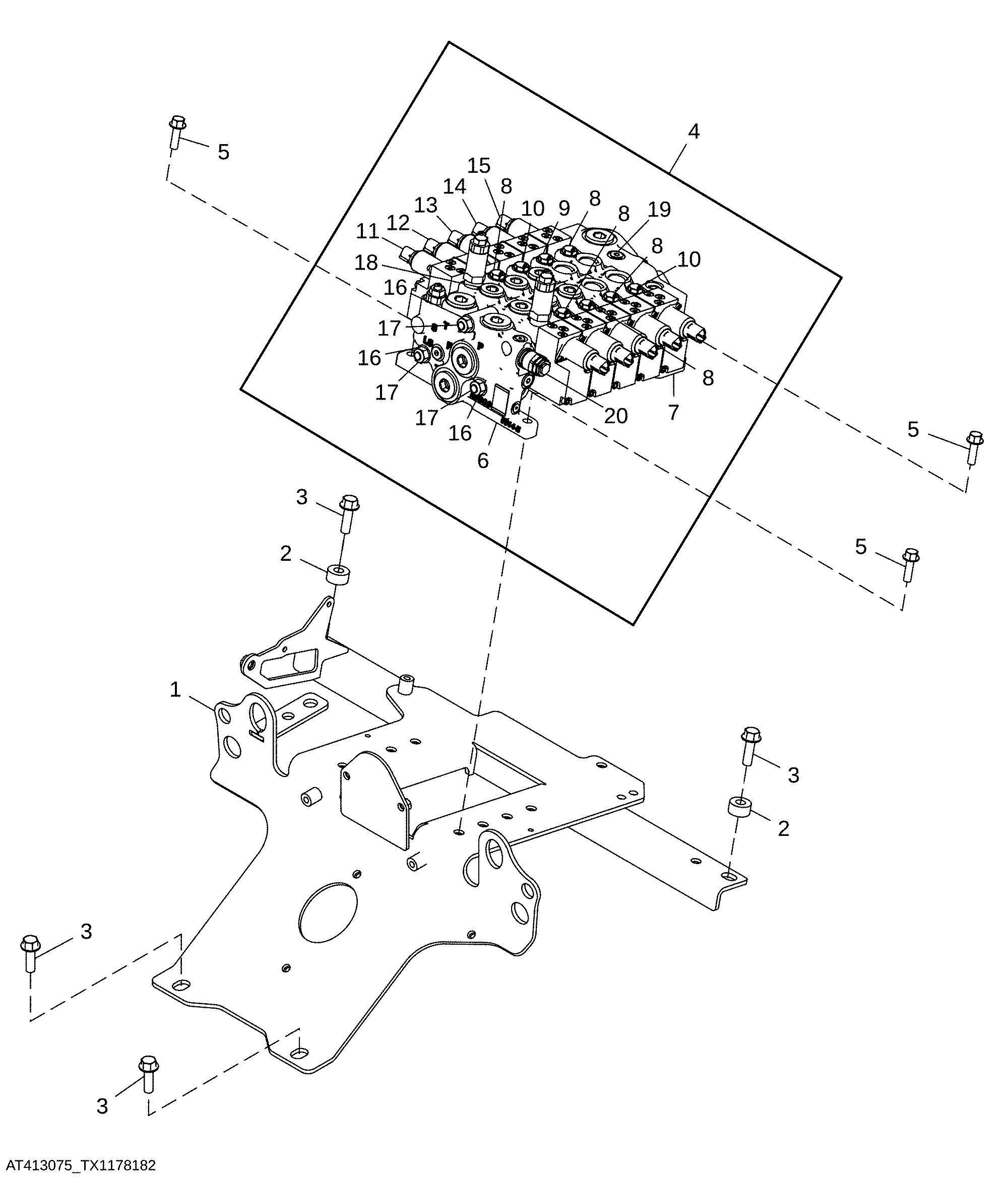

Grapple, Winch and Auxiliary Valve, Dual Function Arch

Нет текстового описания
