Открытый узел

Grapple and Winch Valve, Dual Function Arch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT472452	1	Bracket	-
1	AT410150	1	Bracket	NLA; ORDER AT472452
2	19M7791	4	Bolt	M12 X 40
3	T168574	2	Spacer	-
4	AT400806	1	Spool Valve	Reference DTAC Solution116730, NLA; ORDER AT507427; ALSO ORDER AT497868
4	AT507427	1	Spool Valve	Reference DTAC Solution116730, SUB FOR AT460589; ALSO ORDER AT497868
4	AT479243	1	Spool Valve	Reference DTAC Solution116730, ORDER AT494968; ALSO ORDER AT497868
4	AT494968	1	Spool Valve	ALSO ORDER AT497868
4	AT521306	1	Spool Valve	ALSO ORDER AT497868
4	AT497868	1	Hydraulic Hose	INCLUDES U10289
4	U10289	1	O-Ring	-
5	19M7835	3	Screw	M10 X 35
6	AT461962	1	Control Valve	Components Listed on Separate Pages
6	AT199671	1	Seal Kit	-
6	AT448567	1	Flow Control Hyd. Valve	INCLUDES AT199671
6	AT451596	1	Control Valve	Inlet Section Components Listed on Separate Pages, ALSO ORDER AT416486 AND AT448567
7	AT415619	1	Control Valve	Outlet Section
8	AT444008	2	Pressure Relief Valve	4700 PSI, Boom Down/Winch In Circuit Relief And Anticavitation Check Valve, INCLUDES 51M7044
8	AT479256	2	Pressure Relief Valve	5200 PSI, INCLUDES 51M7044
8	51M7044	1	O-Ring	17.300 X 2.200 mm
9	AT444007	1	Pressure Relief Valve	4300 PSI, Tong Close/Winch In Circuit Relief And Anticavitation Check Valve, INCLUDES 51M7044
9	AT479256	1	Pressure Relief Valve	5200 PSI, INCLUDES 51M7044
9	51M7044	1	O-Ring	17.300 X 2.200 mm
10	R199687	5	O-Ring	-
10	AT431504	5	Pressure Relief Valve	Arch Out/Winch In Circuit Relief And Anticavitation Check Valve, INCLUDES R199687
11	AT448563	1	Spool Valve	Winch Section Components Listed on Separate Pages, ORDER AT507383, ALSO ORDER AT431504
11	AT461964	1	Spool Valve	Winch Section Components Listed on Separate Pages, ORDER AT507383
11	AT507383	1	Spool Valve	Winch Section Components Listed On Separate Pages
11	AT523914	1	Spool Valve	Winch Section Components Listed On Separate Pages
12	AT448563	1	Spool Valve	Boom Section Components Listed on Separate Pages, ORDER AT507386; ALSO ORDER AT431504
12	AT461964	1	Spool Valve	Boom Section Components Listed on Separate Pages, ORDER AT507386
12	AT497807	1	Spool Valve	Boom Section Components Listed on Separate Pages, ORDER AT507386
12	AT507386	1	Spool Valve	Boom Section Components Listed On Separate Pages
13	AT448563	1	Spool Valve	Tong Section Components Listed on Separate Pages, ORDER AT507383, ALSO ORDER AT431504
13	AT461964	1	Spool Valve	Components Listed on Separate Pages, ORDER AT507383
13	AT507383	1	Spool Valve	Tong Section Components Listed On Separate Pages
14	AT448563	1	Spool Valve	Arch Section Components Listed on Separate Pages, ORDER AT507385; ALSO ORDER (2) AT431504
14	AT507385	1	Spool Valve	Arch Section Components Listed On Separate Pages
14	AT497806	1	Spool Valve	Arch Section Components Listed on Separate Pages, ORDER AT507385
14	AT461964	1	Spool Valve	Arch Section Components Listed on Separate Pages, ORDER AT507385
15	AT416486	1	Pressure Relief Valve	INCLUDES AT314538
15	AT314538	1	Seal Kit	INCLUDES R111235, R79060 AND T107887
15	R111235	1	Back-Up Ring	-
15	R79060	1	O-Ring	-
15	T107887	1	O-Ring	-
16	T315715	3	Tie Rod Assembly	-
17	T170269	6	Nut	-
18	64H1017	8	Drain Plug	-
18	R26448	8	O-Ring	-

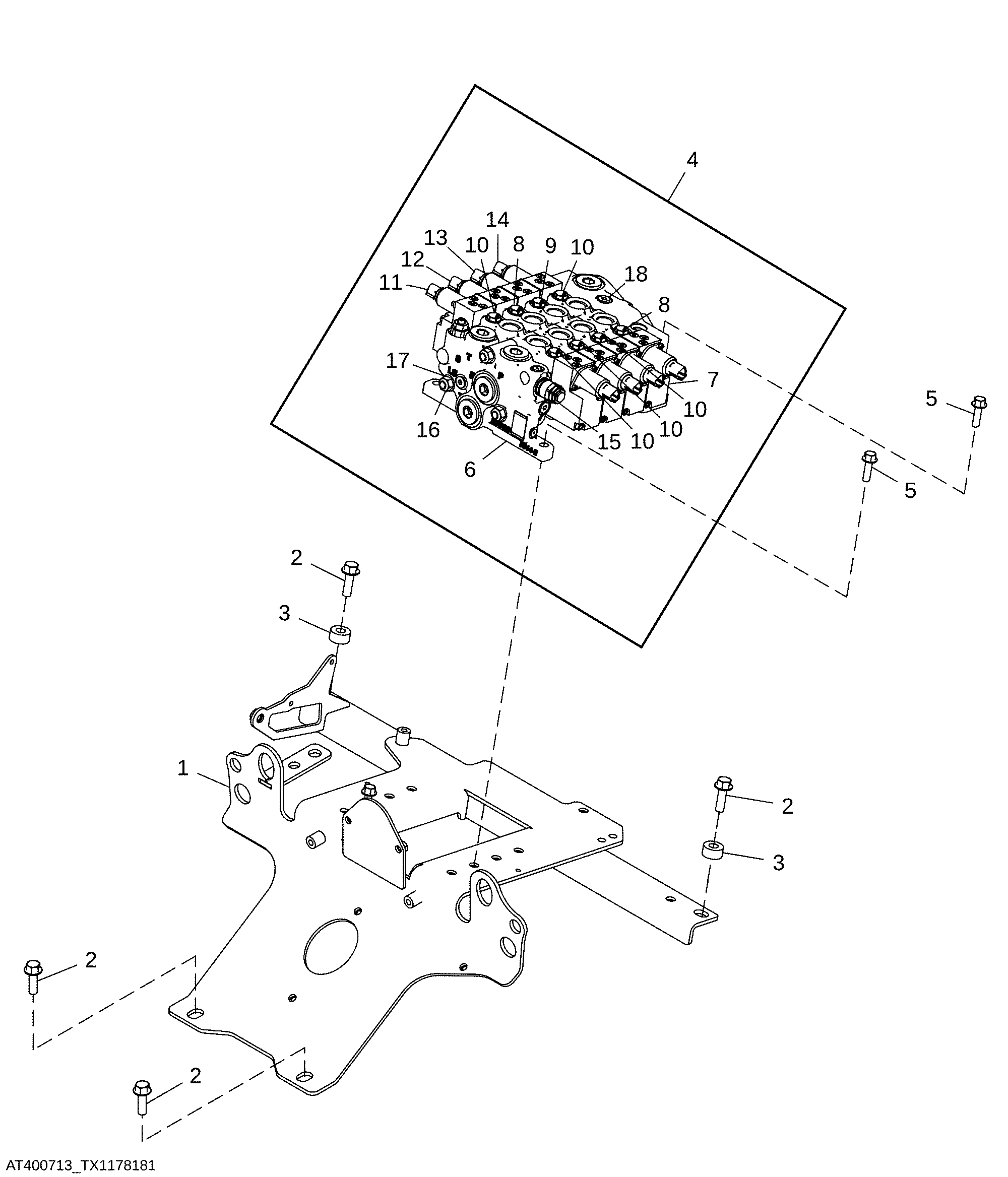

Grapple and Winch Valve, Dual Function Arch
