Открытый узел

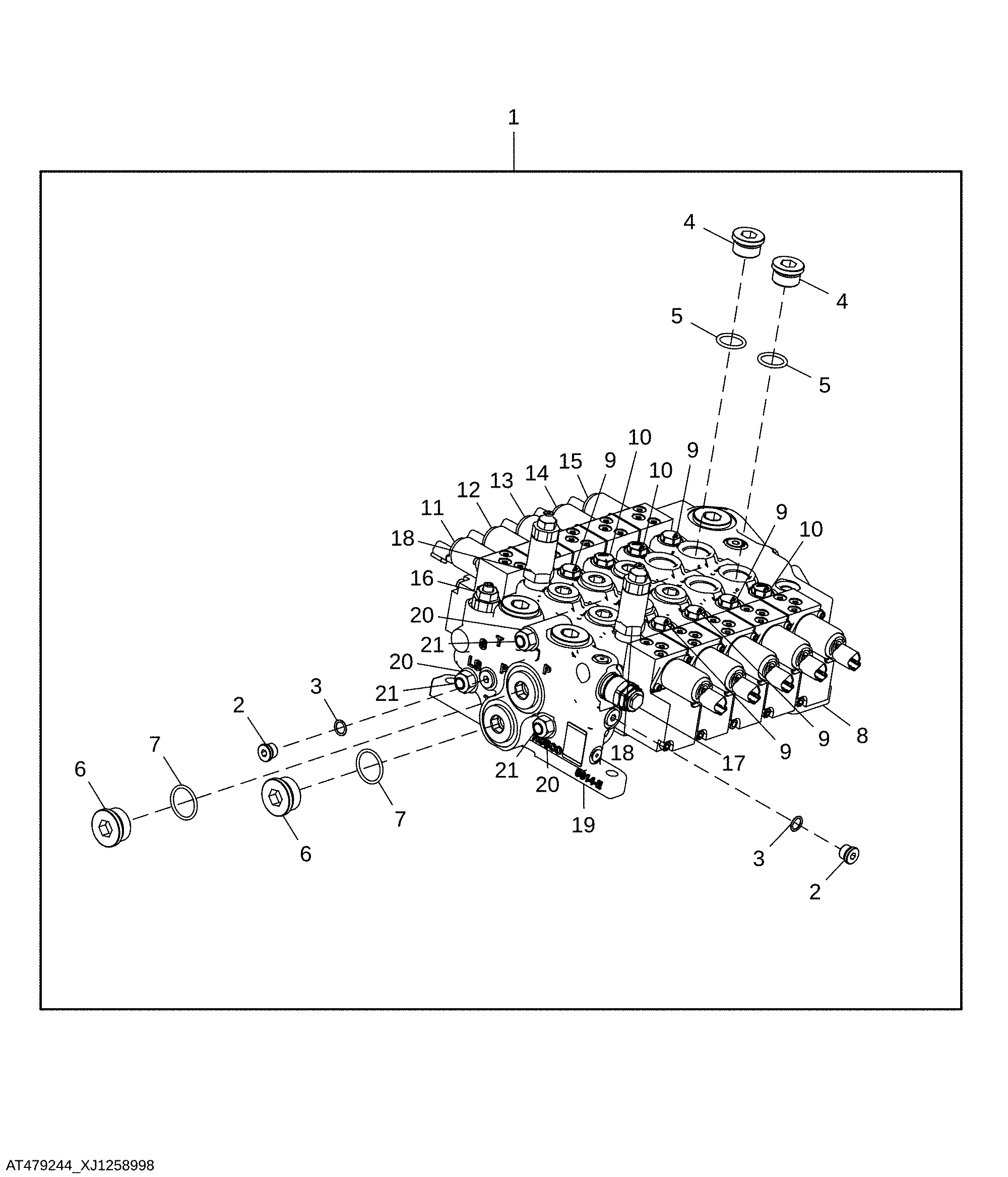

Control Valve, Winch ,Auxiliary and Dual Function Arch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT494967	1	Spool Valve	-
1	AT479244	1	Spool Valve	ORDER AT494967
1	AT521029	1	Spool Valve	-
2	64H1017	10	Drain Plug	-
3	R26448	10	O-Ring	-
4	64H1020	10	Drain Plug	-
5	U12547	10	O-Ring	-
6	64H1022	5	Drain Plug	-
7	R29936	5	O-Ring	-
8	AT415619	1	Control Valve	Outlet Section
9	AT431504	5	Pressure Relief Valve	375 Bar, INCLUDES (5) R199687
9	R199687	5	O-Ring	-
10	AT479256	3	Pressure Relief Valve	INCLUDES (3) 51M7044
10	51M7044	3	O-Ring	17.300 X 2.200 mm
11	AT448563	1	Spool Valve	Auxiliary Section Components on Separate Page, ORDER AT507383
11	AT507383	1	Spool Valve	Auxiliary Section Components on Separate Page
12	AT523914	1	Spool Valve	Winch Section Components on Separate Page
12	AT448563	1	Spool Valve	Winch Section Components on Separate Page, ORDER AT507383
12	AT507383	1	Spool Valve	Winch Section Components on Separate Page
13	AT448563	1	Spool Valve	Boom Section Components on Separate Page, ORDER AT507386
13	AT507386	1	Spool Valve	Boom Section Components on Separate Page
14	AT448563	1	Spool Valve	Tong Section Components on Separate Page, ORDER AT507383
14	AT507383	1	Spool Valve	Tong Section Components on Separate Page
15	AT448563	1	Spool Valve	Arch Section Components on Separate Page, ORDER AT507385
15	AT507385	1	Spool Valve	Arch Section Components on Separate Page
16	AT199671	1	Seal Kit	-
16	AT448567	1	Flow Control Hyd. Valve	3175 PSI
17	AT416486	1	Pressure Relief Valve	INCLUDES AT314538
17	AT314538	1	Seal Kit	INCLUDES T107887, R79060 AND R111235
17	T107887	1	O-Ring	-
17	R79060	1	O-Ring	-
17	R111235	1	Back-Up Ring	-
18	AT448566	2	Pressure Relief Valve	-
19	AT461962	1	Control Valve	Inlet Section
20	T314225	3	Tie Rod Assembly	-
21	T170269	6	Nut	-

Control Valve, Winch ,Auxiliary and Dual Function Arch
